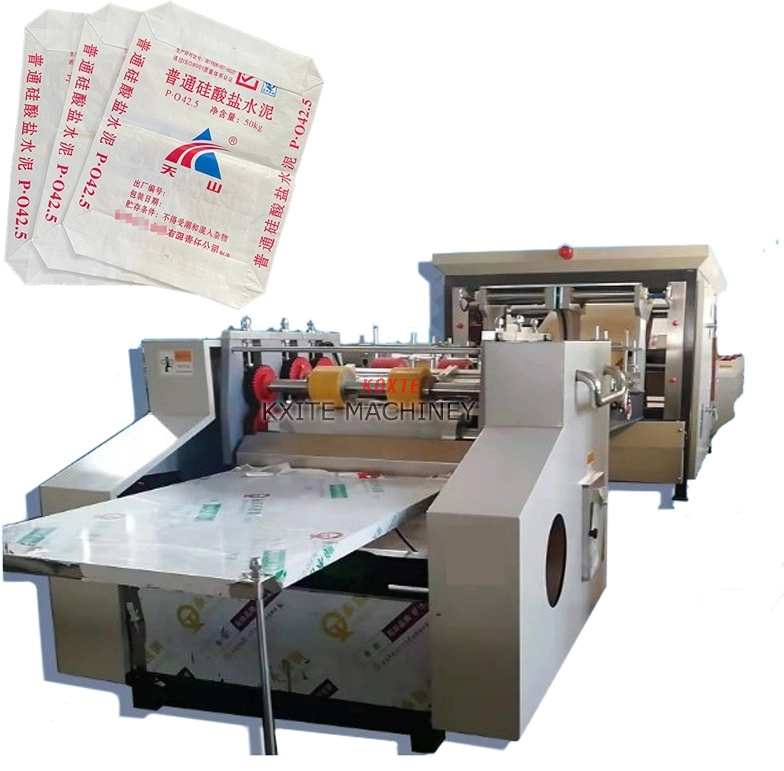

SZN-650
kxite
The tuber machine is light, electricity, gas three-in-one high automatic production technology. It's with the tech like Human-computer interface adjustment (Touch screen control), Frequency control, Precision Servo PLC programming control systems, Automatic counting, Alarming system for security production etc.

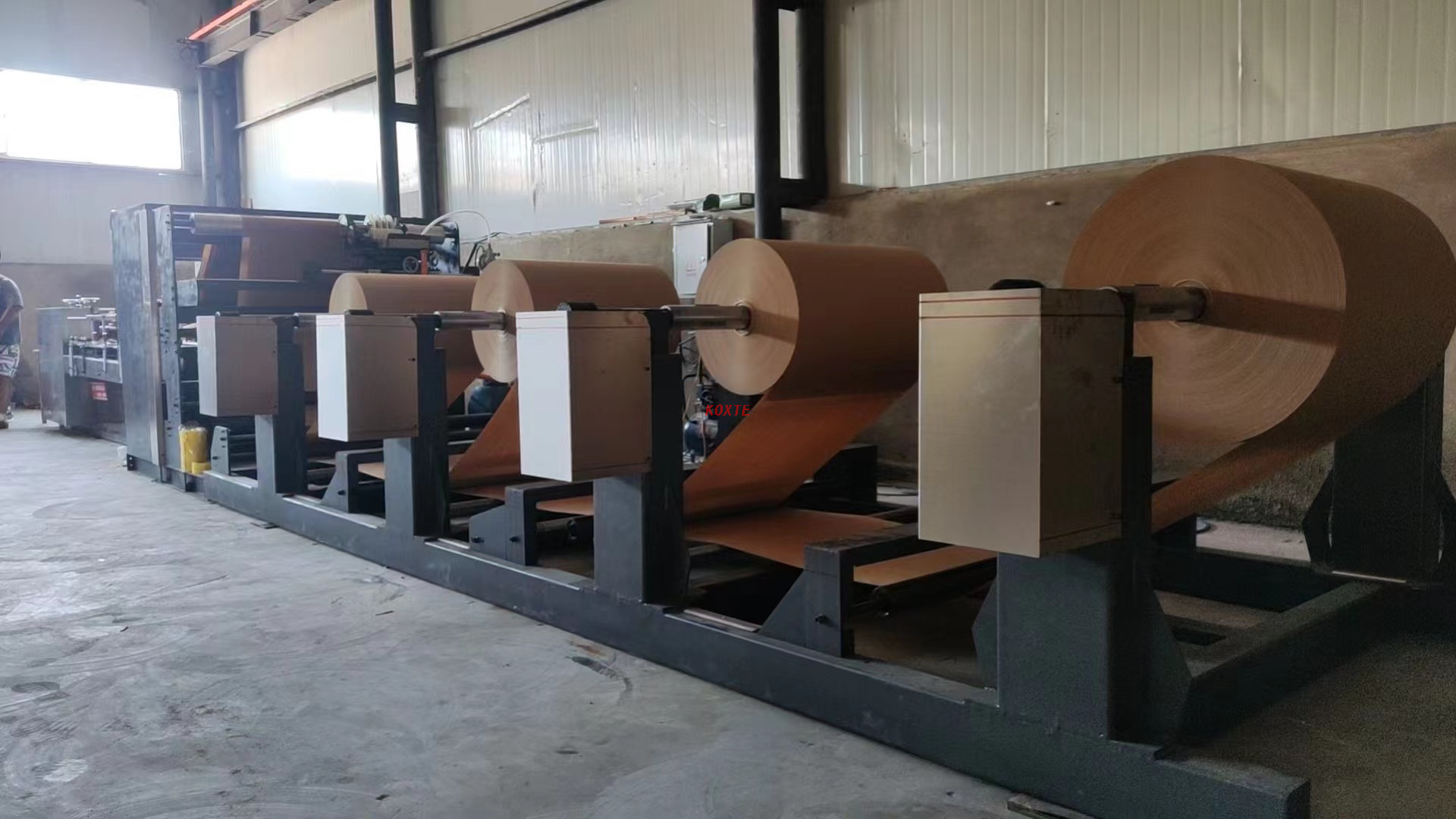

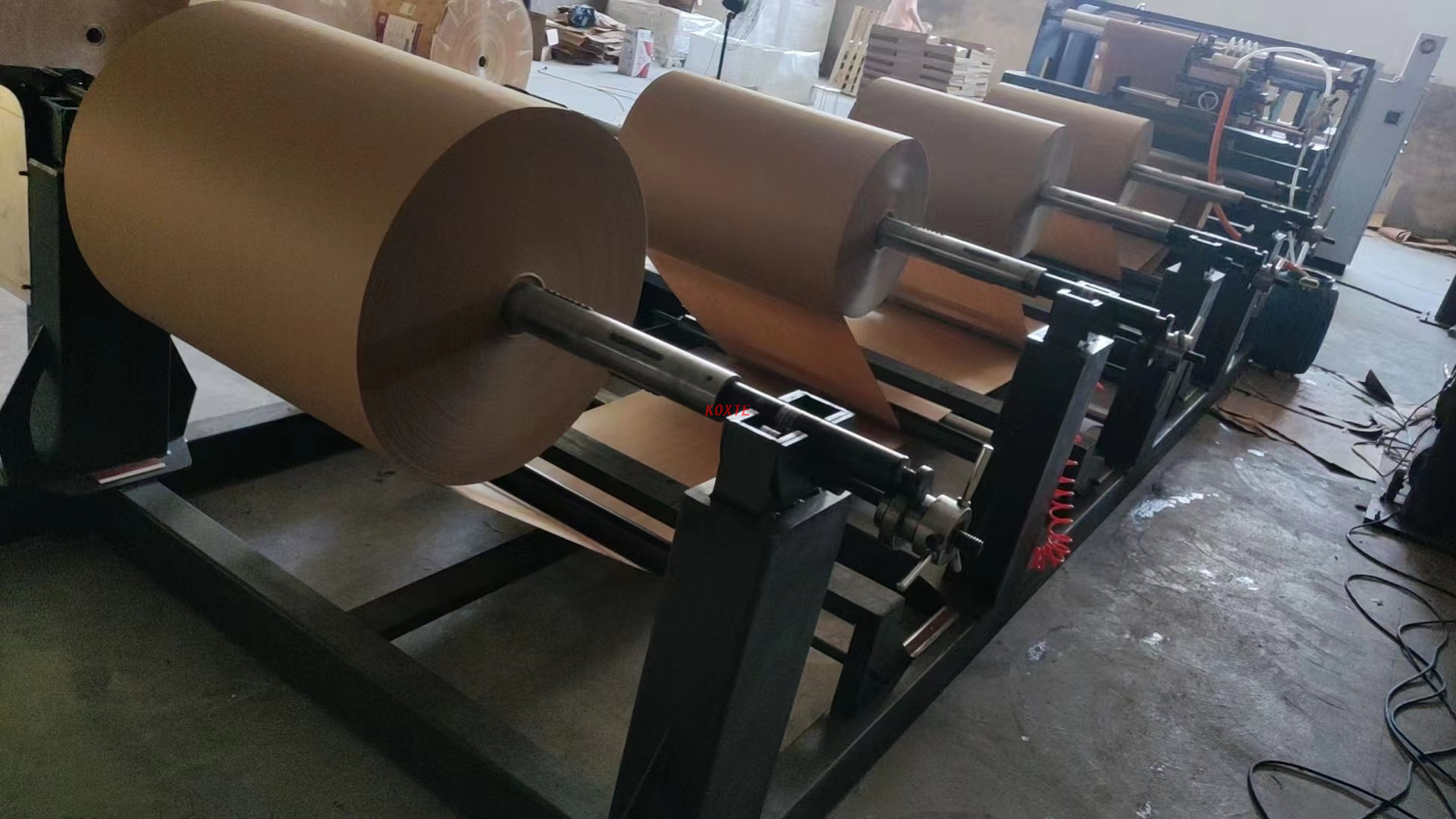

1). Paper roll feeding unit (Unwinder)
| paper roll racks | 1 group |
| Maximum width of material | 1250mm |
| Maximum diameter of feed base material. | 1200mm |
| Dimension of coil feeding roll core | innerφ76mm |
| Coil locking form | Air shaft of 74mm |
| Pneumatic core shaft | made of 45#steel with surface hard chromium plated |
2). In line printing unit
The printing machine is a Stagger flexographic printing machine. The main machine adopts frequency converter to control speed, online synchronous printing.
| Main Parameter: | |
| Machine type | 4/ 1200mm |
| Printing material | Kraft paper face |
| Maximum printing width | 1100mm |
| Maximum printing length | 300-1000mm |
| Printing speed | 10-50m/min |
| Plate thickness (including double-sided adhesive) | 3.64mm |
| Machine size | 5000*2200*2100mm |
| Discharge part | |
| Roll length | 1200mm |
| Effective printing roll length | 1000mm |
| Roll core diameter | 75mm |
| Maximum discharge diameter | 1250mm |
| Printing Part | |
| Printing composition | Ink roller,Printing roller,Anilox roller,Paper passing roller |
| Roll perimeter | Equipped with one set,( Customer determine size) |
| Printing plate material | Resin offset |
| Printing registration | 360 degree rotation |
| Chromatic accuracy | ±0.8mm |
| Heating and drying part | |
| Heating drying method | Blowing heating |
| Heating area | Four color: 8pcs |
| Heating power | 1200mm type 6kw |
| Fan power | 0.75kw |

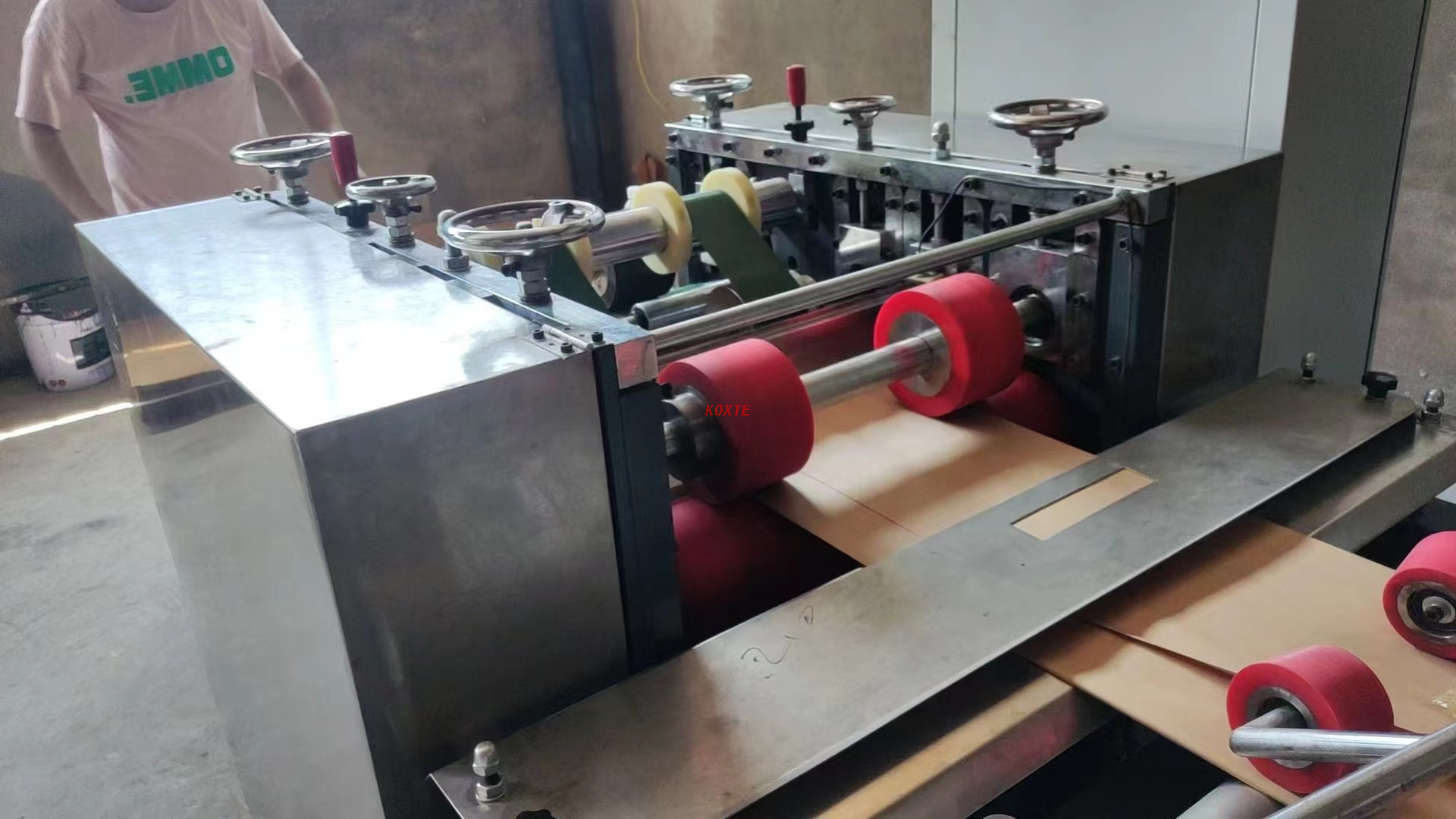

3). Tube shaping unit
(For both shaping Straight & "M" folding side tube)
a).Small rubber wheels with Screw brackets:10, to bend the paper into tube and press the raphe gluing position
b). Paper bag gusset shaping plates: 8, to shape the bag gusset ("M" paper bag side)
c).Bag gusset depth adjustment kit
d).Paper tube forming platform
4). Extruder for laminated paper central glue
| Main motor power | 5.5 KW |
| Electromagnetic speed regulation motor is adopted | |
| Heating with cast aluminum heater (Power: 6KW) | |
| Machine barrel cooling is cooled by draught fan. | |
| Intelligent temperature control automatic cabinet: Siemens | |
| Production capacity | 16kg/h |
| Adhesive material: | Mixture of PP /HDPE granules |
| Center height | 1200mm (adjustable) |
| Axial adjustable guide rail is equipped | |
| Weight | 1200kg |
| Dimensions | L 1800mm *W 1300mm *H 1700mm |
Note:
1.To make HDPE/PP laminated paper bag,you only need 1-2 unwinders
2.The bag cutting unit need equip heating cut function

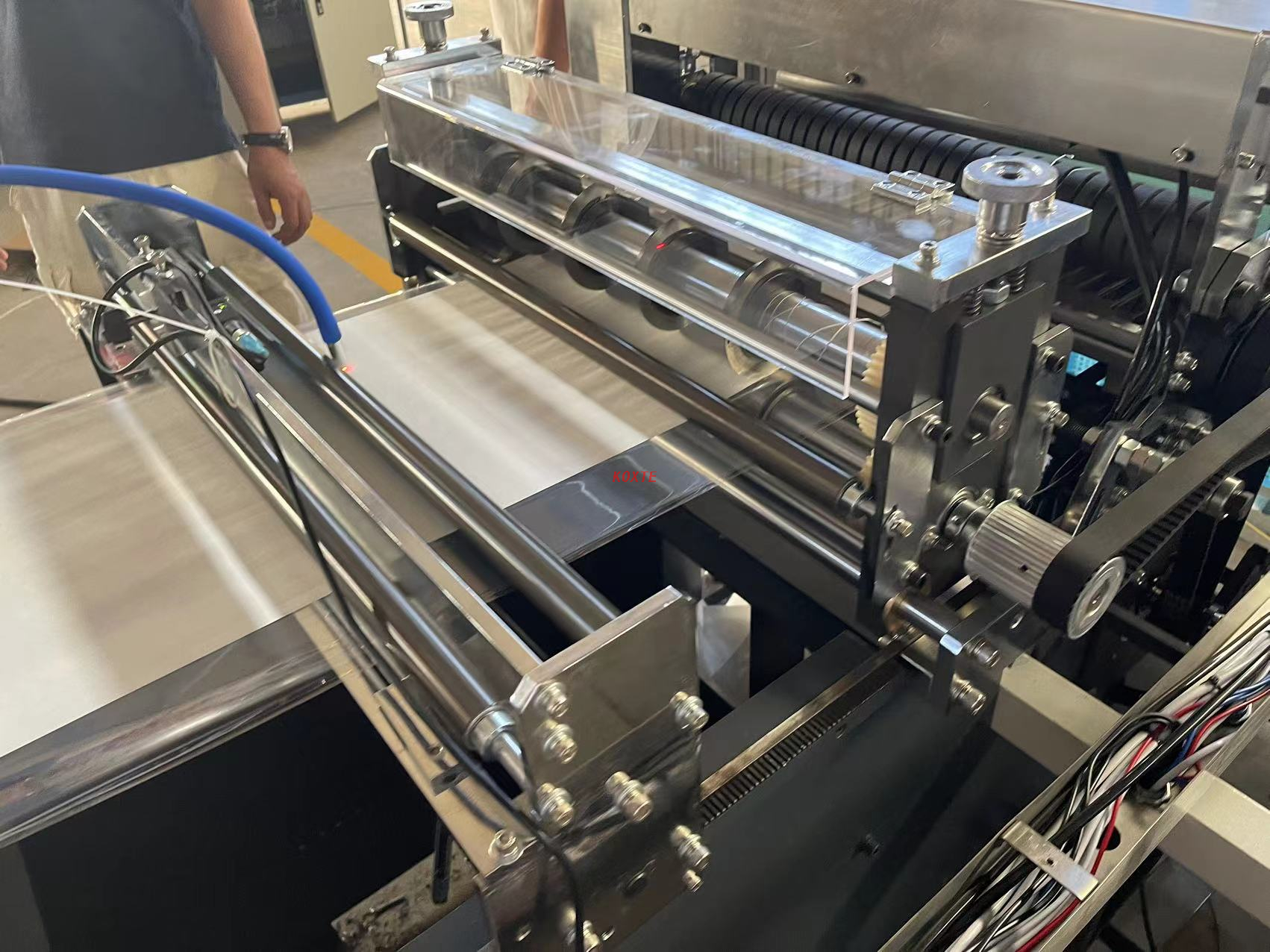

5). Cutting unit
a).Wheel cutting knife
Knife tooth pitch:3.5mm
Thickness of knife:3mm
The width of knife:40mm
Working life: about 300,000 pcs bags cutting/cutting knife
b).Color mark sensor for precision cutting
Photoesthetic count electric eye for sensing the color mark.
Photoesthetic proximity switch(Omron) guide the precision cutting on color mark
c).Automatic counting:
Another Photoesthetic proximity switch(Omron) for counting the bag No.s and the data will synchronously displays on touch screen.
d).Traction roller
e)Adjustable collecting table
The cutting unit is consisted of traction system, servo cutting system (Sensing precision cutting), rubber wheels pressing unit, heating cutting, automatic counting etc.
6).Equipment control unit
a). Electric cabinet
b). Touch screen control (language:English and Chinese, chromatic screen)
The tuber machine is light, electricity, gas three-in-one high automatic production technology. It's with the tech like Human-computer interface adjustment (Touch screen control), Frequency control, Precision Servo PLC programming control systems, Automatic counting, Alarming system for security production etc.
1). Paper roll feeding unit (Unwinder)
| paper roll racks | 1 group |
| Maximum width of material | 1250mm |
| Maximum diameter of feed base material. | 1200mm |
| Dimension of coil feeding roll core | innerφ76mm |
| Coil locking form | Air shaft of 74mm |
| Pneumatic core shaft | made of 45#steel with surface hard chromium plated |
2). In line printing unit
The printing machine is a Stagger flexographic printing machine. The main machine adopts frequency converter to control speed, online synchronous printing.
| Main Parameter: | |
| Machine type | 4/ 1200mm |
| Printing material | Kraft paper face |
| Maximum printing width | 1100mm |
| Maximum printing length | 300-1000mm |
| Printing speed | 10-50m/min |
| Plate thickness (including double-sided adhesive) | 3.64mm |
| Machine size | 5000*2200*2100mm |
| Discharge part | |
| Roll length | 1200mm |
| Effective printing roll length | 1000mm |
| Roll core diameter | 75mm |
| Maximum discharge diameter | 1250mm |
| Printing Part | |
| Printing composition | Ink roller,Printing roller,Anilox roller,Paper passing roller |
| Roll perimeter | Equipped with one set,( Customer determine size) |
| Printing plate material | Resin offset |
| Printing registration | 360 degree rotation |
| Chromatic accuracy | ±0.8mm |
| Heating and drying part | |
| Heating drying method | Blowing heating |
| Heating area | Four color: 8pcs |
| Heating power | 1200mm type 6kw |
| Fan power | 0.75kw |
3). Tube shaping unit
(For both shaping Straight & "M" folding side tube)
a).Small rubber wheels with Screw brackets:10, to bend the paper into tube and press the raphe gluing position
b). Paper bag gusset shaping plates: 8, to shape the bag gusset ("M" paper bag side)
c).Bag gusset depth adjustment kit
d).Paper tube forming platform
4). Extruder for laminated paper central glue
| Main motor power | 5.5 KW |
| Electromagnetic speed regulation motor is adopted | |
| Heating with cast aluminum heater (Power: 6KW) | |
| Machine barrel cooling is cooled by draught fan. | |
| Intelligent temperature control automatic cabinet: Siemens | |
| Production capacity | 16kg/h |
| Adhesive material: | Mixture of PP /HDPE granules |
| Center height | 1200mm (adjustable) |
| Axial adjustable guide rail is equipped | |
| Weight | 1200kg |
| Dimensions | L 1800mm *W 1300mm *H 1700mm |
Note:
1.To make HDPE/PP laminated paper bag,you only need 1-2 unwinders
2.The bag cutting unit need equip heating cut function
5). Cutting unit
a).Wheel cutting knife
Knife tooth pitch:3.5mm
Thickness of knife:3mm
The width of knife:40mm
Working life: about 300,000 pcs bags cutting/cutting knife
b).Color mark sensor for precision cutting
Photoesthetic count electric eye for sensing the color mark.
Photoesthetic proximity switch(Omron) guide the precision cutting on color mark
c).Automatic counting:
Another Photoesthetic proximity switch(Omron) for counting the bag No.s and the data will synchronously displays on touch screen.
d).Traction roller
e)Adjustable collecting table
The cutting unit is consisted of traction system, servo cutting system (Sensing precision cutting), rubber wheels pressing unit, heating cutting, automatic counting etc.
6).Equipment control unit
a). Electric cabinet
b). Touch screen control (language:English and Chinese, chromatic screen)
