Kxite Machinery Honeycomb Paper Bag Making Machine

Honeycomb Paper Envelope Bag Making Machine

We can also provide non-standard equipment production and new product development services according to customer requirements. According to the customer's picture of the paper bag to be produced, the purpose of the product to be purchased, the environment, the purchase volume and other related conditions, we will recommend several cost-effective products for the customer to choose.

How To Answer Technical Guidance

For some customers who need non-standard equipment, we will communicate with the company's relevant technical personnel according to the customer's specific requirements, taking into account the technical feasibility and production costs, and give customers solutions.

Alisa@kxite.com

+86-136-2587-3008

Honeycomb Packing Paper Cutting Bag Making Machine

1. This machine is special designed for making bags which laminate the Kraft paper and Honeycomb paper by glue.

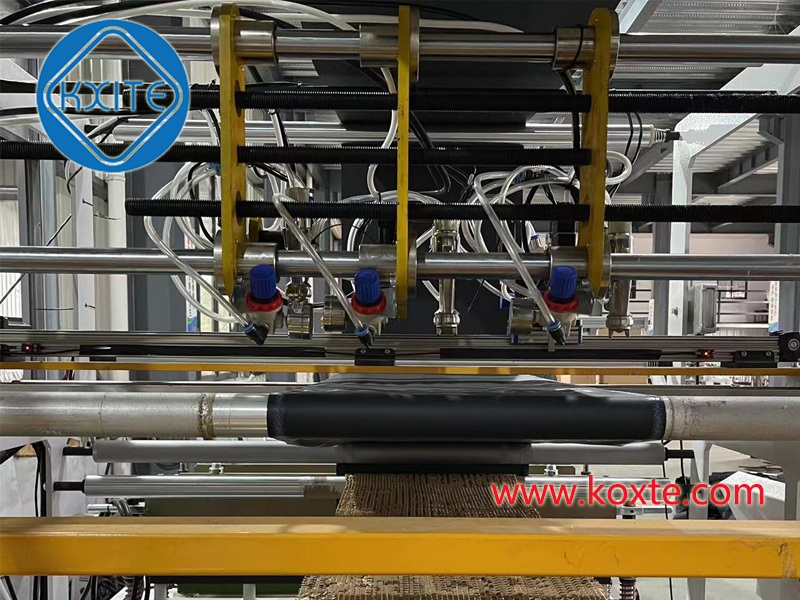

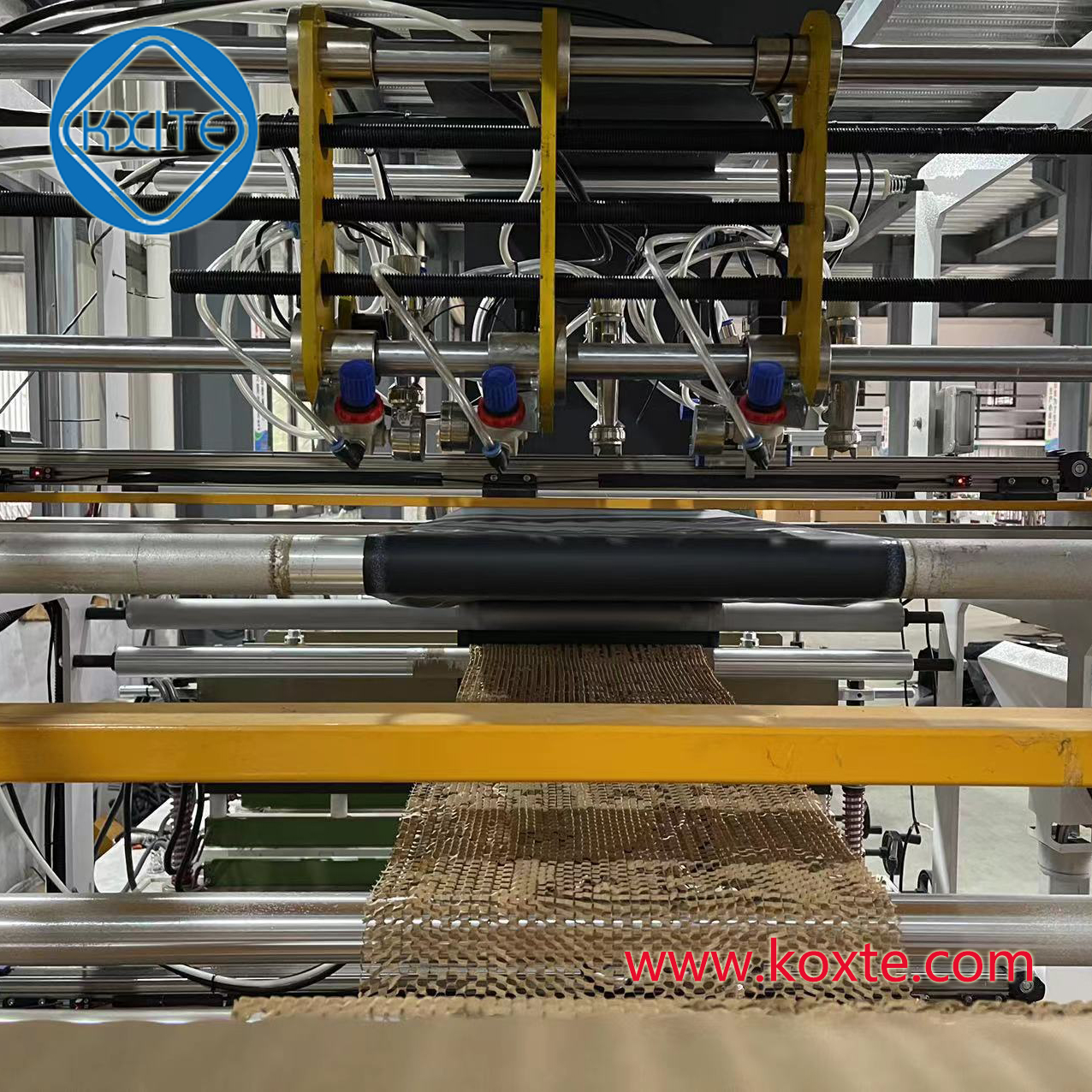

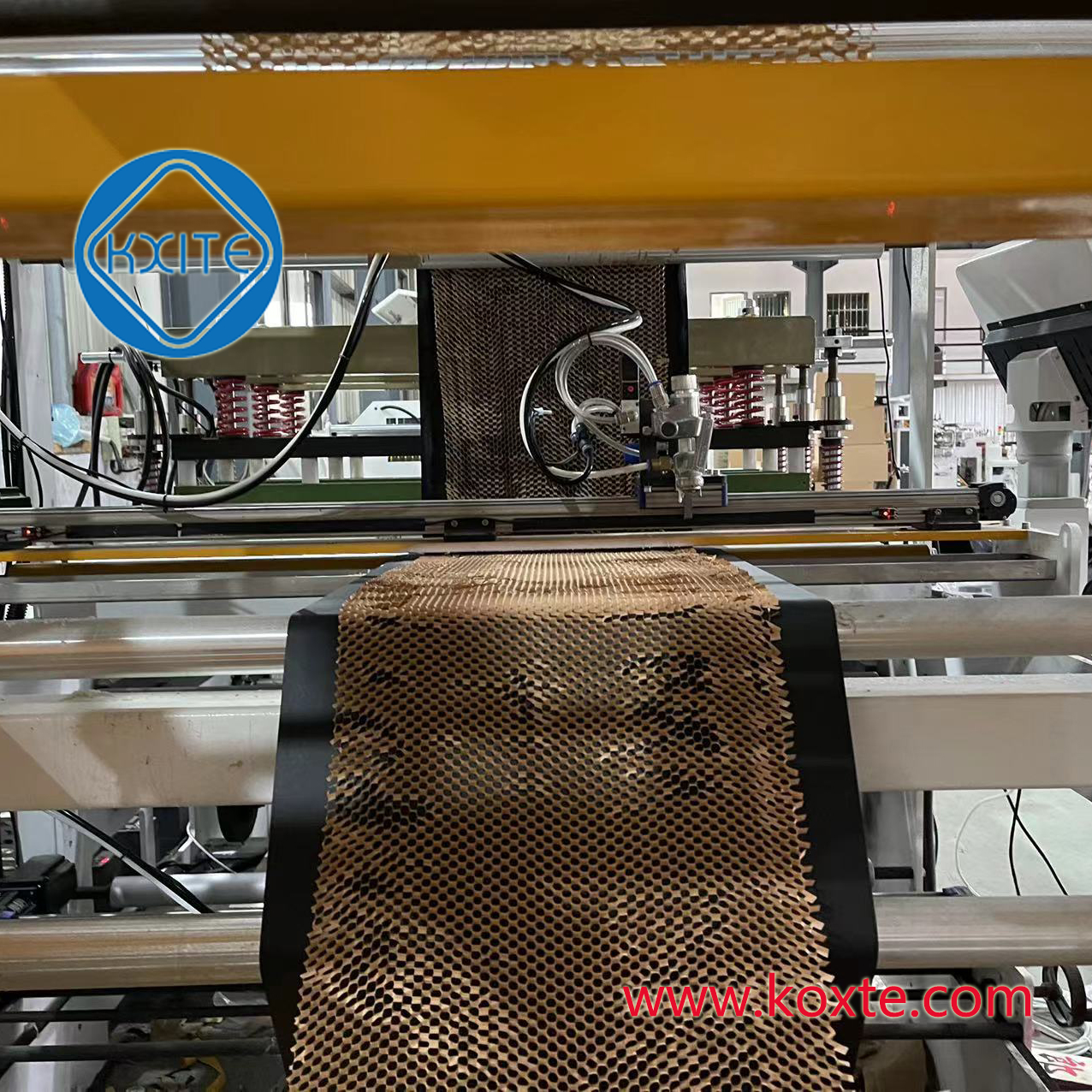

2. Bag making method: Fixed the Kraft paper and honeycomb paper (by stretching) into two layers of Kraft paper by fixed point glue spraying method, and then by, second gluing, folding and cutting into a environmentally cushion bag which used in express industry.
3. This machine uses multi point advanced motion controller technology. It is controlled by computer program from film unwinding to cutting. This machine is a high-quality, easy-operational and professional one to make good-looking a, durable and environment-friendly bags.

Tell Us Your Request

Machine Video

Brief Introduction

1. The surface paper (Outside Kraft paper) and the inner side paper must be 110g/m² Kraft paper.

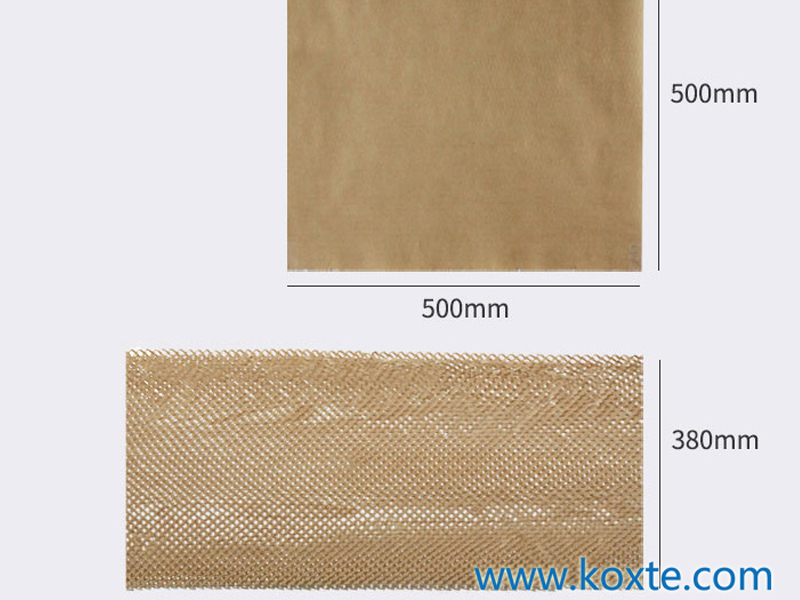

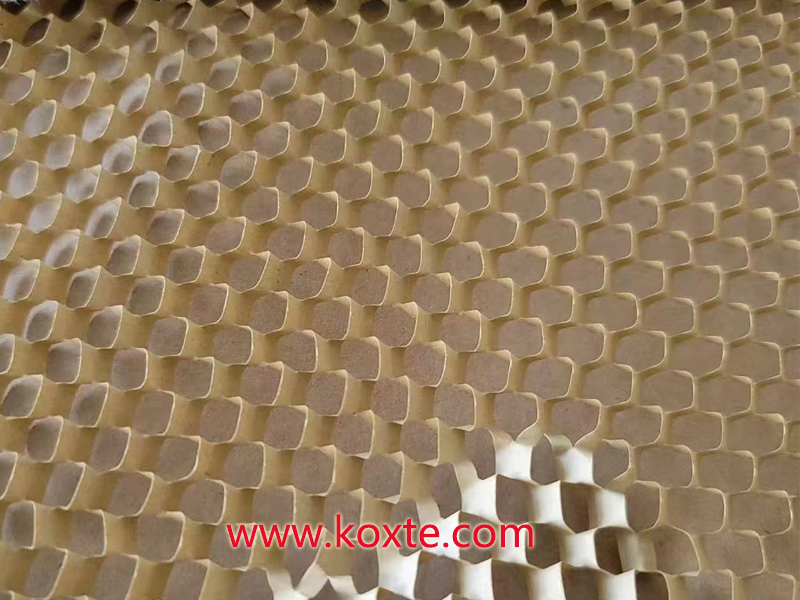

2. Because of the original honeycomb paper width is under 500mm, when making different size of bags, have to lap joint the redundant paper in the middle.
3. The glue for heat seal after folding can be provided by our company.

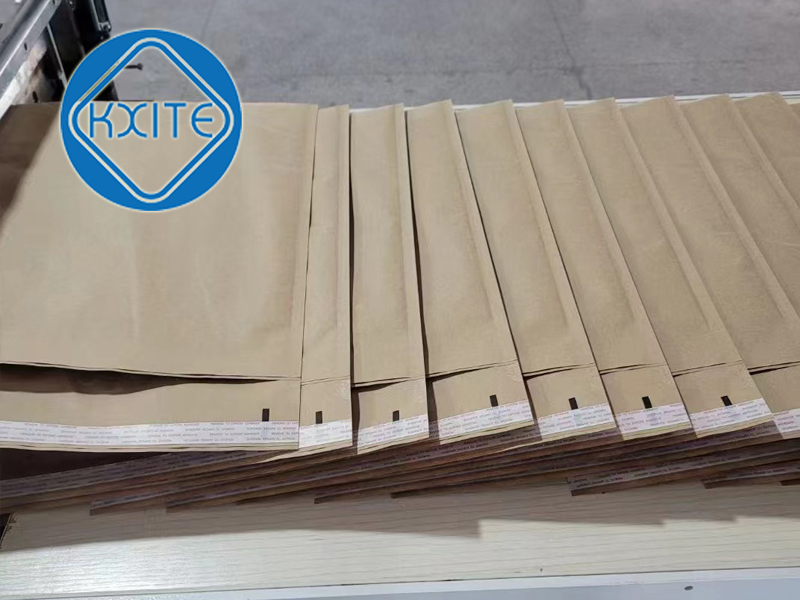

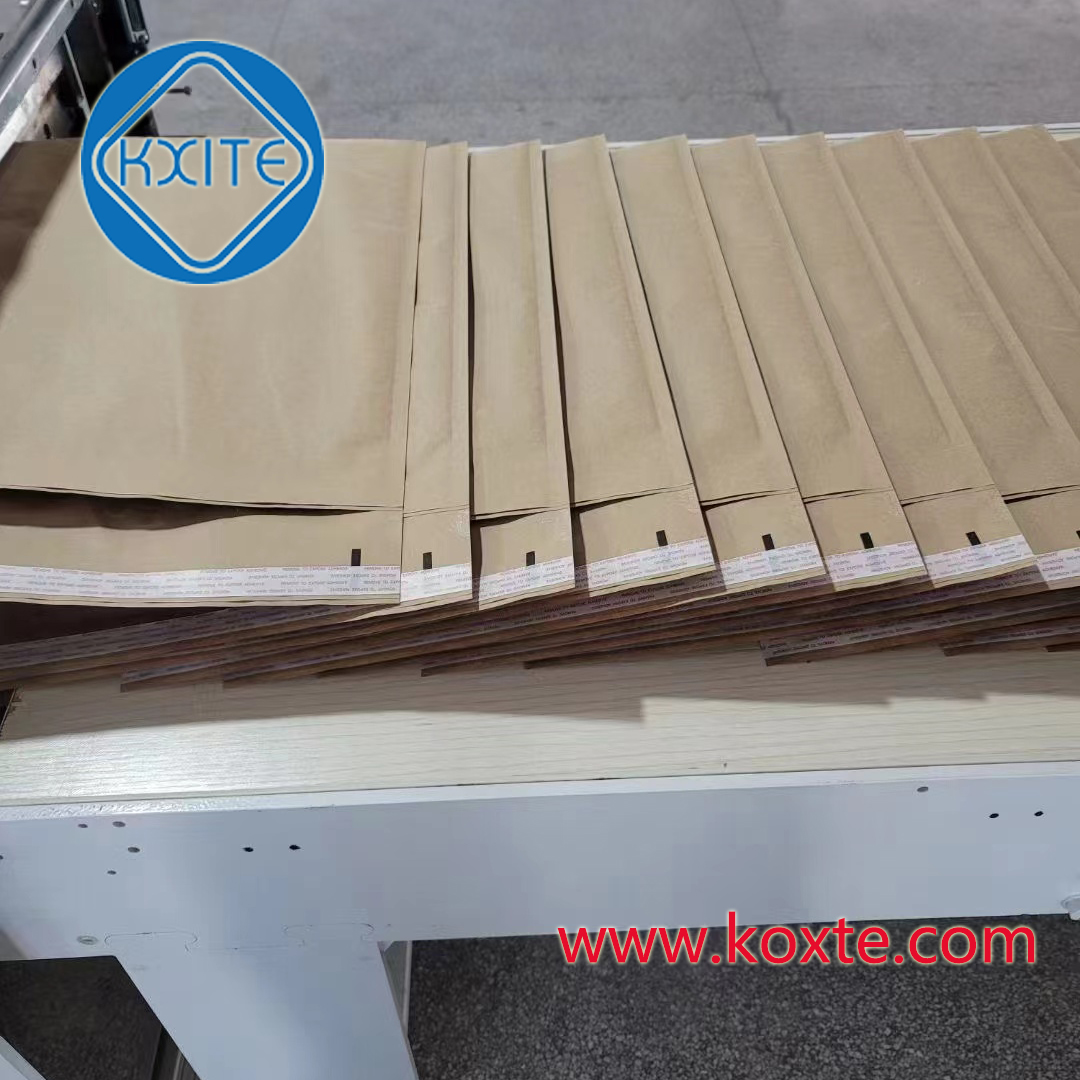

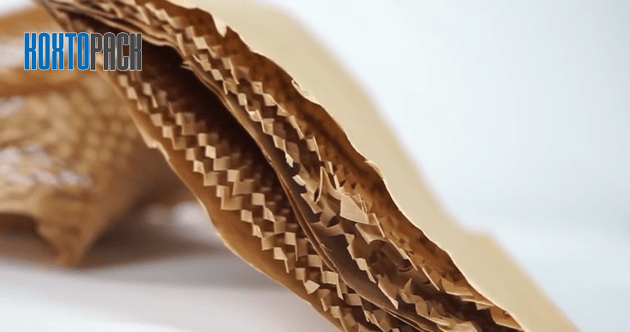

Honeycomb Paper Bag Samples

Advice Your Requirements

Technical Parameters

Suitable bags	profession0al designed for honeycomb cushion bags
Mechanical speed	1000-1500pcs/hour
Mechanical speed	Note: the actual speed of making bags may differ according to the size of bags)
One line	550mm (including the envelope flap)
Double line	300mm (including the envelope flap)
Maximum length of bag (width of bag)	500mm
Maximum width of unwinding	Kraft paper: 1200mmX2, honeycomb paper 500mmx4
Maximum diameter of unwinding	Kraft paper 1000mm, honeycomb paper 500mm
Machine weight	17000KGS
Overall Dimension	30000X2300X2400mm
Power required	60KW
Voltage	380V 50Hz Three Phase Five wire
Steel machine body

Honeycomb paper courier bag making machine
