Why do we need Air Bubble / Air Column quilt film
Air bubble film packaging, also known as bubble wrap, is a common packaging material used in online sales for several reasons:
Protection: Air bubble film packaging provides excellent cushioning and shock absorption, helping to protect the item being shipped from damage during transit. It can also help prevent scratches, dents, and other types of damage.
air pillow bag roll making machine air pillow bag roll making machine
h-2 air column bag making machine
Air Cushion Film bag making machine Air Cushion bag making machine
Total Solutions for All Your Packing Needs in E-Commerce
We are just the all-in-one machine manufacturer you needed for: honeycomb paper, embossed paper, eco-friendly padded mailer envelopes, air bubble quilt sheets, air column bags, ice bags and more…,

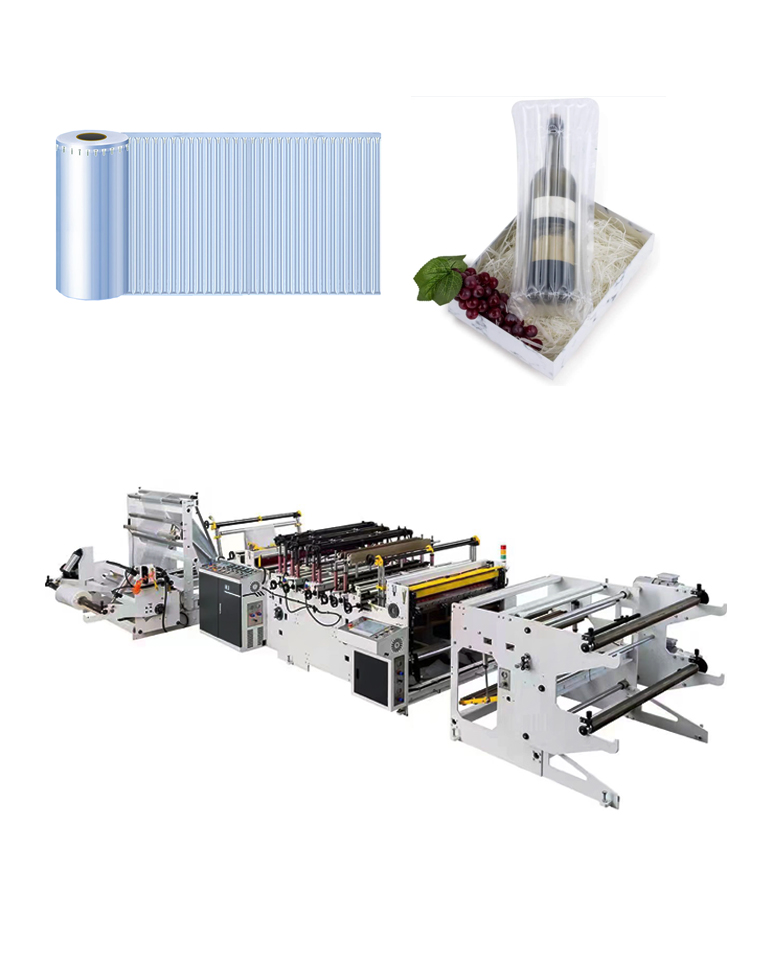

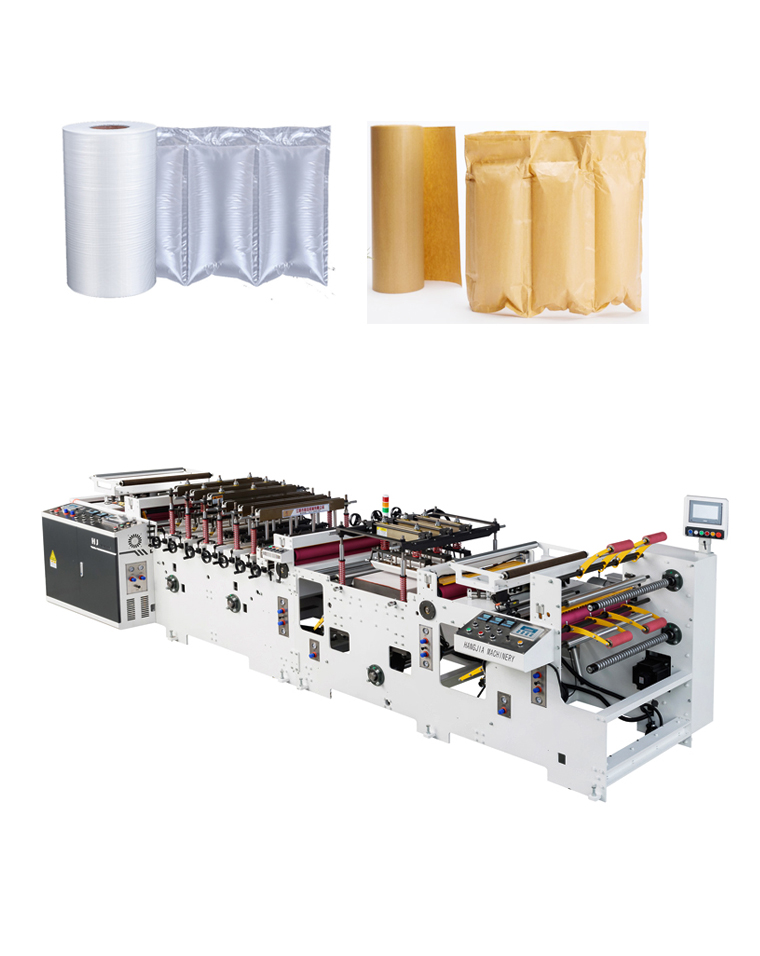

What Are Air Column Bags?
Column bag machines have emerged as a revolutionary packaging technology nowadays. It uses natural air as a means of protection. This new packaging solution effectively reduces product loss due to transportation.
The air column bag is made of co-extruded LDPE+15%PA (PA=Nylon) films and offers excellent watertight and moisture-proof properties.
Unlike conventional packaging materials, air-filled bags provide 360-degree 3D comprehensive protection. It significantly mitigates the risk of product damage during transit.
It is designed with multiple air columns that can be individually fastened after inflation. Even if one air column fails, the remaining air columns provide continued protection.

SUBSCRIBE

JOIN OUR NEWSLETTER

  • A+B Buffer Air Column Bag Forming Machine
    Model buffer air column A machine
    Max. film width 1200mm
    Film thickness 0.02-0.20+mm
    Suitable material PE co-extrusion film, PE low-pressure film, etc.
    Forming speed 18-36m/min（The speed is related to the thickness of the film and the material）
    Air valve film sealing pressure 7560n
    Column channel sealing pressure 395mm
    Max. feeding film roll diameter Φ600mm
    Max. winding film roll diameter Φ600mm
    Feeding&winding air shaft diameter Φ74mm
    Air pressure 0.6-0.8MPa
    Air consumption 0.8m3/min
    Machine noise 55db
    Rated power 18KW
    Power supply AC 380V, 50Hz three-phase four-wires
    Machine weight 3.8T
    Dimension L6860*W1800*H1900mm

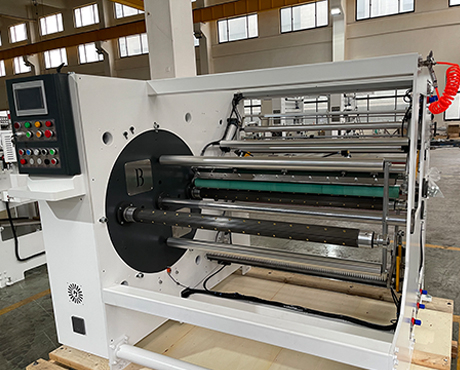

  • Buffer Air Column Bag B Machie
    Model buffer air column bag B machine
    Max. Film Width 1200mm
    Max. Bag Width 800mm
    Max. Film Roller Diameter Φ600mm
    Shafts Diameter Φ74mm
    Film Material PE co-extrusion film
    Bag Making Speed 60-120 Times/Min (Depending On Different Design
    Edge Seal Sealing Pressure 2000N
    Edge Seal Width 600mm
    Power Supply Ac 380V，50Hz Three-Phase, Four-Wires
    Machine Noise 55db
    Air Pressure 0.68Mpa
    Air Consumption 0.8m3 /Min
    Rated Power 5kw
    Weight About 2.8T
    Dimension L3980*W1300*H1800mm
