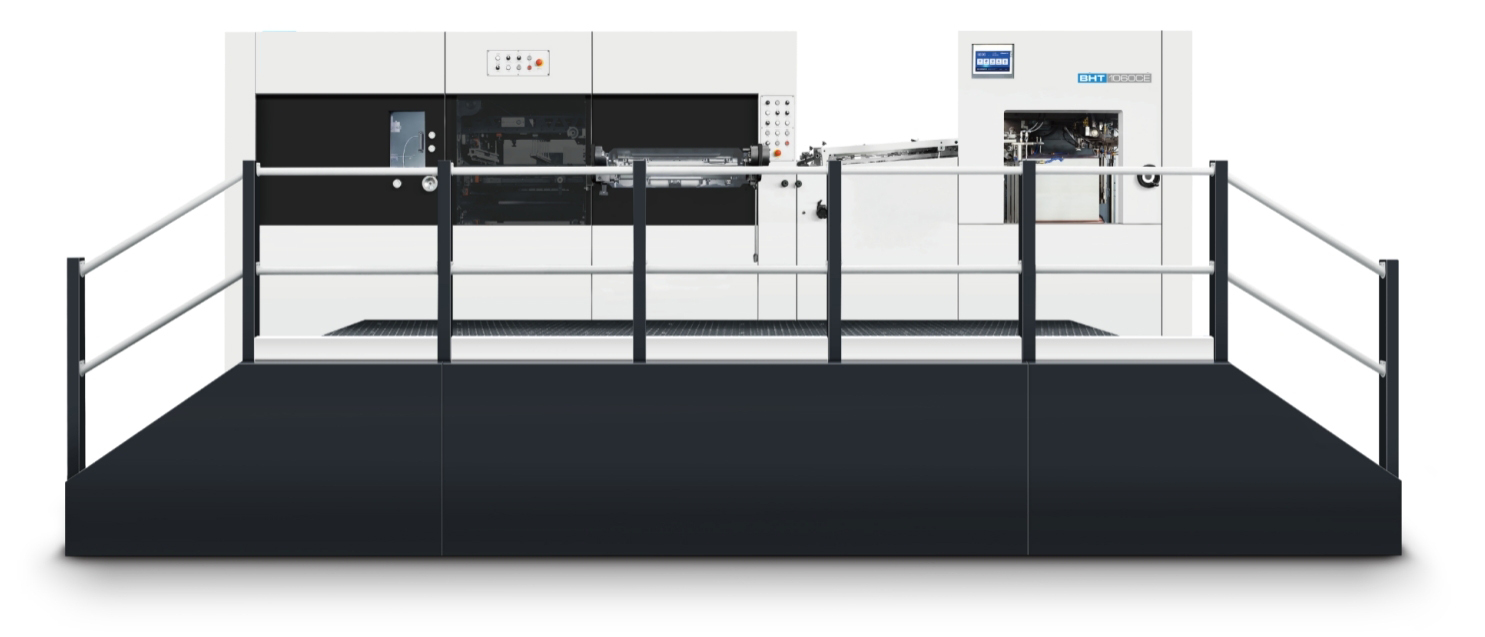

BHT-1060CE Automatic Flatbed stripping Die Cutting Machine&Creasing Machine
Equipped with high-end imported feeder with high accuracy and stability, can fit paper of different thickness. ★ The wall plate is stable cast iron, low vibration while high speed running. ★ Integrated feeding table adjustment: accurate, fast and stable. ★ The conveyor table is made of stainless steel diamond plate, has better appearance, higher durability, and low resistance. ★ Imported thin feeding conveyor, high durability. ★ Enhanced chain wheel and driving wheel ensures high speed running. ★ At the delivery section, the brushes can be adjusted outside, makes the adjustment more convenient. ★ Delivery section blowing system, ensure that thin paper can be delivered neatly under high speed running. ★ Ball screw automatic pressure adjusting system. ★ Dual-path lubrication system ensure the safety lubrication. ★ Use synchronous belt for the cam box, torque limit controller is equipped. ★ Non-stop feeding device, pre-load device and auxiliary delivery device, reduce the working time and improve the efficiency. ★ Die cutting chase and plate mechanism, human friendly design, make plate loading, make ready more convenient. (Chase preload device is optional.) ★ Fine tuning device for front lay, side lay and conveyor, makes positioning more accurate. ★ HMI can monitor the running condition, parameters, makes the adjustment and troubleshooting more convenient. ★ The automatic lubrication oil feeding system ensures the long durability. ★ 4 side stripping unit.
APPLICATION
Feeder(4 suction and 6 delivery)
Non-stop high-speed paper feeding section. Fish-scale powerful suction feeder head with 4 suction and 6 delivery. The suction head can be adjust to various suction angles according to the deformation of the paper. Adjustable suction blower, suction head and air separation valve processed with ultra-hard alloy. Triple feeder head anti-collision device. Horizontal paper separation blower. The main and auxiliary stacking tables alternate without stopping, ensuring non-stop feeder operation. Electrical left/right fine-tuning device for the main feed pile. Pre-stacking device with rails for accurate & convenient paper loading. The paper alignment adjustment device can manually adjust the distance before the paper reaches the gauge without stopping the machine. Large inclined paper table, suitable for high-speed conveying of thin paper and curved paper. Blow-suction dual-purpose vacuum pump of German Becker brand.
Paper conveying unit

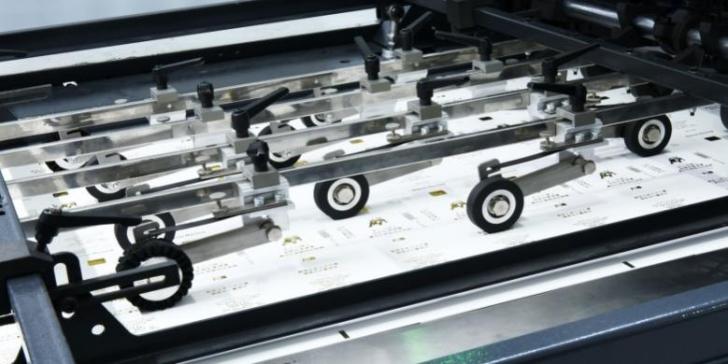

Slowdown mechanism for sheet feeding at the front gauge. Ultrasonic double sheet detection system with effortless calibration, precise operation, and protection against surface scratches. Four front gauges can be adjusted individually. Paper pressing device feeds warped sheets smoothly to the front gauge. Push-pull dual-purpose side gauges, one set for the operation side and one set for the transmission side. Side gauges can be adjusted between push-pull gauges to meet different paper requirements. Photoelectric detection on both side and front gauge. Imported paper feeding belts and stainless steel conveying plates. Pneumatic lifting device for paper feeding frame. PLC and electronic cam control the timing of the whole machine. If the paper is not in place, the system can force the gripper to open and close.
Variable speed worm gear drive device
The entire machine casting is made of QT-700-2 nodular cast iron. The variable-speed worm gear transmission mechanism features a short die-cutting stroke and a large moving angle, which is conducive to the high-speed operation of small connection points in multiple impositions. It has high production efficiency and is not prone to the scattering of the imposed layout. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface. SIEMENS (INNOMOTICS) brand main motor. Japan SMC air pressure detection device with low-pressure alarm. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine. A complete set of high-tech carbon fiber gripper bars and positioning structure, fine steel small gripper teeth and supporting gripper plates. The gripper bars adopt an adjustable gripper bar structure.
Die-cutting chase with quick locking devic
Die-cutting base plate and die mould rotary device. The 15mm die-cut steel backing plate is equipped with a 5mm combined lower backing plate. Center positioning structure +/-0.9mm vertical and horizontal fine-tuning device makes plate changing fast and simple, reducing the time for plate replenishment. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, combined with a central positioning system for fast and precise plate changing. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation. Die-cutting chase automatic push-pull mechanism. Die-cutting chase quick locking device. Auto lubrication system The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil. Main Machine(refrigeration) cooling and lubrication mechanism Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.
Advanced plate quick locking device
Three-frame and four-side stripping system Upper waste transmission mechanism. Users can choose whether to use the stripping function by lifting upper stripping frame. The upper stripping frame adopts pneumatic quick lock device. Pull-out drive mechanism with quick locking function for intermediate negative stripping frame. The installation of the middle stripping board adopts the center line quick positioning installation method, and the stripping board can be quickly installed. The upper and lower frames operate while the middle frame remains stationary so there are fewer connection points, and the plate is not prone to coming apart. Center positioning is adopted for the lower stripping frame. Lower stripping transmission mechanism. High efficiency and smooth CAM movement curve drives large moving angle stripping and full stripping tools to ensure stripping at high speed. Stripping frame has micro-adjustment device with digital display. Stripping gripper bar positioning device. Funnel type waste collection device. Gripper margin stripping device The gripper stripping device can automatically convey gripper waste edges out of the machine and, with the stripping slideway, they can automatically slide into the main stripping channel.
Non-stop roll-up curtain type paper delivery device
Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery. Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper. Paper delivery alignment device. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up.. The delivery section can control the machine through a 7” touch screen. The two-way auxiliary air blowing for paper delivery and the manual sampling mechanism make the operation convenient. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steering of the gripper bar, and maintain the balanced tension of the chain
Electrical unit
Germany Siemens PLC control system. The die-cutting unit and the delivery unit adopt 10.4-inch and 7-inch Germany Siemens touch screens. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action.
At Kxite, you can expect satisfactory customer service with long tradition. We are highly devoted to the most optimal solid and liquid separation solutions to meet your specific needs. We have the effective service system to ensure professional and flexible management of any affairs. 1. Pre-sales technical consultation 2. Model selection 3. Machine guidance 4. Operation & maintenance training 5. Maintenance service 6. Quick supply of spare parts 7. Customer satisfaction track
Max. Sheet Size : 1060×760mm Min. Sheet Size : 400×350mm Max. Cutting Size : 1060×745mm Min. Gripper Margin: 9-17mm Min. Width Of Cuts: 10-18mm Cutting Rule Height: 23.8mm Inner Chase Size : 1080×790mm Stock Range Cardboard: 80-2000g/m²,0.1-2mm Corrugated board: ≤4mm Die Cutting Accuracy : ≤±0.075mm Max. Die Cutting Force: 300T Max. Working Speed : 9000s/h Max. Feeder Pile Height: 1630mm Max. Delivery Pile Height : 1480mm Main Motor Power : 15KW Full Load Wattage : 24KW Air Requirement : 0.6-0.7MPa，≥0.37m³/min Net Weight Of Machine: 21T Machine Dimensions(L×W×H): 7715×4466×2301mm
