Automatic Paper Label Tags Box Waste Paper Stripping Machine

1. Taking out finished product after die cutting process,for waste stripping.
2. Applied for many die-cut products such as labels, hang tags, business cards, gift box, food box, paper cups and other die cutting products in paper or plastic, PU leather.
3. PLC controlled with smart & easy operation.
4. Automatic lubrication system for machine better maintenance.
5. Different shape products can be custom-made as customer requirement.
Machine Size:
Max sheet size (X x Y) :
Min sheet size (X x Y):
Max pile height :
Min pile height:
Work table height :
Max product size to be punched out:
Availability:
Quantity:
  • 1080TRP

  • KOXTE

  • 8441309000

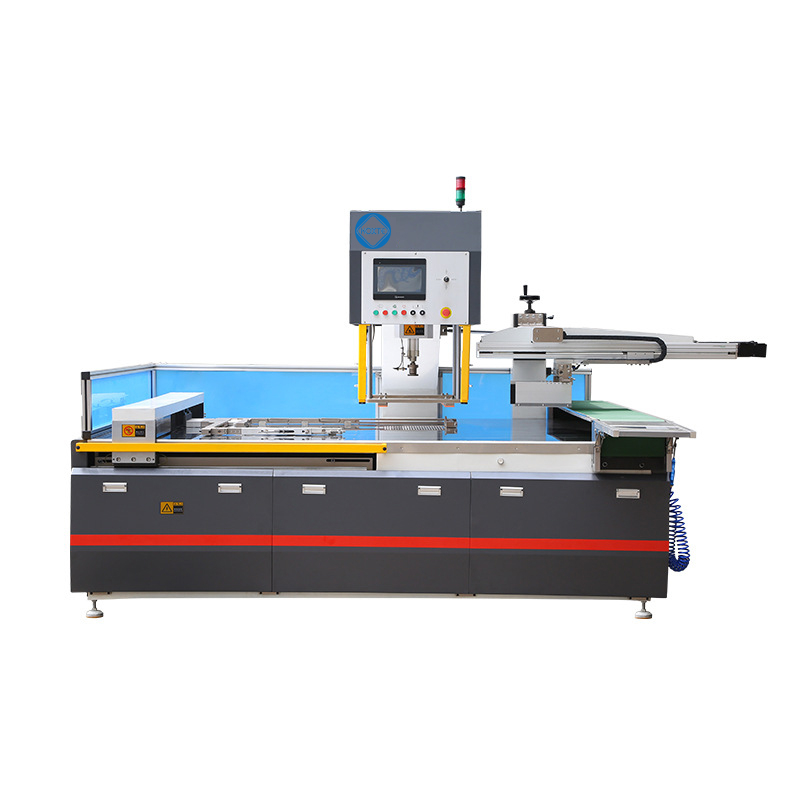

Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency of die-cutting products in paper or plastic materials. It applies to print & pack industrial, post-press, after paper creasing and die cutting.This stripper machine make your scrap removal efficient after the die-cutting process. The die-cut strip machine applies to the production lines of hang tags, paper box, paper cup, food box, plastic box, and so on.

1. Taking out finished products after die cutting process,for waste stripping.
2. Applied for many die-cut product such as labels, hang tags, business cards,  gift boxes, food boxes,
paper cups and other die cutting products in paper  or plastic, PU leather.
3.Automatically taking out product with manipulator arm and stack product  onto delivery belt.
4. Rotary head of stripping to take out the opposite direction die cutting products easily .
5. Collection station to remove the products off the machine automatically.
6. PLC controlled with smart & easy operation.
7. Automatic lubrication system for machine better maintenance.
8. Different shapes can be custom-made as customer requirement.

Sample:

333workshop3355


Model
QDQF-920TRP
QDQF-1080TRP
Machine Size
L4200 x W2800 x H1950
L4600xW3000xH1950
Max sheet size (X x Y) mm
920 x 680
1080 x 780
Min sheet size (X x Y) mm
550 x 400
650 x 450
Max pile height / mm
100
100
Min pile height / mm
40
40
Work table height mm
850
850
Max product size to be punched out
360 x 360
390 x 390
Min. product size to be punched out
30*30
30*30
Stripping speed times/min
15-22
15-22
Max. force (bar)
70
70
Air consumption L/min
5
5
Manipulator Grip Range /mm
30-280
30-300
Manipulator Grip Weight
50-1500g
50-1800g
Max Power
6.9kw 380V
6.9kw 380V
Net Weight
3.4T
3.8T
Package Size
2000x1800x1900
2000x1800x1900
2700x1950x2250
3100x2250x2250
Gross Weight
3.6T
3.6T
