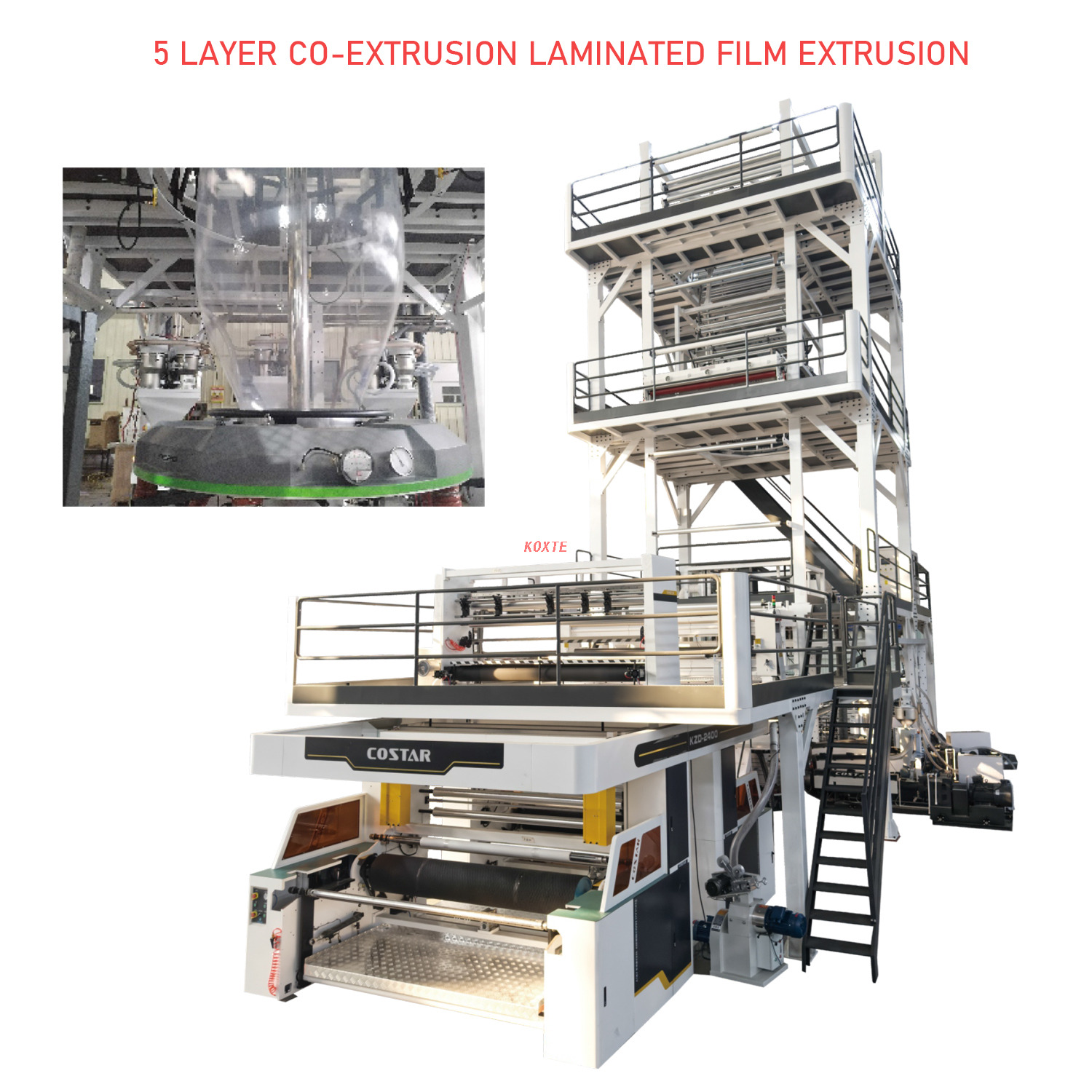

5-layer co-extrusion industrial packaging film blowing machine

 Model

 SJ65/55/55/55/65-1800

 SJ75/55/55/55/75-2000

 BASIC PARAMETER

 Suitable Materials

 LDPE, LLDPE, mLLDPE, PA, TIE

 Film Width

 1000-1600mm

 1200-1750mm

 Film thickness

 0.04-0.12mm

 Maximum output

 230-300kg/hr

 300-400kg/hr

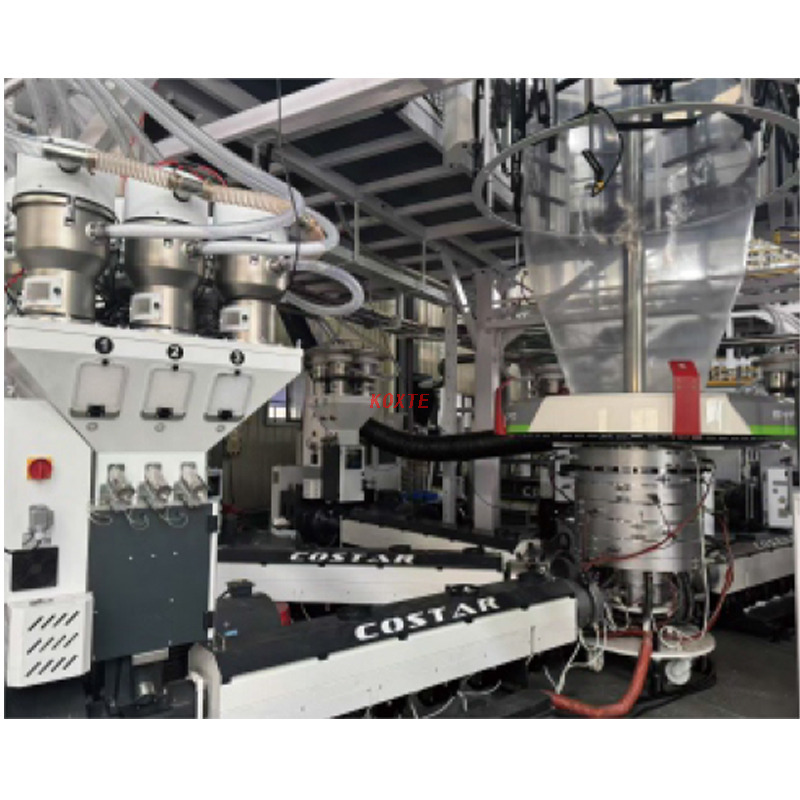

 EXTRUDER

 Screw diameter

 ф 65；ф 55；

 ф 75；ф 55；

 Aspect ratio

 1:32

 1:32

 Main motor power

 45kw×2   37kw×3

 55kw×2  37kw×3

 Reduction box model

 225×2  200×3

 250×2  200×3

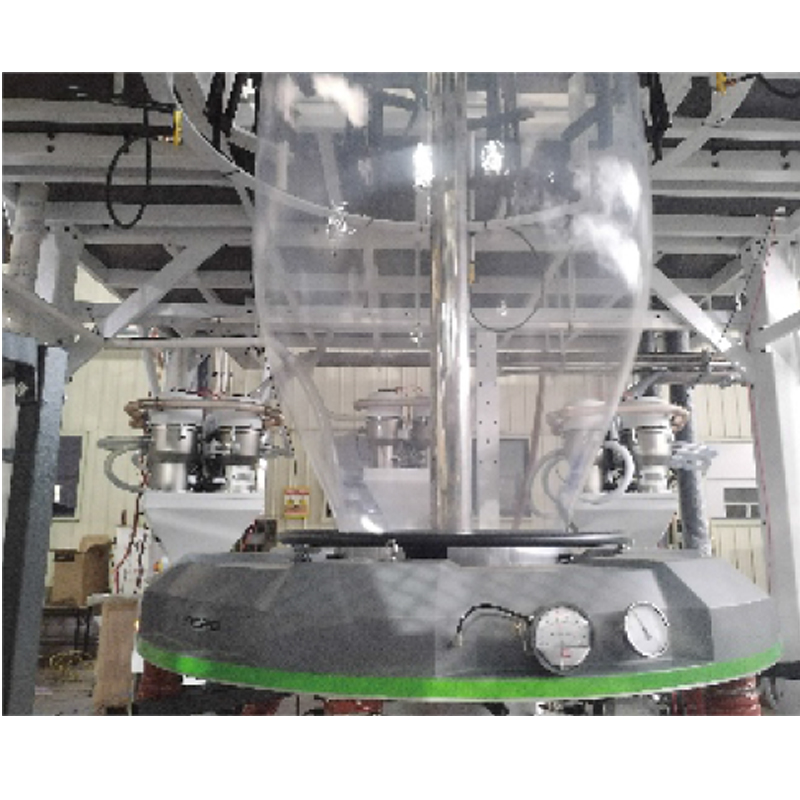

 Die head diameter

 ф 450mm

 ф 550mm

 Air ring diameter

 ф 490mm

 ф 590mm

  Blower

 18.5kw

 22kw

  Screen changing method

 Dual-station manual quick screen change

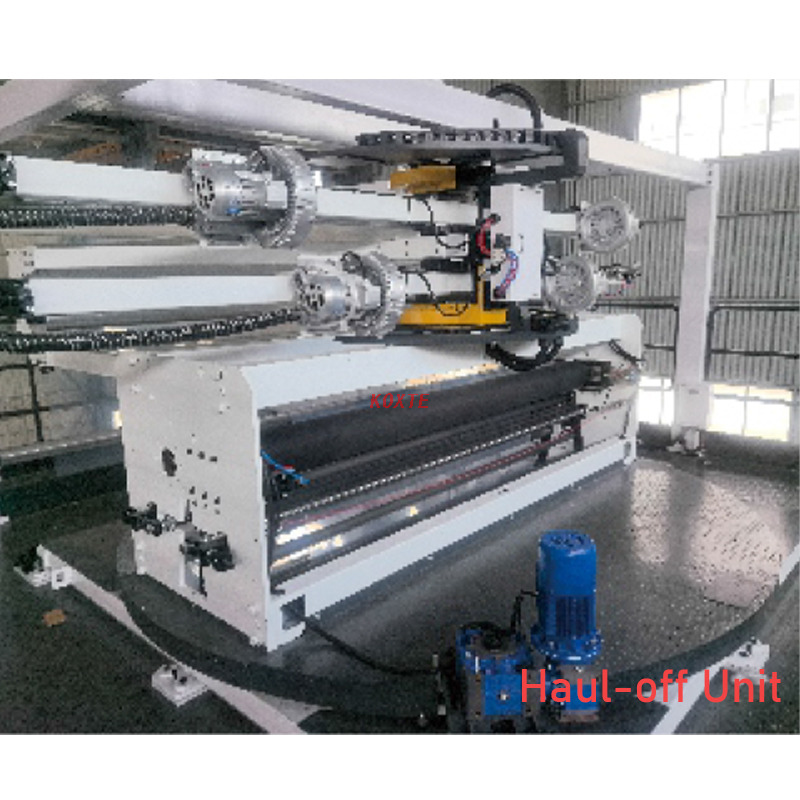

  TAKE UP UNIT

 Roller width

 1800mm

 2000mm

 Take-up speed

 5-90m/min

 5-90m/min

 Take-up motor

 1. 5kw

 2.2kw

 Roary type

 Horizontal type

 Horizontal type

 EPC correction

 Centering or edge alignment Ultrasonic photoelectric type

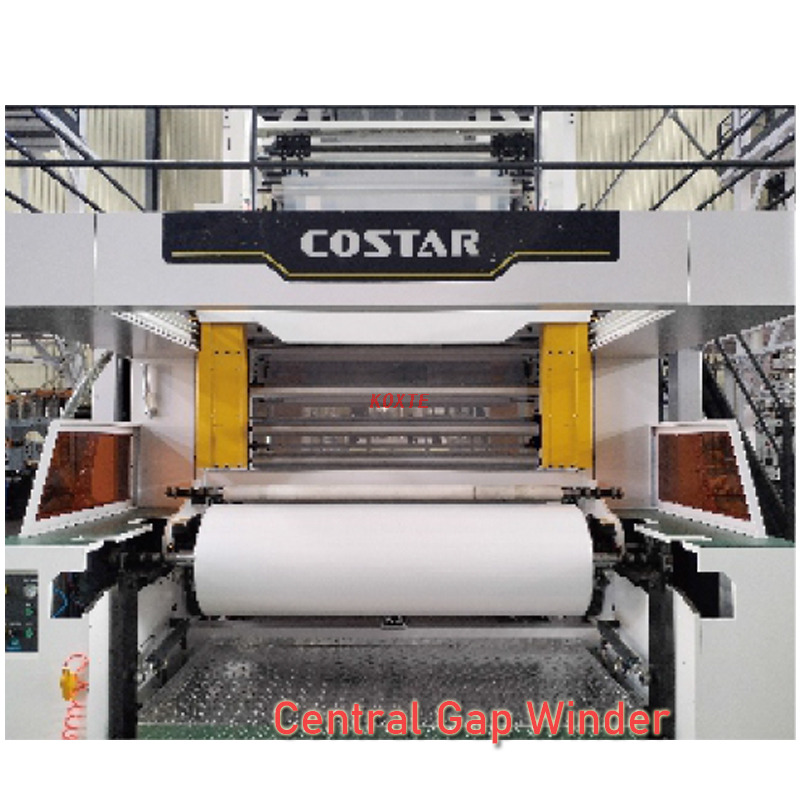

 WINDIND UNIT

 Winder Type

 Automatic central gap winder

 Automatic tension system

 Auto Tension control

 Winding motor power

 1. 5kw

 2.2kw

 Winding speed

 5-90m/min

 5-90m/min

 CONTROL UNIT

 Electrical part

 Schneider

 Control system

 Austria B+R system or China brand systm

 Inverter

 Yaskawa、Delta、Inovance、Slanvert（According to customer requirements）

 ( LxWxH)

 Dimension

 14m×9.5m×13.5m

 15m×9.5m×14.5m
