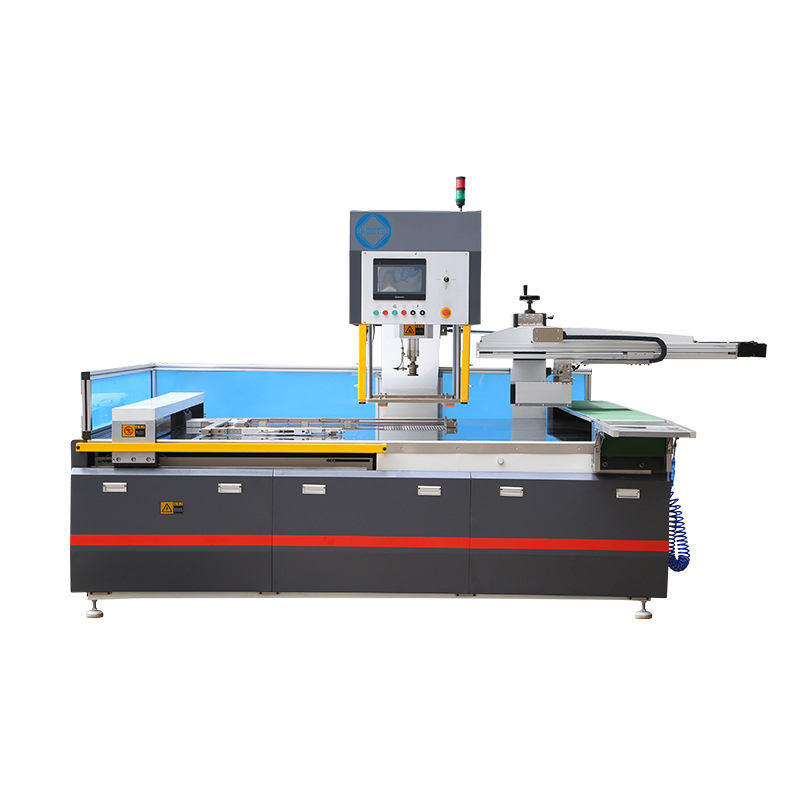

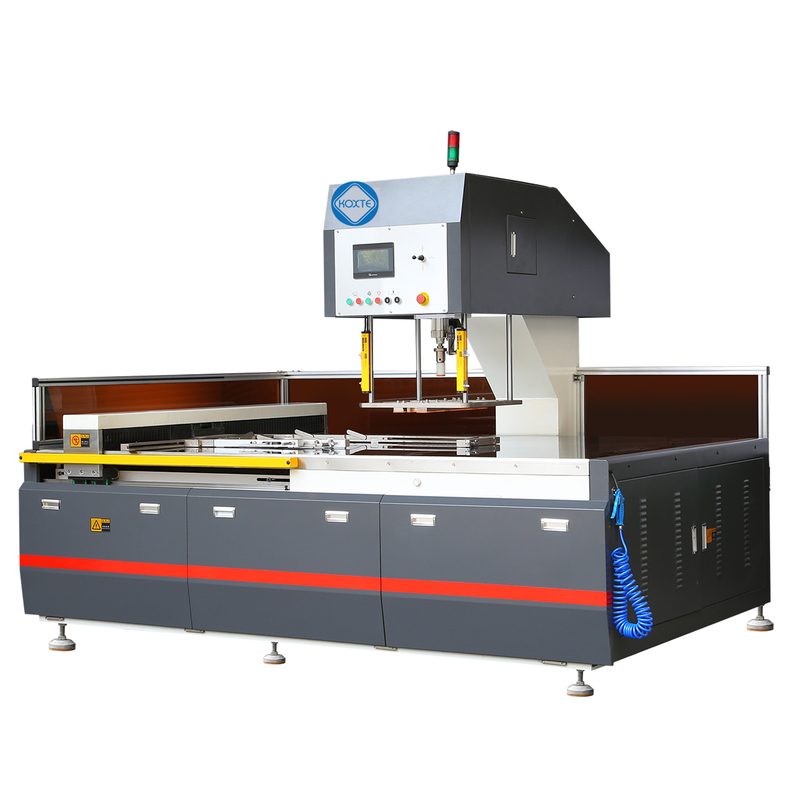

Automatic Cardboard Waste /Paper Cup Box Stripping Blanking Machine

Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency of die-cutting products in paper or plastic materials. It applies to print & pack industrial, post-press, after paper creasing and die cutting.This stripper machine make your scrap removal efficient after the die-cutting process. The die-cut strip machine applies to the production lines of hang tags, paper box, paper cup, food box, plastic box, and so on.

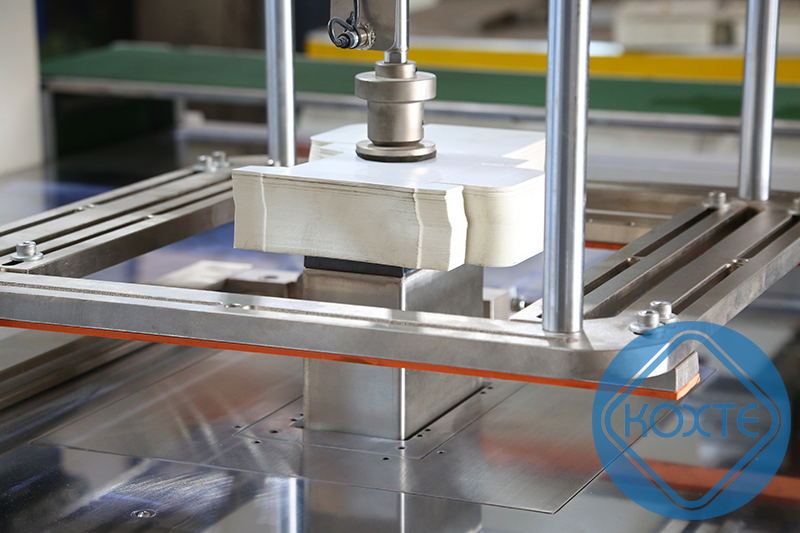

1. Taking out finished products after die cutting process.
2. Applied for many die cut products such as labels, hang tags, business cards, gift boxes, food boxes,paper cups and other die cutting products in paper or plastic, PU leather.
3. Automatically taking out with manipulator arm to stack product onto delivery belt.
4. PLC controlled with smart & easy operation.
5. Automatic lubrication system for machine better maintenance.

6. Different shapes can be custom-made as customer requirement.

Technical   Parameter

Model	QDQF-680R	QDQF-920R	QDQF-1080R
Machine Size	L2600xW1400xH1950	L3100xW1800xH1950	L3600xW2050xH1950
Max sheet size (X x Y) mm	680 x 480	920 x 680	1080 x 780
Min sheet size (X x Y) mm	400 x 300	550 x 400	650 x 450
Max pile height mm	100	100	100
Min pile height mm	40	40	40
Work table height mm	850	850	850
Max product size to be punched out	230 x 230	360 x 360	390 x 390
Min. product size to be punched out	30*30	30*30	30*30
Stripping speed times/min	15-22	15-22	15-22
Max. force (bar)	70	70	70
Air consumption L/min	4	4	4
Manipulator Grip Range	30-180mm	30-260mm	30-300mm
Manipulator Grip Weight	50-1200g	50-1500g	50-1800g
Max Power	4.6kw 380V	4.6kw 380V	4.6kw 380V
Net Weight	1.7T	2.1T	2.5T
Package Size	2100x1500x2200	2700x1950x2250	3100x2250x2250
Gross Weight	2.0T	2.45T	2.9T
