| Machine Size: | |
|---|---|
| Max sheet size (X x Y): | |
| Min sheet size (X x Y): | |
| Max pile height : | |
| Min pile height: | |
| Quantity: | |
1080R
koxte
8449009000
Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency of die-cutting products in paper or plastic materials. It applies to print & pack industrial, post-press, after paper creasing and die cutting.This stripper machine make your scrap removal efficient after the die-cutting process. The die-cut strip machine applies to the production lines of hang tags, paper box, paper cup, food box, plastic box, and so on.
1. Taking out finished products after die cutting process,for waste stripping. 2. Applied for many die cutted products such as labels, hang tags, business cards, gift boxes, food boxes, paper cups and other die cutting products in paper or plastic or PU leather. 3. Rotary head of stripping to take out the opposite direction die cutting products easily . 4. Automatically taking out product with manipulator arm and stack product onto delivery belt. 5. PLC controlled with smart & easy operation. 6. Automatic lubrication system for machine better maintenance. 8. Different shapes can be custom-made as customer requirement.
Technical Parameter
| Model | QDQF-680TR | QDQF-920TR | QDQF-1080TR |
| Machine Size | L2600xW1400xH1950 | L3100xW1800xH1950 | L3600xW2050xH1950 |
| Max sheet size (X x Y) mm | 680 x 480 | 920 x 680 | 1080 x 780 |
| Min sheet size (X x Y) mm | 400 x 300 | 550 x 400 | 650 x 450 |
| Max pile height / mm | 100 | 100 | 100 |
| Min pile height / mm | 40 | 40 | 40 |
| Work table height mm | 850 | 850 | 850 |
| Max product size to be punched out | 230 x 230 | 360 x 360 | 390 x 390 |
| Min. product size to be punched out | 30*30 | 30*30 | 30*30 |
| Stripping speed times/min | 15-22 | 15-22 | 15-22 |
| Max. force (bar) | 70 | 70 | 70 |
| Air consumption L/min | 4 | 4 | 4 |
| Rotary Head Degree | 0-180 | 0-180 | 0-180 |
| Manipulator Grip Range /mm | 30-180mm | 30-260mm | 30-300mm |
| Manipulator Grip Weight | 50-1200g | 50-1500g | 50-1800g |
| Max Power | 5.2kw 380V | 5.4kw 380V | 5.4kw 380V |
| Net Weight | 1.8T | 2.2T | 2.6T |
| Package Size | 2100x1500x2200 | 2700x1950x2250 | 3100x2250x2250 |
| Gross Weight | 2.1T | 2.5T | 3T |
| Gross Weight | 3.6T | 4.0T | 4.5T |
Sample Show
Pre-sales Service
Inquiry and consulting support.
Sample testing support.
View our factory.
After-sales service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
Warranty ,Machines are new(or unused) and the gurantee period will be given thireteen months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the courier cost. Parts damaged because of mishanding and consumable parts are not covered by any warranty.
All our machines have CE certificates and passed ISO9001-2008
Welcome you visit our factory to test machine by yourself!
Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency of die-cutting products in paper or plastic materials. It applies to print & pack industrial, post-press, after paper creasing and die cutting.This stripper machine make your scrap removal efficient after the die-cutting process. The die-cut strip machine applies to the production lines of hang tags, paper box, paper cup, food box, plastic box, and so on.
1. Taking out finished products after die cutting process,for waste stripping. 2. Applied for many die cutted products such as labels, hang tags, business cards, gift boxes, food boxes, paper cups and other die cutting products in paper or plastic or PU leather. 3. Rotary head of stripping to take out the opposite direction die cutting products easily . 4. Automatically taking out product with manipulator arm and stack product onto delivery belt. 5. PLC controlled with smart & easy operation. 6. Automatic lubrication system for machine better maintenance. 8. Different shapes can be custom-made as customer requirement.
Technical Parameter
| Model | QDQF-680TR | QDQF-920TR | QDQF-1080TR |
| Machine Size | L2600xW1400xH1950 | L3100xW1800xH1950 | L3600xW2050xH1950 |
| Max sheet size (X x Y) mm | 680 x 480 | 920 x 680 | 1080 x 780 |
| Min sheet size (X x Y) mm | 400 x 300 | 550 x 400 | 650 x 450 |
| Max pile height / mm | 100 | 100 | 100 |
| Min pile height / mm | 40 | 40 | 40 |
| Work table height mm | 850 | 850 | 850 |
| Max product size to be punched out | 230 x 230 | 360 x 360 | 390 x 390 |
| Min. product size to be punched out | 30*30 | 30*30 | 30*30 |
| Stripping speed times/min | 15-22 | 15-22 | 15-22 |
| Max. force (bar) | 70 | 70 | 70 |
| Air consumption L/min | 4 | 4 | 4 |
| Rotary Head Degree | 0-180 | 0-180 | 0-180 |
| Manipulator Grip Range /mm | 30-180mm | 30-260mm | 30-300mm |
| Manipulator Grip Weight | 50-1200g | 50-1500g | 50-1800g |
| Max Power | 5.2kw 380V | 5.4kw 380V | 5.4kw 380V |
| Net Weight | 1.8T | 2.2T | 2.6T |
| Package Size | 2100x1500x2200 | 2700x1950x2250 | 3100x2250x2250 |
| Gross Weight | 2.1T | 2.5T | 3T |
| Gross Weight | 3.6T | 4.0T | 4.5T |

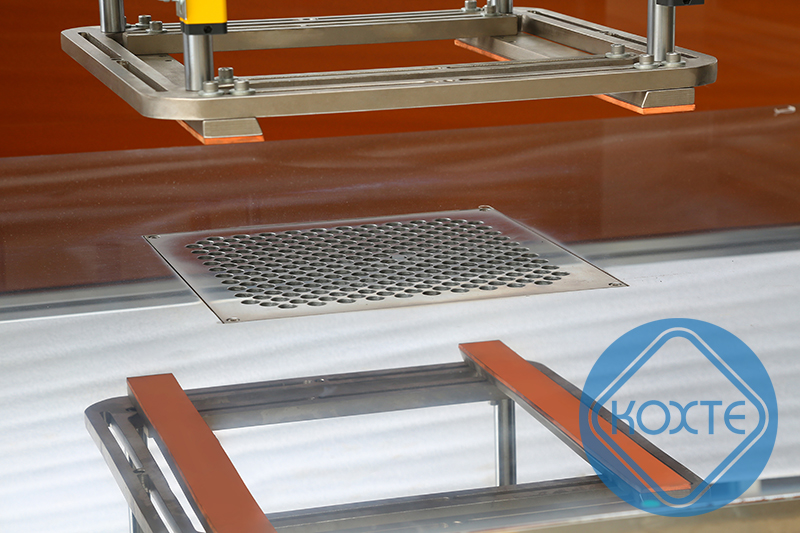

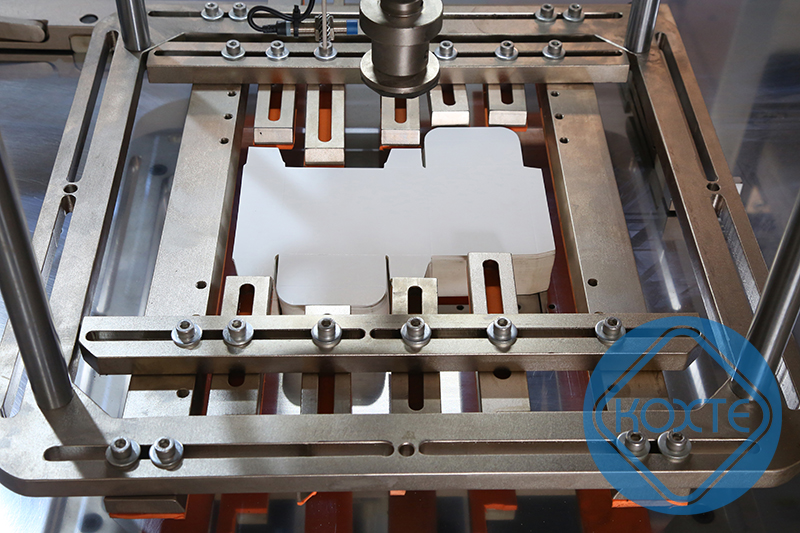

Sample Show
Pre-sales Service
Inquiry and consulting support.
Sample testing support.
View our factory.
After-sales service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
Warranty ,Machines are new(or unused) and the gurantee period will be given thireteen months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the courier cost. Parts damaged because of mishanding and consumable parts are not covered by any warranty.
All our machines have CE certificates and passed ISO9001-2008
Welcome you visit our factory to test machine by yourself!
