Automatic Paper Label/Tags Blanking Machine

Share to:

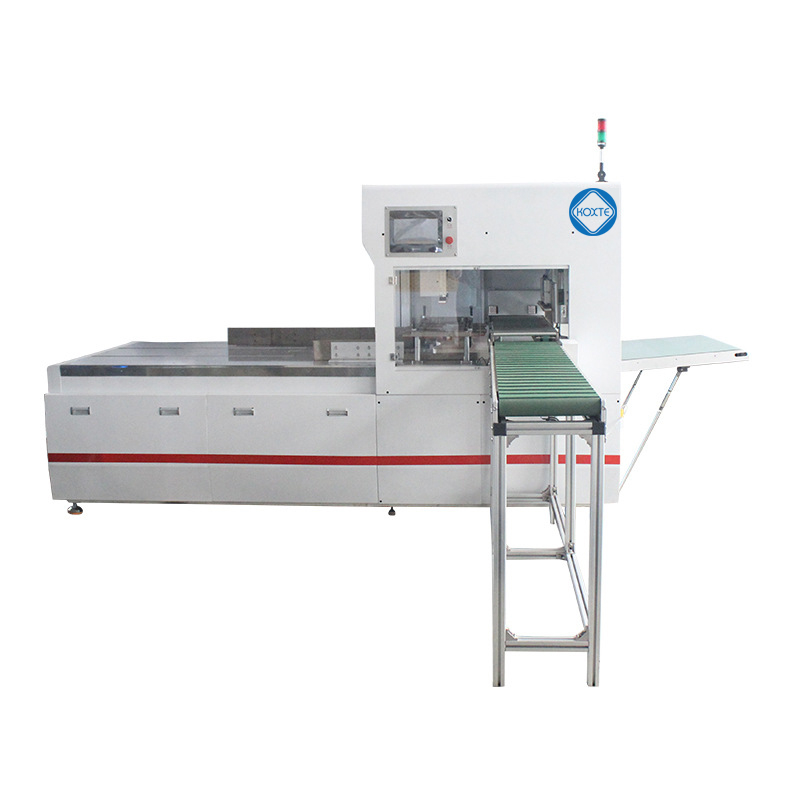

Automatic Paper Label/Tags Blanking Machine

This automatic label dismantle machine is mainly used for taking off the material after die cutting, like hangtags, label, etc. For the clothes, glass industry. With much higher efficiency, and higher production than that by hand.

Availability:

Quantity:



Inquire Add to Basket

Model:
QDQF-1100YC
Brand:
koxte
Code:
8449009000

1. Taking out finished products after die cutting process, for waste stripping.

2. Applied for many die cutted product such as labels, hang tags, business cards, gift box, food box, paper cups and other die cutting products in paper or plastic, PU leather.

3. For stripping of the die-cutted products by whole row .

4. Automatically taking out with manipulator arm to stack product onto delivery belt.

5. PLC controlled with smart & easy operation.

6. Automatic lubrication system for machine better maintenance.

7. Different shapes can be custom-made as customer requirement

1100-详情

Paper Label Blanking Machine Paper tag Blanking Machine Blanking Machine Label Blanking Machine tag Blanking Machine Paper Label Machine Paper tag Machine Label Machine tag Machine Automatic paper Label Machine

Return

*Verify Code

Model	QDQF-920T	QDQF-1080T
Machine Size	L2600xW1800xH1950	L3000xW2050xH1950
Max sheet size (X x Y) mm	920 x 680	1080 x 780
Min sheet size (X x Y) mm	550 x 400	650 x 450
Max pile height mm	100	100
Min pile height mm	40	40
Work table height mm	850	850
Max product size to be punched out	360 x 360	390 x 390
Min. product size to be punched out	30*30	30*30
Stripping speed times/min	15-22	15-22
Max. force (bar)	70	70
Air consumption L/min	3	3
Max Power	5.2kw 380V	5.2kw 380V
Net Weight	2.1T	2.5T
Package Size	2700x1950x2250	3100x2250x2250
Gross Weight	2.4T	2.9T
Package Size	2100x1500x2200	2700x1950x2250
Gross Weight	2.0T	2.45T

Model	QDQF-920T	QDQF-1080T
Machine Size	L2600xW1800xH1950	L3000xW2050xH1950
Max sheet size (X x Y) mm	920 x 680	1080 x 780
Min sheet size (X x Y) mm	550 x 400	650 x 450
Max pile height mm	100	100
Min pile height mm	40	40
Work table height mm	850	850
Max product size to be punched out	360 x 360	390 x 390
Min. product size to be punched out	30*30	30*30
Stripping speed times/min	15-22	15-22
Max. force (bar)	70	70
Air consumption L/min	3	3
Max Power	5.2kw 380V	5.2kw 380V
Net Weight	2.1T	2.5T
Package Size	2700x1950x2250	3100x2250x2250
Gross Weight	2.4T	2.9T
Package Size	2100x1500x2200	2700x1950x2250
Gross Weight	2.0T	2.45T
