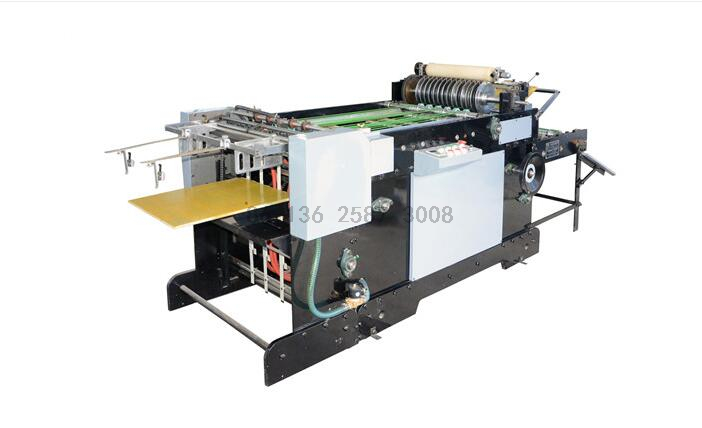

Automatic Two Side Seal Kraft Paper Bubble Envelope Making Machine

This machine is special designed to make the bubble mailer from craft paper with bubble linings.
It combine two layers craft paper and two layers PE bubble film together by hot melt glue. Be sealed under the press of the vertical heat-seal bar and the horizontal heat-seal bar, then be cooled under cooling bar, at last be cut at the fixed length to be the finished mail bag.
This machine adopts the advanced PLC control system, servo motor fix length, touch screen control, easy to operate, stable performance, the mailer be made with smooth and good seal, it is your ideal choice.
Suitable material :
Max design speed:
Max bag width:
Max reel width:
Max reel diameter::
Power supply:
Weight:
Availability:
Quantity:
  • 800QP

  • KOXTE

This machine is special designed to make the bubble mailer from craft paper with bubble linings.
It combine two layers craft paper and two layers PE bubble film together by hot melt glue. Be sealed under the press of the vertical heat-seal bar and the horizontal heat-seal bar, then be cooled under cooling bar, at last be cut at the fixed length to be the finished mail bag.
This machine adopts the advanced PLC control system, servo motor fix length, touch screen control, easy to operate, stable performance, the mailer be made with smooth and good seal, it is your ideal choice.

FEATURE:

The machine has such features as: computer controlled, imported servo motor for traction the material, unwinding the material in permanent tension, photoelectrical correct the error, when the sign is loose or there is no material the machine will stop automatically, etc.


Suitable materialkraft paper 80-110g/sqm (coated)+PE bubble film
Max design speed80pcs/min(can make two at one time for small size)
Max bag length700-800 mm for one bag make
400 mm for two bag one time
Max bag width600 mm
Max reel width1800mm.
Max reel diameter:Kraft paper ¢1200mm, PE bubble ¢1200mm
Power supply3-phase 4-lines AC 380V 50HZ 25KW
Weight3800KG
Overall dimension(L*W*H)16400*1750*2300mm
