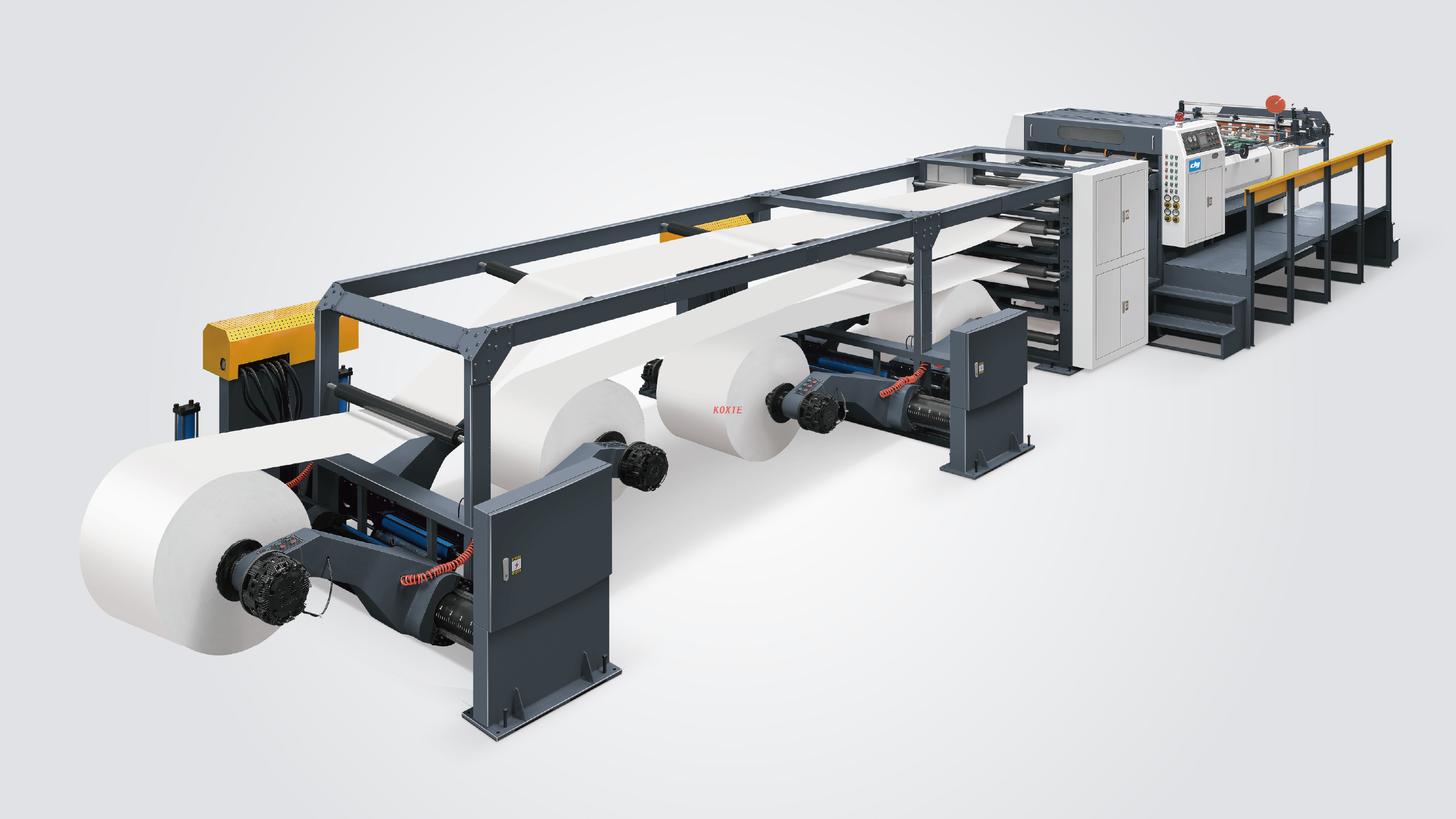

CM 1100A/1500A/1700A/1900A Servo Precision High Speed paper Sheet Cutter machine (Four Reels)

Share to:

CM 1100A/1500A/1700A/1900A Servo Precision High Speed paper Sheet Cutter machine (Four Reels)

paper sheeter cutter machine is widely used in paper converting plants,paper&board manufacturers and paper finishing facilities with high production capacity requirements. It can cut cardboard paper,offset paper,kraft paper,FBB paper,C1S paper,coated paper for printing and packaging industry.

Availability:

Quantity:



Inquire Add to Basket

Model:
CM1100A-4
Brand:
KXITE

Partial Introduction

Auto anti curve

Paper pre-press device

Three sets of slitting knife are used for trimming and middle slitting

Cutting knife unit

Anti-static device

Conveying unit

Automatic stacker

Charles 86-138 6772 6765

paper Sheet Machine paper Cutter Machine Roll to Sheeting Machine

Return

*Verify Code

Home

Home | Video | About Us | Contact Us

Honeycomb Paper Bag Machine Manufacturer & Solution Provider-Kxite Machinery

ABOUT COMPANY

We started making air-sac bag machines in year 2002 and we quickly became the biggest machine provider of the same kind in China back to 2010.

INFORMATION

CONTACT INFO

	Address: No. 8 Jinfei Road Henghe Industrial Zone Feiyun Street, Ruian, Wenzhou
	Custom Support & Sale: +86-136 2587 3008
	Working Time: 08:00–23:00
	E-mail: alisa@kxite.com

Leave a Message

Model	CM-1100/1500/1700/1900A
Model Of Cutting Paper	The up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper	60-550GSM
Cutting Length Range	450-1650mm
The format of slitting	4 sheet(Optional)
Cutting Precision	Cutting length≤1000mm: +/-0.5mm Cutting length>1000mm: +/-0.1%
Max. Cutting Meter Speed	300m/min
Max. Cutting Speed	400cuts/min
Max. Scroll Diameter	1800mm
Max. Paper Cutting Width	1100mm/1500mm/1700mm/1900mm
Max. Paper Piling Height	1500mm
The Request For Air Compressor	0.8Mpa
Power Consumption	380V/220V×50Hz
Gross Weight	13000kgs/15000kgs/17000kgs/19000kgs
Full-load Power	31/35/39/44KW

High-precision single knife cutting machine	1SET
Paper prismatic automatic adjustment system	1SET
Paper transporting equipment	1SET
Automatic paper trimming and collecting machine	1SET
Electrical controlling system	1SET
Driving motor system	1SET
Accessory by machine	1SET
Cone sheftless mill roll stand	1SET
Paper tension controller	1SET
Operation system:LCD panel by operator	1SET
Main drive system:AC servo motor	1SET
