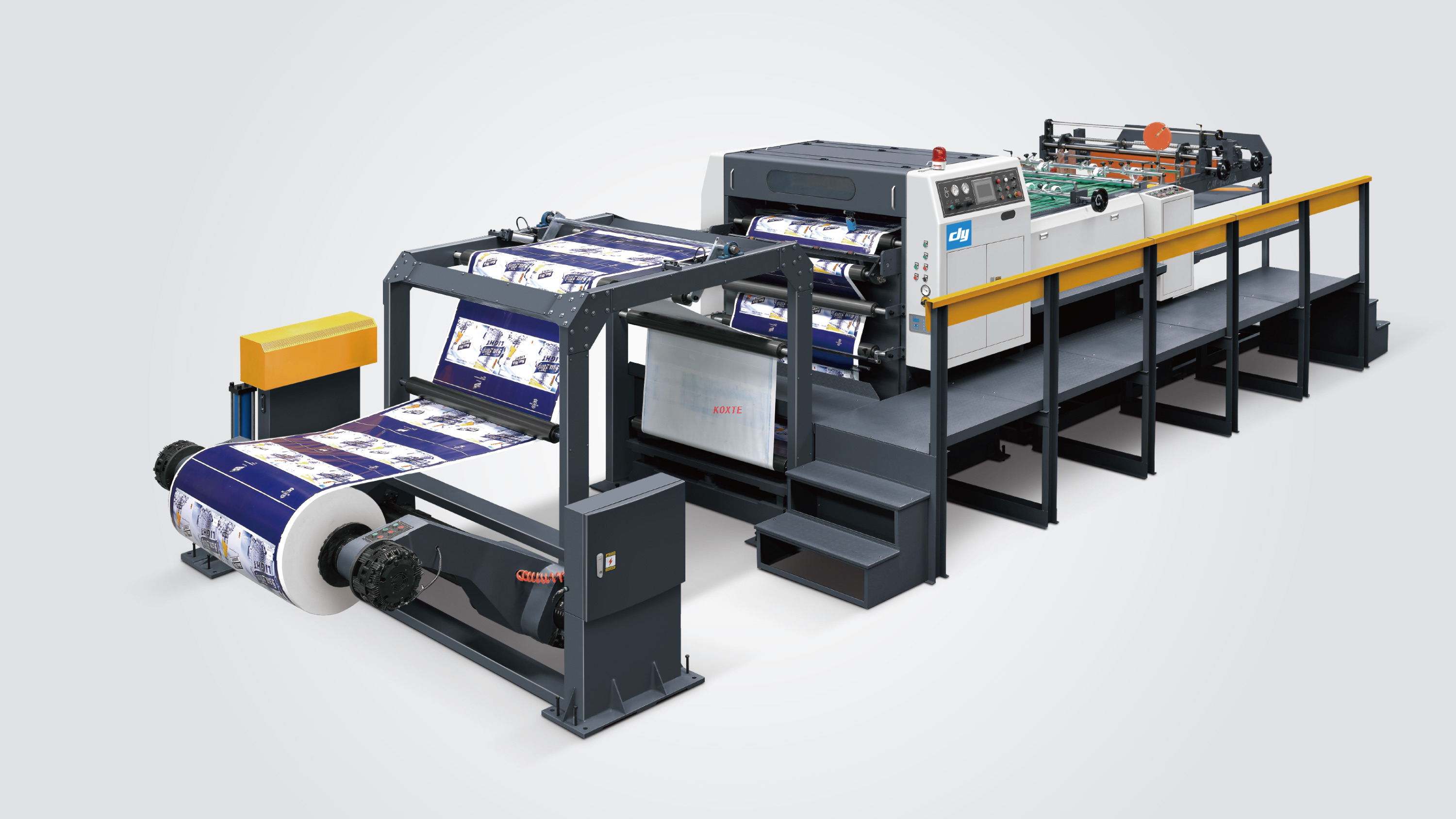

CM 1100A/1500A/1700A/1900A
Photoelectric tracking system
Edge posltion controller system
Fast sheet cutter
Model | CM-1100/1500/1700/1900A |
Model Of Cutting Paper | The up knife cut reciprocally and the down knife is fixed |
Thickness Of Cutting Paper | 60-550g |
Max. Scroll Diameter | 1800mm |
Max. Paper Cutting Width | 1100mm/1500mm/1700mm/1900mm |
Cutting Length Range | 450-1650mm |
The format of slitting | 1 sheet(Optional) |
Cutting Precision | Cutting length≤1000mm: +/-0.5mm; Cutting length>1000mm: +/-0.1% |
Max. Cutting Speed | 300cuts/min |
Max. Cutting Meter Speed | 300m/min |
Max. Paper Piling Height | 1500mm |
The Request For Air Compressor | 0.8Mpa |
Power Consumption | 380V/220V×50Hz |
Gross Weight | 9000kgs/11000kgs/13000kgs/15000kgs |
Full-load Power | 22/26/30/35KW |
High-precision single knife cutting machine | 1SET |
Paper prismatic automatic adjustment system | 1SET |
Paper transporting equipment | 1SET |
Automatic paper trimming and collecting machine | 1SET |
Electrical controlling system | 1SET |
Driving motor system | 1SET |
Accessory by machine | 1SET |
Cone sheftless mill roll stand | 1SET |
Paper tension controller | 1SET |
Operation system:LCD panel by operator | 1SET |
Main drive system:AC servo motor | 1SET |
Our company reserves the right to change technical parameter without futher notice.
