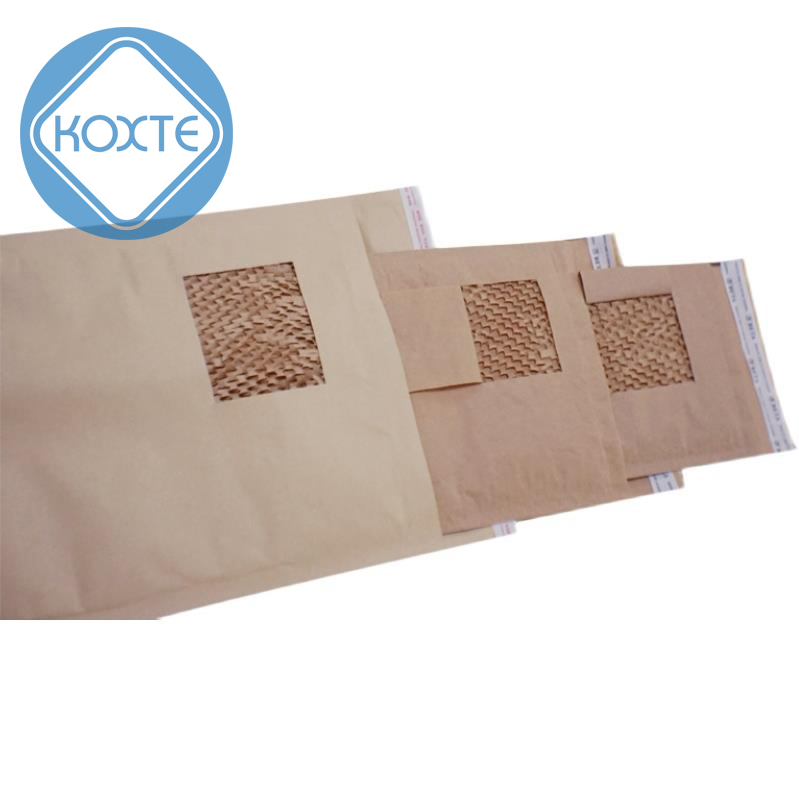

This product was developed by our company in response to the global concept of promoting environmental protection and reducing white pollution.Made of pure paper without other materials. The vibration-damping layer may be a blister-shaped paper or a honeycomb mesh-shaped stretched paper. All are formed by gluing.
| Max width of bag (Height of bag): | |
|---|---|
| Double line: | |
| Maximum length of bag (width of bag): | |
| Maximum width of unwinding: | |
| Overall Dimension: | |
| Quantity: | |
hpm-680
KOXTE
8449009000
This product was developed by our company in response to the global concept of promoting environmental protection and reducing white pollution.
Made of pure paper without other materials. The vibration-damping layer may be a blister-shaped paper or a honeycomb mesh-shaped stretched paper. All are formed by gluing.

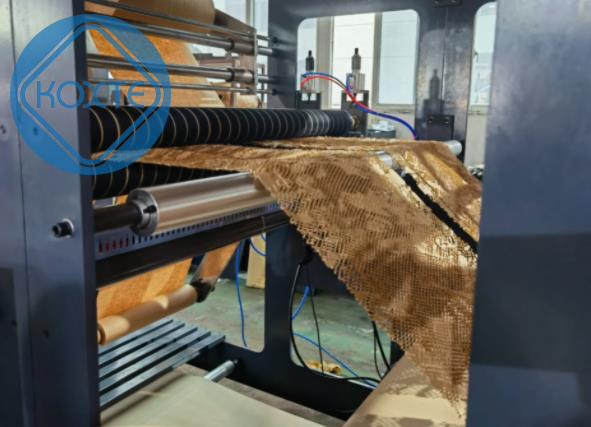

| Suitable bags | professional designed for honeycomb cushion bags. |
| Mechanical speed | 50pcs/min, 40 pcs/min if make big size bag in one line ,(bag height 500mmxbag width 350mm), 80 pcs/min if make small size bag in two lines ( bag height 300mmx bag width 200mm) (Note: the actual speed of making bags may differ according to the size of bags) |
| Max width of bag (Height of bag) | One line: 550mm (including the envelope flap) |
| Double line | 300mm (including the envelope flap) |
| Maximum length of bag (width of bag) | 450mm |
| Maximum width of unwinding | Kraft paper: 1300mmX2, honeycomb paper 550mmx4 |
| Maximum diameter of unwinding | Kraft paper 1000mm, honeycomb paper 500mm |
| Overall Dimension | 34X2.3X2.4m(LXWXH) |
| Power required | 50KW |
| Voltage | 380V 50Hz Three Phase Five wire |
sample：
Alisa Whatsapp:0086- 136 2587 3008
This product was developed by our company in response to the global concept of promoting environmental protection and reducing white pollution.
Made of pure paper without other materials. The vibration-damping layer may be a blister-shaped paper or a honeycomb mesh-shaped stretched paper. All are formed by gluing.
| Suitable bags | professional designed for honeycomb cushion bags. |
| Mechanical speed | 50pcs/min, 40 pcs/min if make big size bag in one line ,(bag height 500mmxbag width 350mm), 80 pcs/min if make small size bag in two lines ( bag height 300mmx bag width 200mm) (Note: the actual speed of making bags may differ according to the size of bags) |
| Max width of bag (Height of bag) | One line: 550mm (including the envelope flap) |
| Double line | 300mm (including the envelope flap) |
| Maximum length of bag (width of bag) | 450mm |
| Maximum width of unwinding | Kraft paper: 1300mmX2, honeycomb paper 550mmx4 |
| Maximum diameter of unwinding | Kraft paper 1000mm, honeycomb paper 500mm |
| Overall Dimension | 34X2.3X2.4m(LXWXH) |
| Power required | 50KW |
| Voltage | 380V 50Hz Three Phase Five wire |
sample：
Alisa Whatsapp:0086- 136 2587 3008
