Environmental Protection Durable Various Hamburger/Fast Food Paper Box Forming Making Machine from China manufacturer

Paper Material:	180-600gsm cardboard /coated paper/ corrugated paper
Max. Liner speed:	80-180pcs/min (different paper box shapes, he speed is different )
Paper thickness:	Max 1.5mm
Carton size:	Length: 100-450mm width:100-580mm height: 15-200m
Glue Material:	Water-base cold glue
Availability:

Quantity:



Inquire Add to Basket

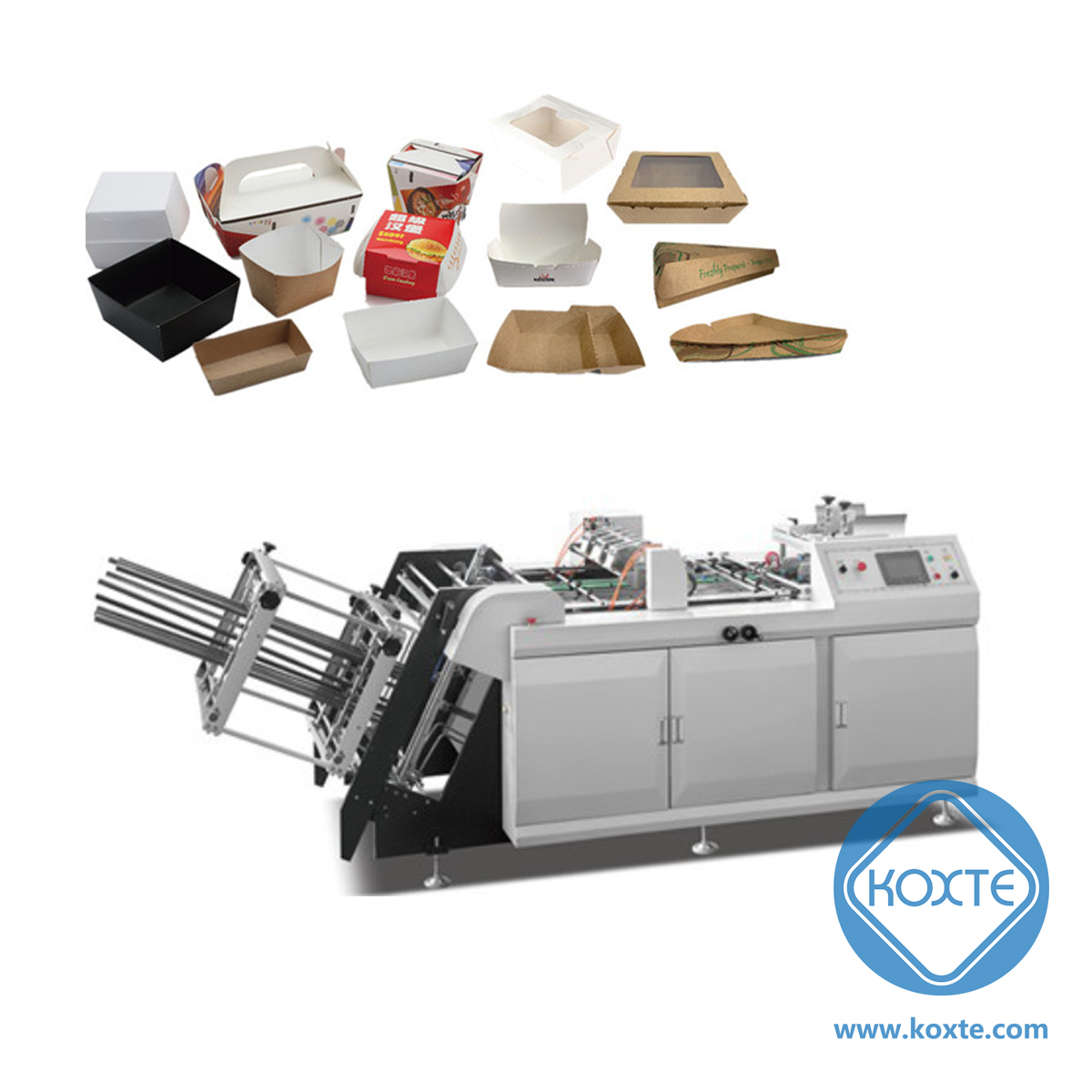

high speed PE kraft paper box cold glue paper box making machine with plasam carton erecting machine

Hot Sale High Speed Automatic Water-based adhesive Glue Sealing Carton Erecting Hamburger Box Machine

Automatic Paper box making mahcine can making many differnet kinds of paper box by changing mold.

Such as hamburger paper box, chips paper box, hot dog paper box, take away paper box, trangle pizza paper box,

square paper box with window, etc

With firm structure, high quality, low noise and high efficiency. It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit.

Advantage:

Servo motor control the forming mold (press mold) (advanced, more accurate than mechanism cam control)

Using full servo system (3 servos in machine replace cam system)

Easy exchange molds to make different products, charging and adjusting time is very short.

PLC program control the whole line, available to make complicated boxes.

Automatic collection,

Human being designed control button and panel, more easy and safe runs by user.

PLC could save the adjusted parameter after you finish adjustment, it will help you save time.

Name	Carton erecting machine
Model	CD-1200
HS code	8441309000
Paper Material	180-600gsm cardboard /coated paper/ corrugated paper
Max. Liner speed	80-180pcs/min (different paper box shapes, he speed is different )
Paper thickness	Max 1.5mm
Carton size	Length: 100-450mm width:100-580mm height: 15-200m
Glue Material	Water-base cold glue
Paper size	Max: 650mm(W)*500mm(L)
Max box size	450mm*400mm
Min box size	50mm*30mm
Air source	2kgs/cm²
Dimension(mm)	370013501450mm
Voltage	380V 50Hz / 220V 50Hz
Total power	4.5kw
Machine weight	1400kgs

1.Q:What is the machine warranty?

A:one year.

2.Q:Does your machine with CE certificate?

A:Yes.

3.Q:What is the production time while placing order?

A:About 30 days

4.Q:What is the delivery time?

A:Within 30 days after get the payment.

5.Q:Can your company handle shipping for customers?

A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)

6.Q:Does the packing strong?

A:Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.

7.Q:How about after-sales service process?

A:When your machine has problem, contact your sales and we will solve your problem soon as possible.

8.Q:Are you manufacturer?

A:Yes, we are manufacturer with 10-year experience and profession.

9.Q:Do you have stock product to sell?

A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, and your order will be highly attention to manufacture.

10.Q:Do you inspect the finished products?

A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .

11.Q:What's the payment term?

A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.

We are professional manufacturer since 2010. We believe our products will provide you with great business benefits and advantage.
