KXT-ABM800
KOXTE
8441309000

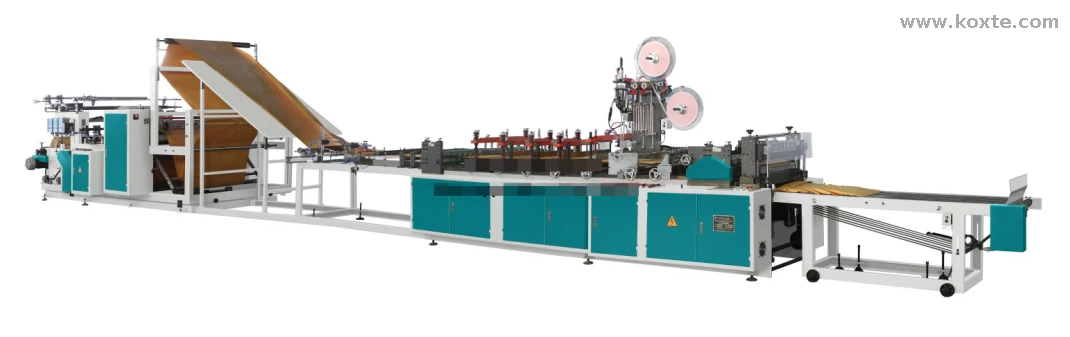

This machine is special designed to make the bubble mailer from craft paper with bubble linings.
It combine two layers craft paper and two layers PE bubble film together by hot melt glue. Be sealed under the press of the vertical heat-seal bar and the horizontal heat-seal bar, then be cooled under cooling bar, at last be cut at the fixed length to be the finished mail bag.
This machine adopts the advanced PLC control system, servo motor fix length, touch screen control, easy to operate, stable performance, the mailer be made with smooth and good seal, it is your ideal choice.
The machine has such features as: computer controlled, imported servo motor for traction the material, unwinding the material in permanent tension, photoelectrical correct the error, when the sign is loose or there is no material the machine will stop automatically, etc.
| Speed | 20-80pcs/minute |
| Bag Width | 600mm(Including the envelop flap) |
| Bag Length | 400mm |
| Feeding Roll Diameter | Paper:600mm Bubble film:1200mm |
| Feeding Width | Paper:1150mm Pe bubble film:1100mm |
| Applied Material | Laminated kraft(>90gsm),pe bubble film |
| Power Supply | 3phases AC380V 50HZ |
| Total Power | 16kw |
| Weight of Machine | 4000kg |
| Overall Dimension(L×W×H) | 15000×2100×2000m |
Alisa Whatsapp:86-136 2587 3008
Email:alisa@kxite.com
www.koxte.com
This machine is special designed to make the bubble mailer from craft paper with bubble linings.
It combine two layers craft paper and two layers PE bubble film together by hot melt glue. Be sealed under the press of the vertical heat-seal bar and the horizontal heat-seal bar, then be cooled under cooling bar, at last be cut at the fixed length to be the finished mail bag.
This machine adopts the advanced PLC control system, servo motor fix length, touch screen control, easy to operate, stable performance, the mailer be made with smooth and good seal, it is your ideal choice.
The machine has such features as: computer controlled, imported servo motor for traction the material, unwinding the material in permanent tension, photoelectrical correct the error, when the sign is loose or there is no material the machine will stop automatically, etc.
| Speed | 20-80pcs/minute |
| Bag Width | 600mm(Including the envelop flap) |
| Bag Length | 400mm |
| Feeding Roll Diameter | Paper:600mm Bubble film:1200mm |
| Feeding Width | Paper:1150mm Pe bubble film:1100mm |
| Applied Material | Laminated kraft(>90gsm),pe bubble film |
| Power Supply | 3phases AC380V 50HZ |
| Total Power | 16kw |
| Weight of Machine | 4000kg |
| Overall Dimension(L×W×H) | 15000×2100×2000m |
