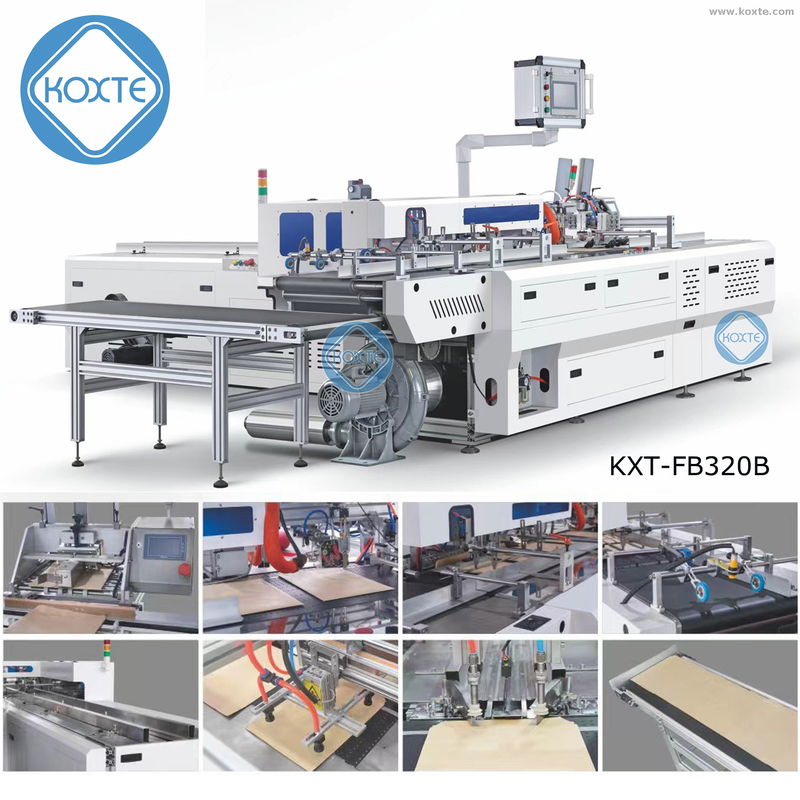

KXT-FB320B
KOXTE
8441100000

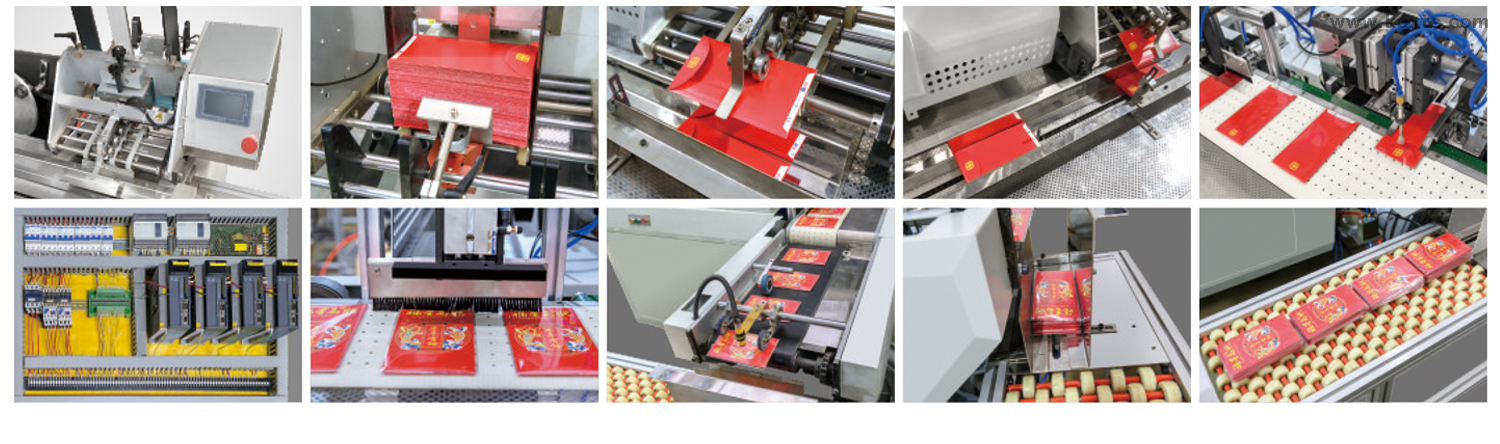

The machine is a dedicated device for fully automatic bag packing for product card, manual, certificate of honor, comic book, document bag,envelope, shingle, notebook, hangtag, and heterogenic product. It has such functions as folding in half, bag making, counting, trimming, gilding,labeling, sticking adhesive label, bagging and hot sealing and cutting.
The whole action is of modern movement module control with PLC multiaxial
servo execution to realize memory function of PLC specification and dimension data. Convenient data commissioning, simple and reasonable structure, accurate and fast positioning as well as automatic transport and counting of finished products exist.
1. Quantity fixing: With quantity counting function, according to the customer requirement, flling the fixed quantity inside the bag.
2. Bag making: With bag making machine. only feeding the plastic fim, it can produce the bag directly according to the request, save the time and labour, and reduce the cost, increase the production's efficiency, and create the benefit.
3. Bag flling: The machine is controlled by PLC and servomotor, All actions are pneumatic, the structure is simple, and locating is fast. And it also can add the function of gluing, punching, ultrasonic ect, replace the manual operation absolutely.
The machine is a dedicated device for fully automatic bag packing for product card, manual, certificate of honor, comic book, document bag,envelope, shingle, notebook, hangtag, and heterogenic product. It has such functions as folding in half, bag making, counting, trimming, gilding,labeling, sticking adhesive label, bagging and hot sealing and cutting.
The whole action is of modern movement module control with PLC multiaxial
servo execution to realize memory function of PLC specification and dimension data. Convenient data commissioning, simple and reasonable structure, accurate and fast positioning as well as automatic transport and counting of finished products exist.
1. Quantity fixing: With quantity counting function, according to the customer requirement, flling the fixed quantity inside the bag.
2. Bag making: With bag making machine. only feeding the plastic fim, it can produce the bag directly according to the request, save the time and labour, and reduce the cost, increase the production's efficiency, and create the benefit.
3. Bag flling: The machine is controlled by PLC and servomotor, All actions are pneumatic, the structure is simple, and locating is fast. And it also can add the function of gluing, punching, ultrasonic ect, replace the manual operation absolutely.
Max speed | 20-40(bag/min) |
Max size of packing | 260*380mm |
Min size of packing | 160*220mm |
Thickness of packing | 30mm |
Paper size | (Max): 320*420mm (Min): 150*150mm |
Paper gram count | 80-120g |
Motor power | 12Kw |
Machine weight | 2200Kg |

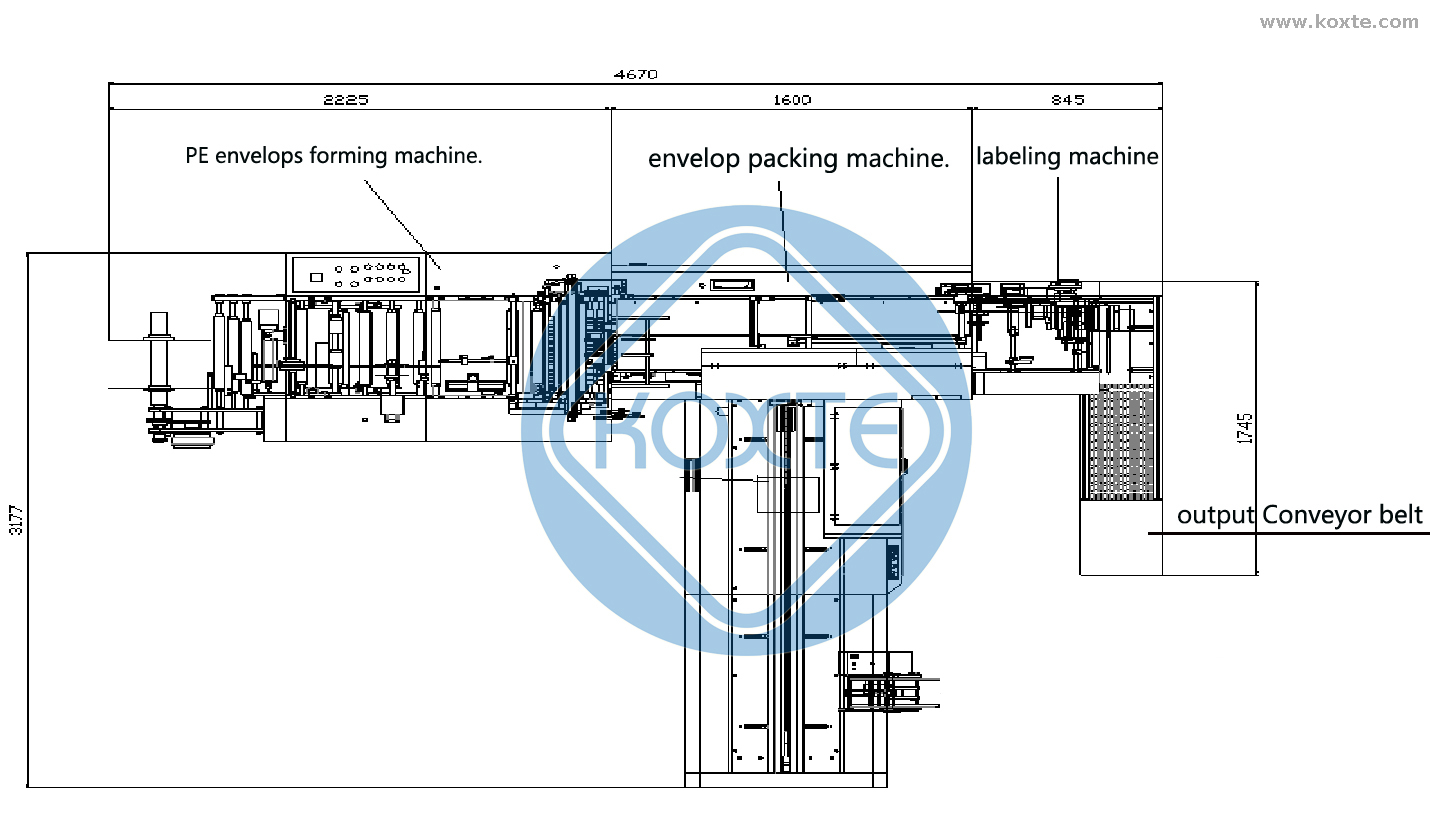

Dimension of machine | 4500*3300*1650mm |
Alisa Whatsapp:86-136 2587 3008
Email:alisa@kxite.com
YOUTUBE:https://www.youtube.com/embed/3vZznBJU9xo
Max speed | 20-40(bag/min) |
Max size of packing | 260*380mm |
Min size of packing | 160*220mm |
Thickness of packing | 30mm |
Paper size | (Max): 320*420mm (Min): 150*150mm |
Paper gram count | 80-120g |
Motor power | 12Kw |
Machine weight | 2200Kg |
Dimension of machine | 4500*3300*1650mm |
