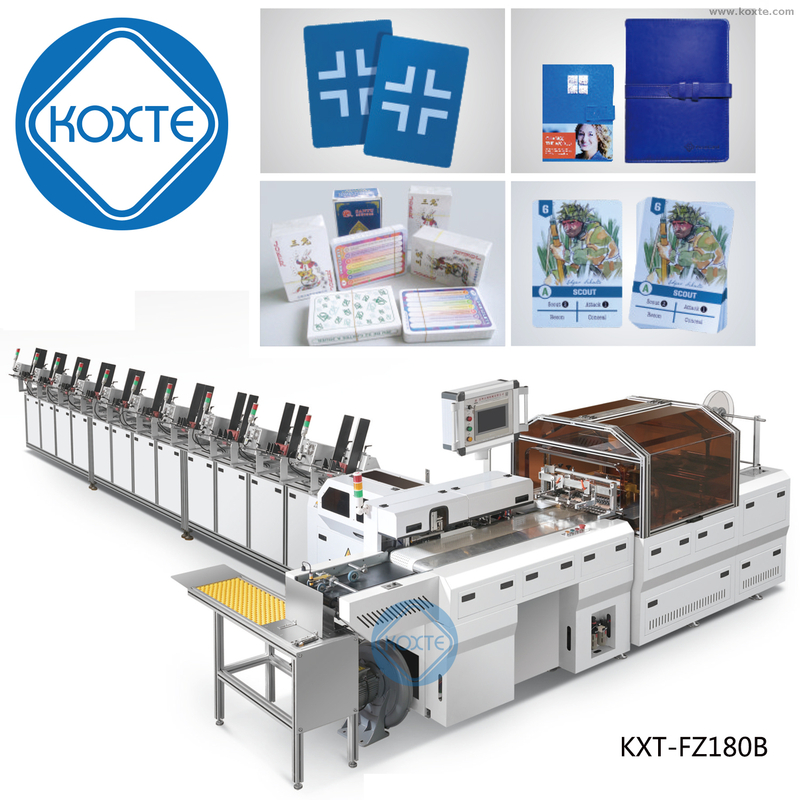

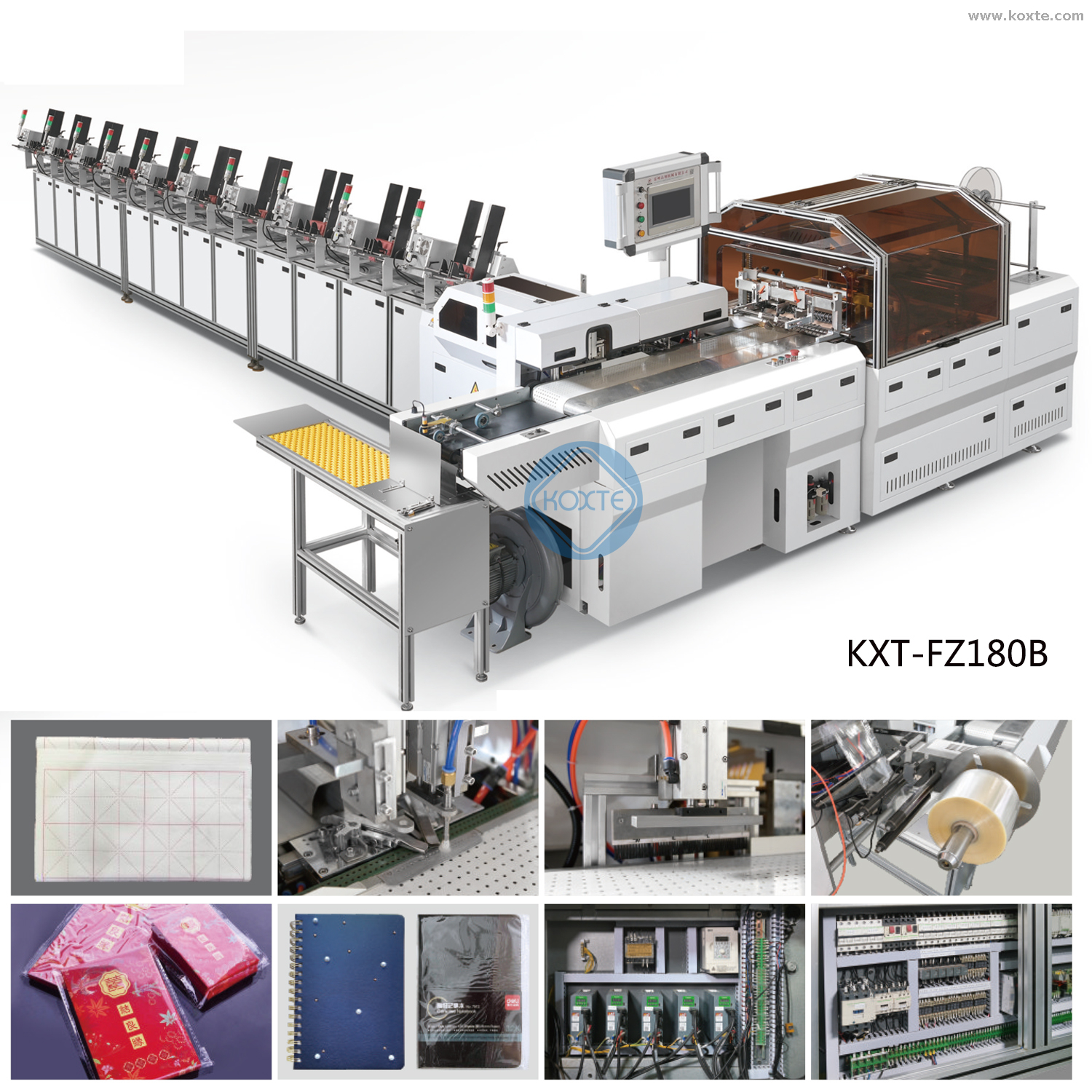

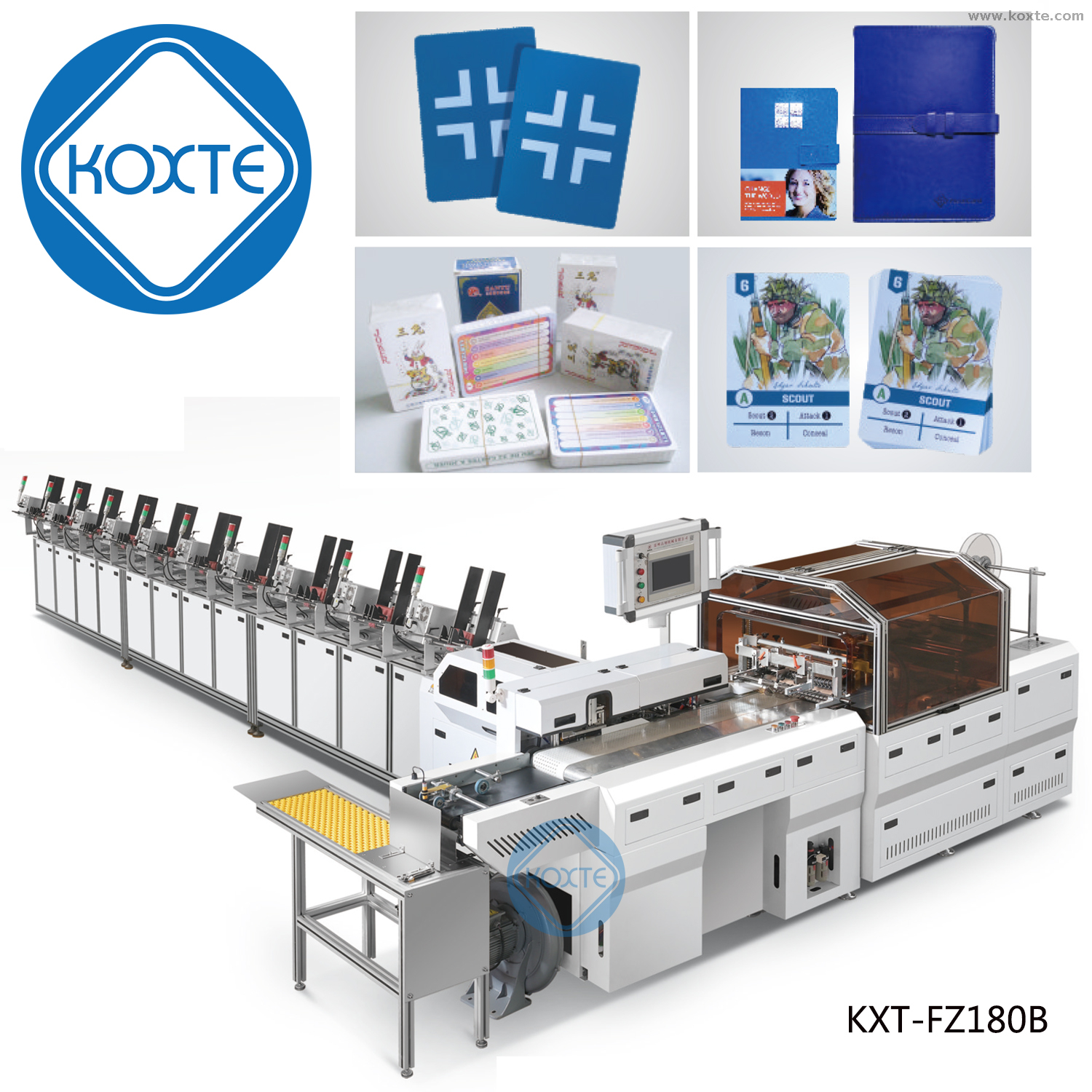

KXT-FZ180B
KOXTE
8441309000
YOUTUBE:https://www.youtube.com/embed/3vZznBJU9xo

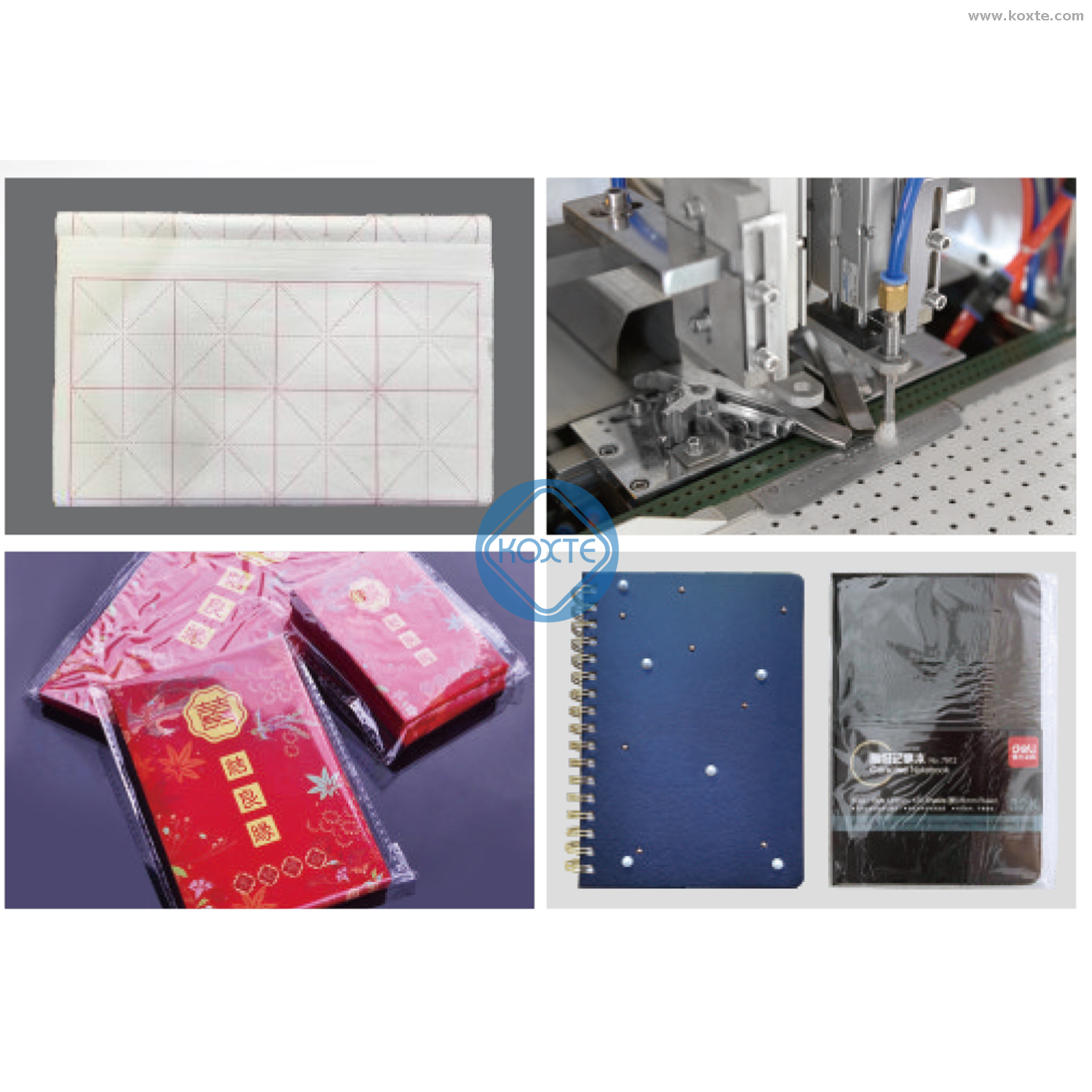

The machine is a dedicated device for fully Automatic bag packing for product card, post cord, red packet, manual, certificate of honor, comic book,document bog, warranty cord, envelope, shingle, notebook, hangtag, insole and heterogenic product. It has such functions as folding in half, bag making,counting, trimming, gilding, labeling, sticking adhesive label, bogging and hot sealing and cutting.
The whole action is of modern movement module control with PLC multiaxial servo execution to realize memory function of PLC specification and dimension data. Convenient data commissioning, simple and reasonable structure, accurate and fast positioning as well as automatic transport and counting of finished products exist.
1. Quantity fixing: With quantity counting function, according to the customer requipment, fling the fixed quantity inside the bag.
2 Bag making: With bag making machine. only feeding the plastic film, it can produce the bag directly according to the request, save the time and labour,and reduce the cost, increase the production's efficiency,and create the benefit.
3. Bag flling:; The machine is controlled by PLC and servomotor, All actions are pneumatic, the structure is simple,and locating is fast.And it also can add the function of gluing, punching, ultrasonic ect , replace the manual operation
absolutely.
Technical parameters
Max speed | 40-60(bag/min) |
Max size of pocking | 200*260mm |
Min size of pocking | 85*100mm |
Thickness of pocking | 2- 30mm |
Film thickness | 0.025-0.04mm |
Max. diameter of film | 420mm |
OPP film specification | (Max): 230*300mm |
(Min): 90x*100mm | |
Motor power | 12Kw |
Machine weight | 2200Kg |
Dimension of machine | 9800*5600*1500mm |
