High Speed Carton Box Window Patching Machine

Window Patching Machine is widely used for patching the window on the liquor box, gift box, tissue box, cosmetic box, toy box and so on.
Availability:
Quantity:
  • 650

  • KOXTE

Window Patching Machine is widely used for patching the window on the liquor box, gift box, tissue box, cosmetic box, toy box and so on.

IMG_2487

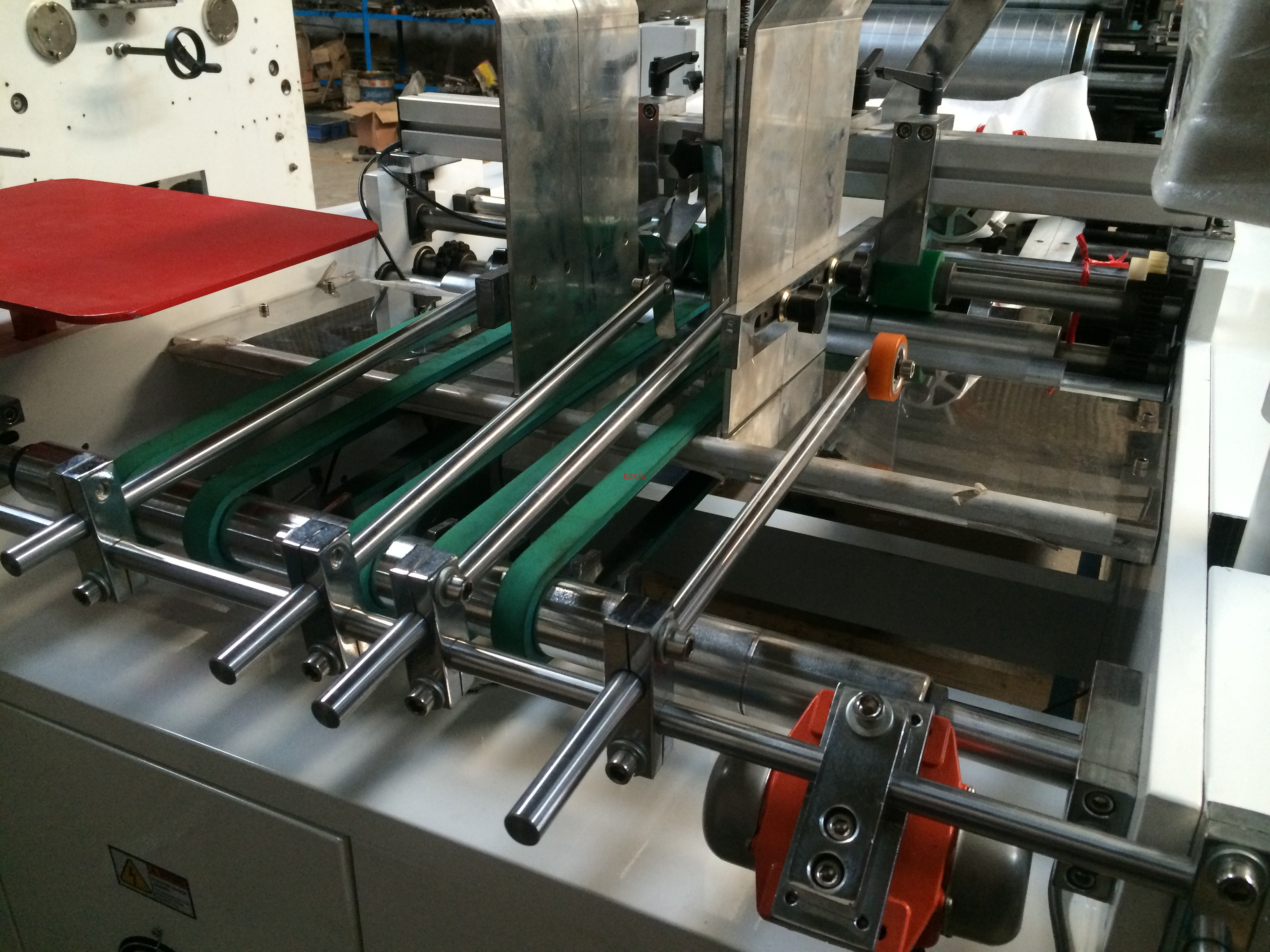

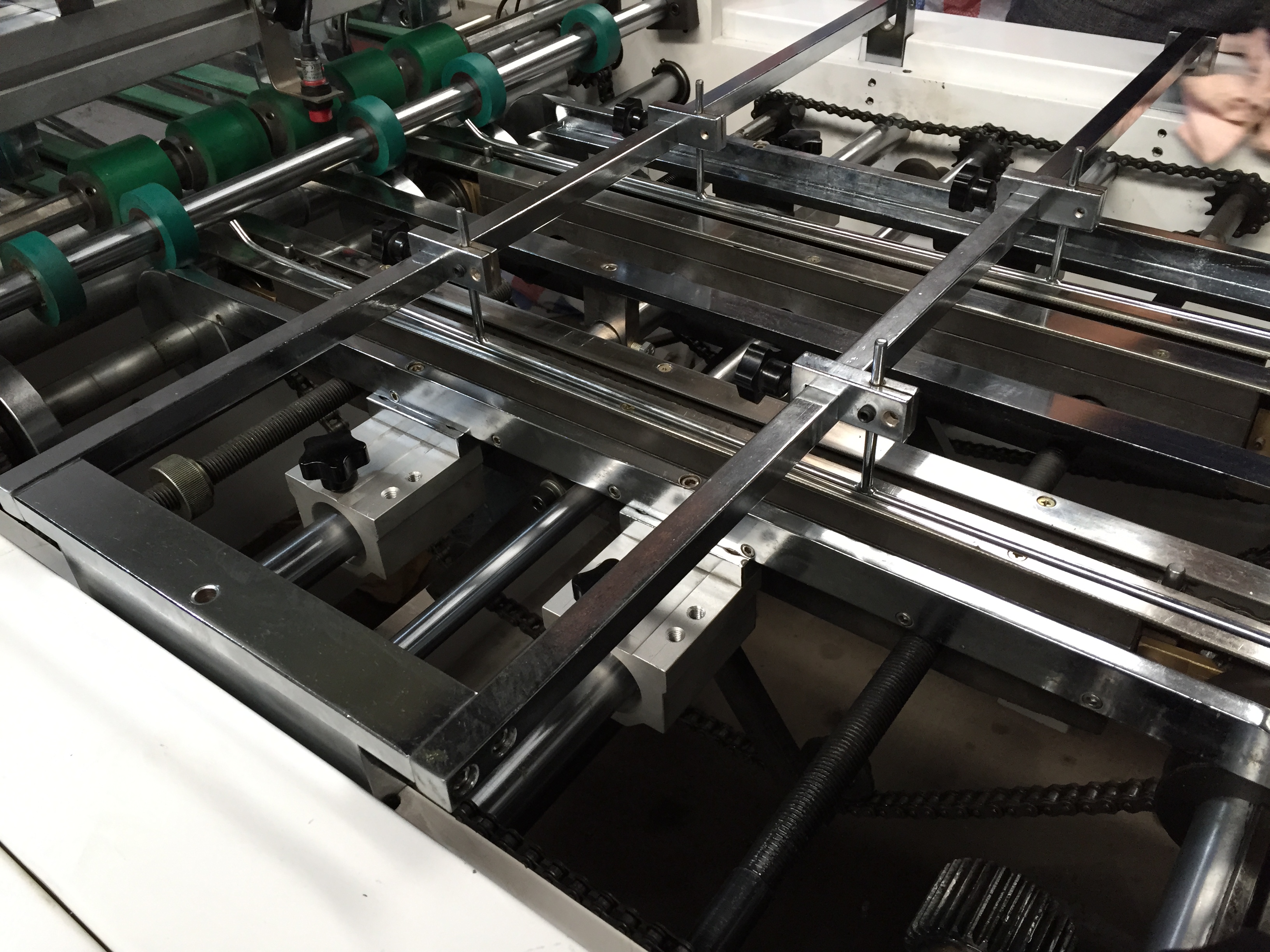

1) The paper moving system adopt pushing chain and air sucking belt. They have positioning function, insure the paper comes same place in same time.

格式工厂IMG_1964

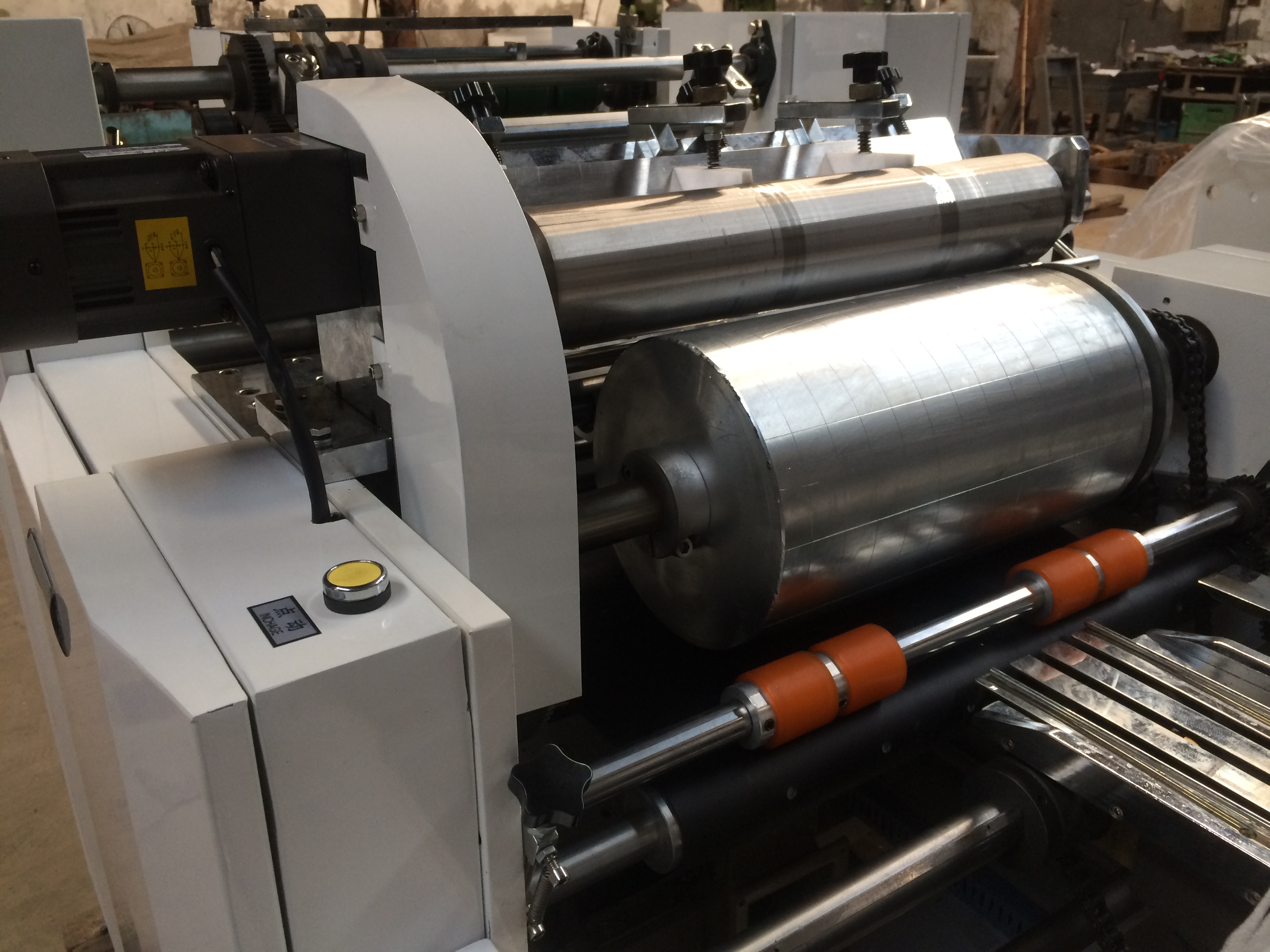

1) Glue part adopt flexo printing technology. We can adjust the place of glue on the paper without any stop. When missing paper, glue part will up in case of the glue leaves on the air sucking belt.

IMG_1964

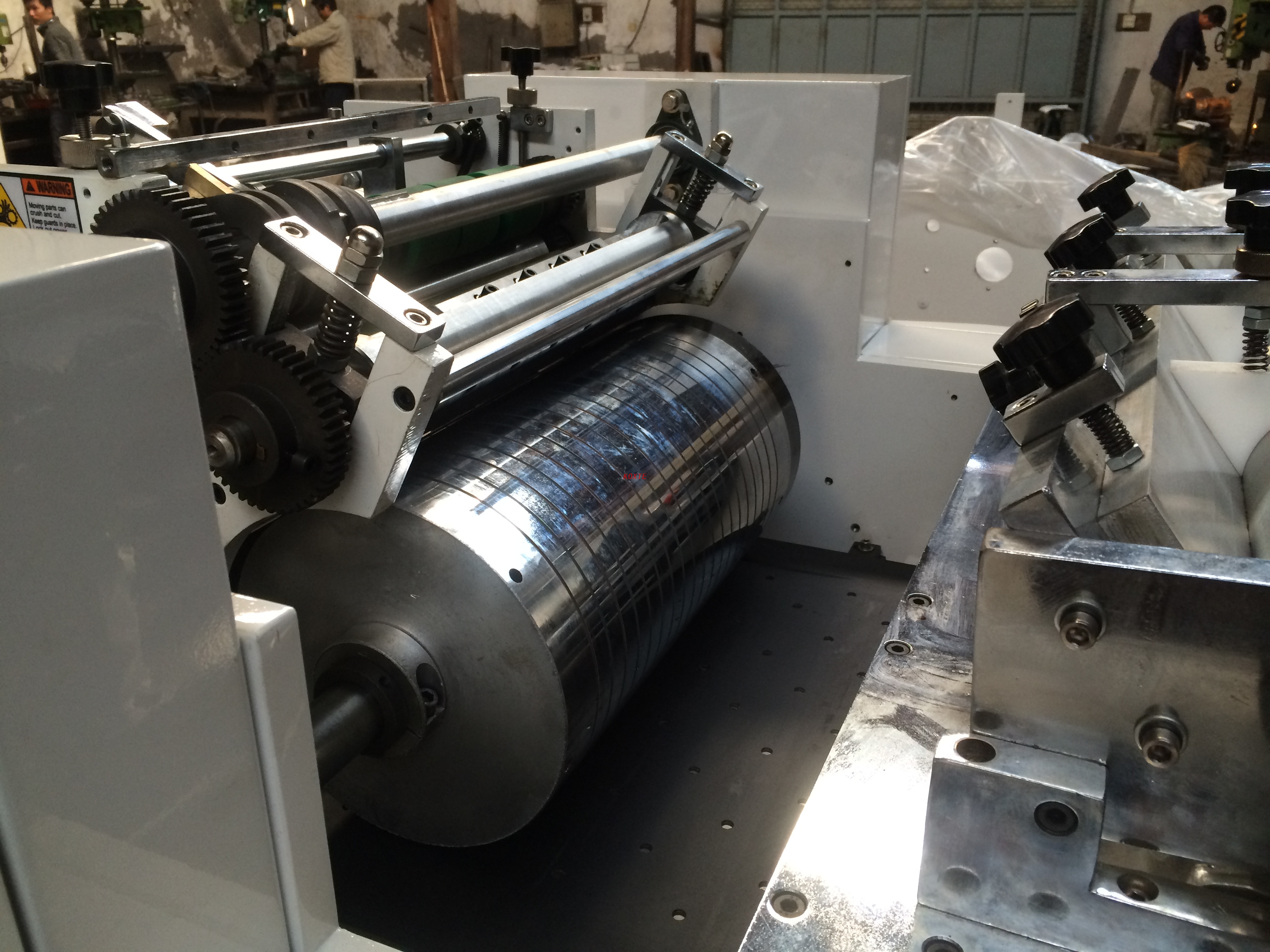

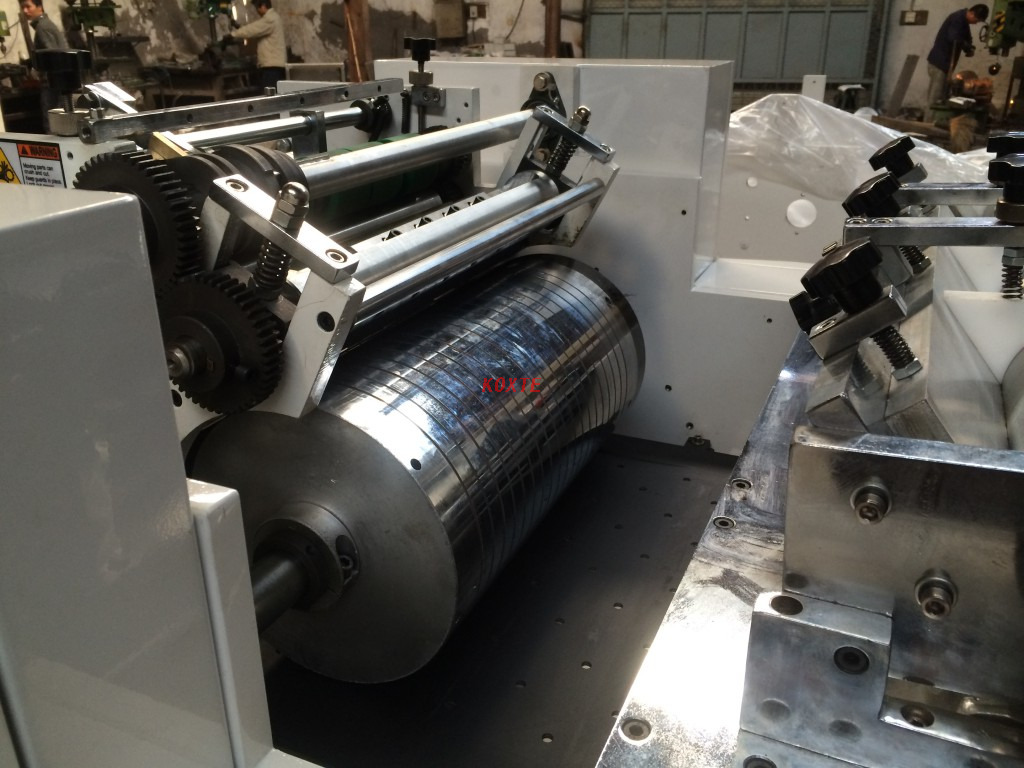

1) The film cutting part adopt roll-knife. It is controlled by servo motor so that we can adjust the film length without stop in the PLC. It also can adjust the place of film on the paper without stop. It has special knife to cut film for tissue box.

Main Technical

Model

KXT-650

Paper weight

200 gram - 1000 gram

Capacity

16000 pieces/hour

Size range of paper

Min.150mm x 160mm

Max.560mm x 650mm

Size range of window

Min.30mm x 50mm

Max.300mm x 350mm

Film thickness

0.05-0.25mm

Total power

6.4 kw

Machine weight

2000kg

Machine size

4500x1200x1600mm

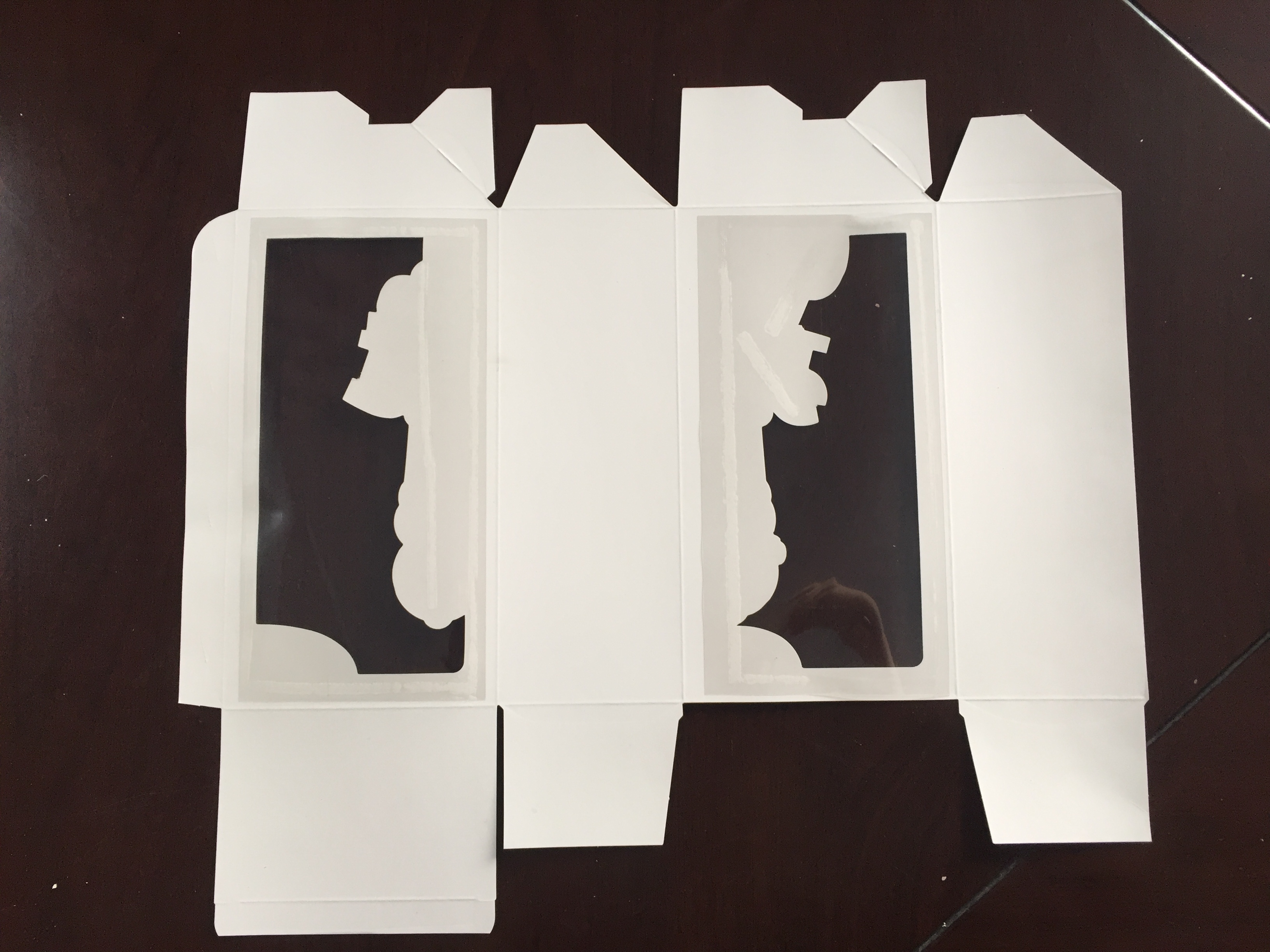

IMG_1425
