High Speed Middle Sealing Four Side Sealing Pouch Making Machine

APPLICATION:

This machine is suitable for producing two-layer or multi-layer three-side sealing laminated film pouche with zipper sealing and doy-pack making function which take BOP PET； CPE PE, nylon, aluminum foil and paper as base material.

PERFORMANCE AND CHARACTERISTICS:

1.Whole machine controlled by central PLC control system with man-machine.

More stable performance, easy for operation and maintenance. Chinese and English interface language can be shifted easily.

2.Constant auto-tension control for unwinding, LPC edge alignment, AC inverter constant speed auto material feeding.

3.Imported Four servo-motor material dragging control system

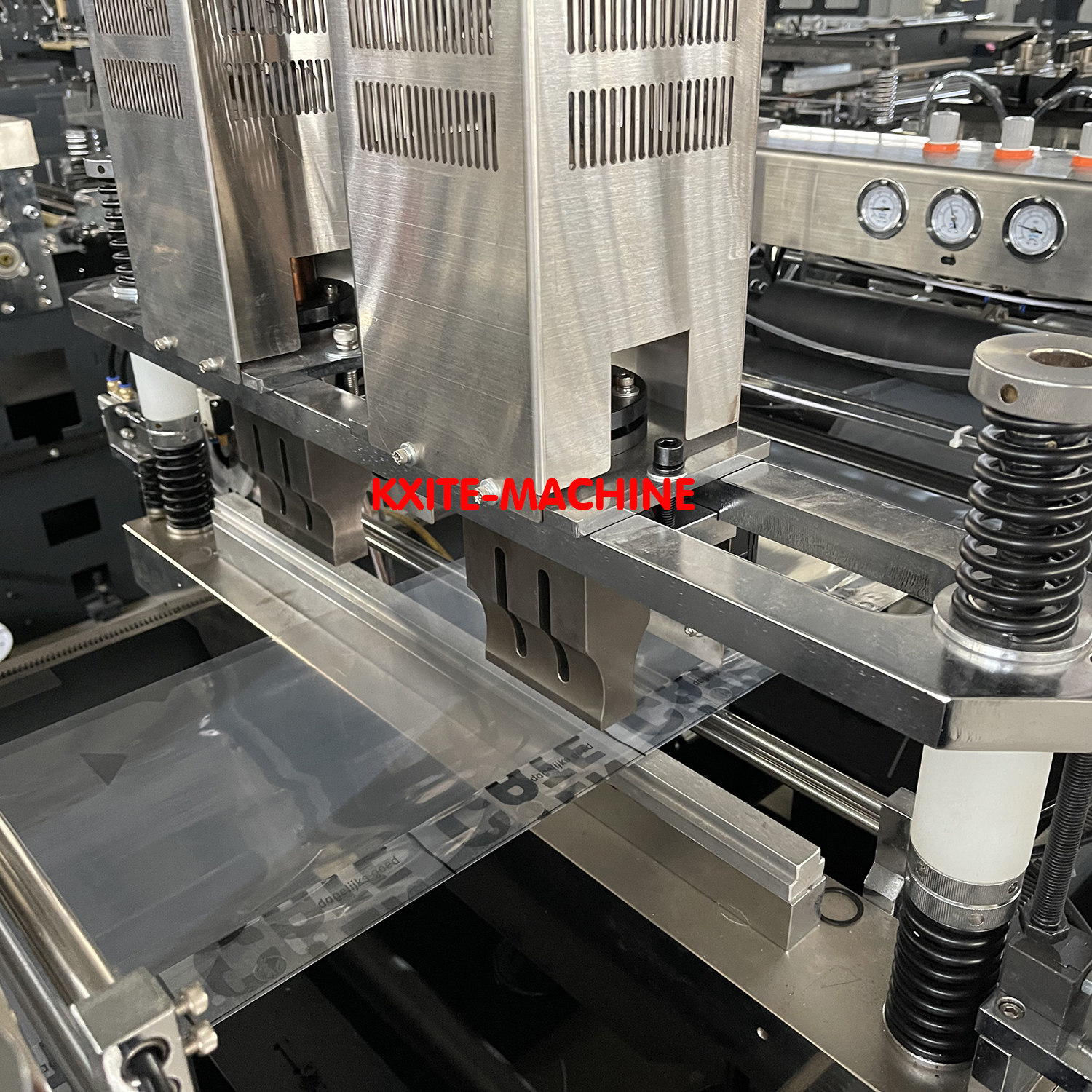

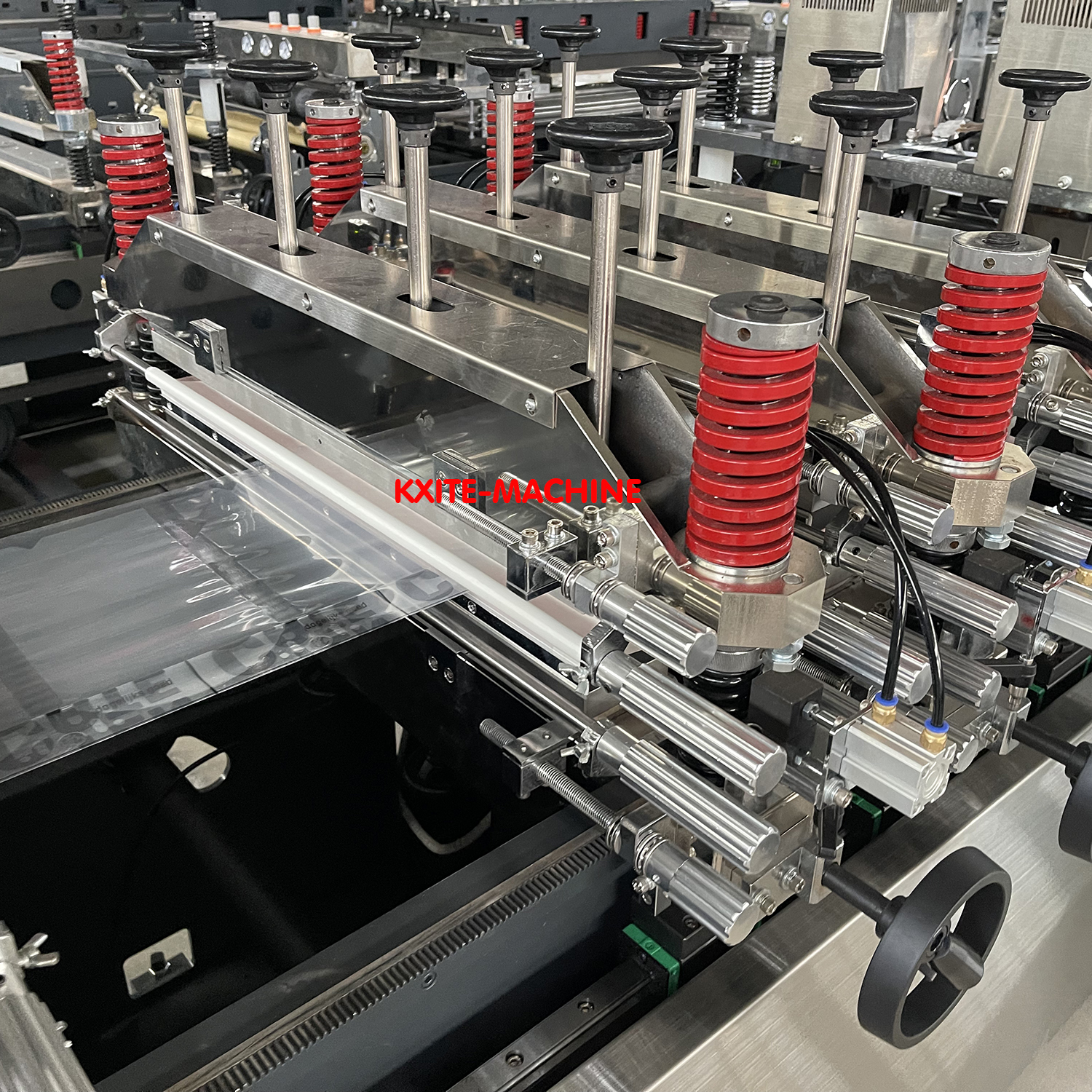

4.Main motor for up-down sealing and pressing equipped with inverter.

5.PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine interface.

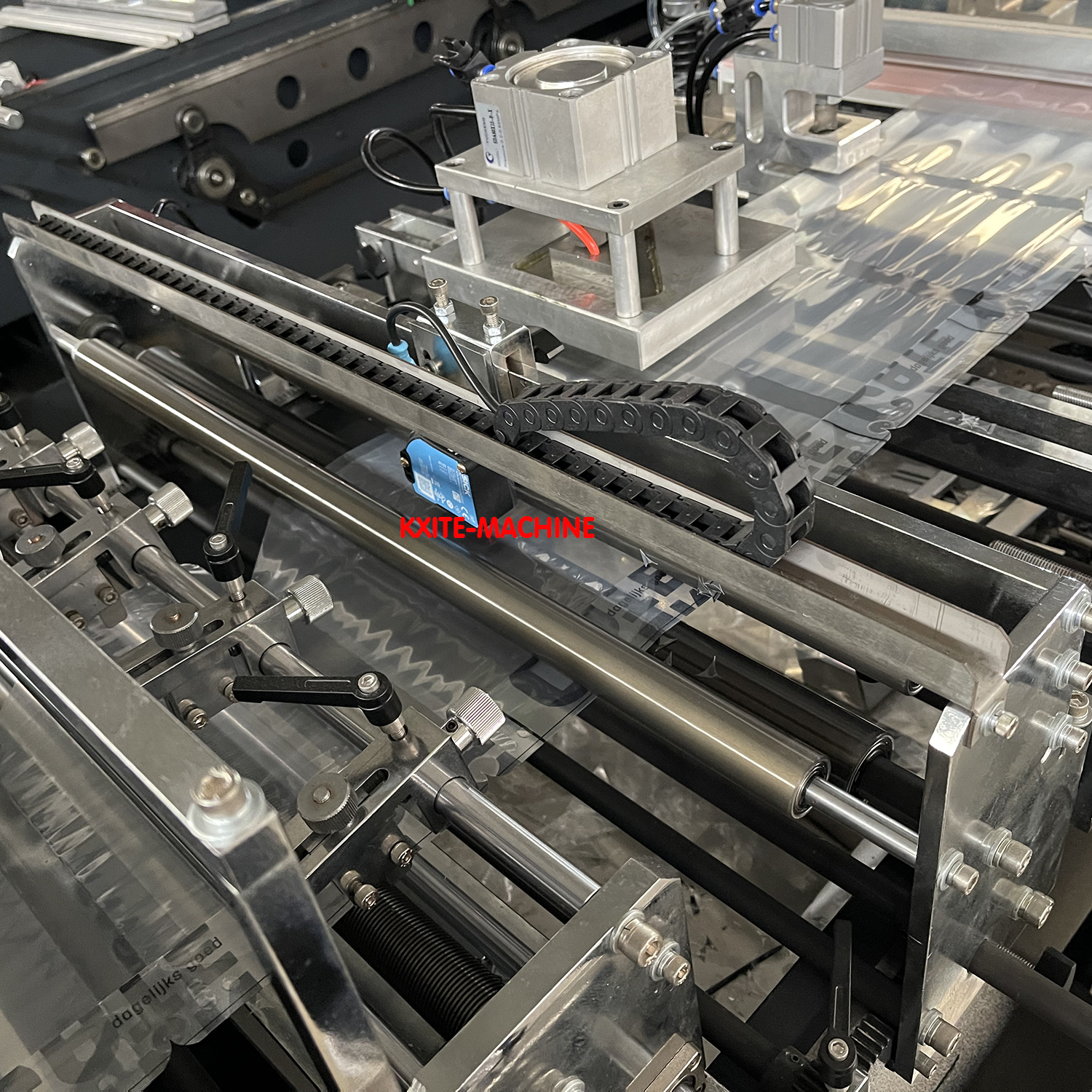

6.Equipped with Pneumatic multi-function auto punching device, trim cutting and auto rewinding and static eliminator

7.Temperature adjustment range: 0 ~ 300℃

8.Counter: quantity, batch accumulation, pre-set available.

9.Operation Method: by length fixation control and/or by photocell tracking control.

10.Punching device: working rtiythm can pre-set as continuous, interval or stop, punching time can be pre-set.

11.Material Skip Feeding: one to six times available.

12.Batch Conveying Function available, the quantity of batch can be preset.

MAIN TECHNICAL PARAMETERS

Model	ZUE400	ZUE600
Max. Diameter   Of Roll Material	600mm	600mm
Max.Width   Of Roll Material	850mm	1250mm
Max.Width   Of Bottm Base Material	160mm	160mm
Max.Capacity	150 cuts/min	150 cuts/min
Max.   Mechanical Speed	Approx.35m/min	Approx. 35m/min
Max.   Bag-making Width	400mm	600mm
Bag-making   Length	50-2400mm	50-2400mm
Total   Power	55Kw	65Kw
Weight Of   Machine	6500kg	7500kg
Overall   Dimension	L12500   xW2300xH1870mm	L12500   xW2500xH1870mm
