Max speed: | |
---|---|
Max size of packing: | |
Min size of packing: | |
Thickness of packing: | |
Film thickness: | |
Max. diameter of fim: | |
Availability: | |
Quantity: | |

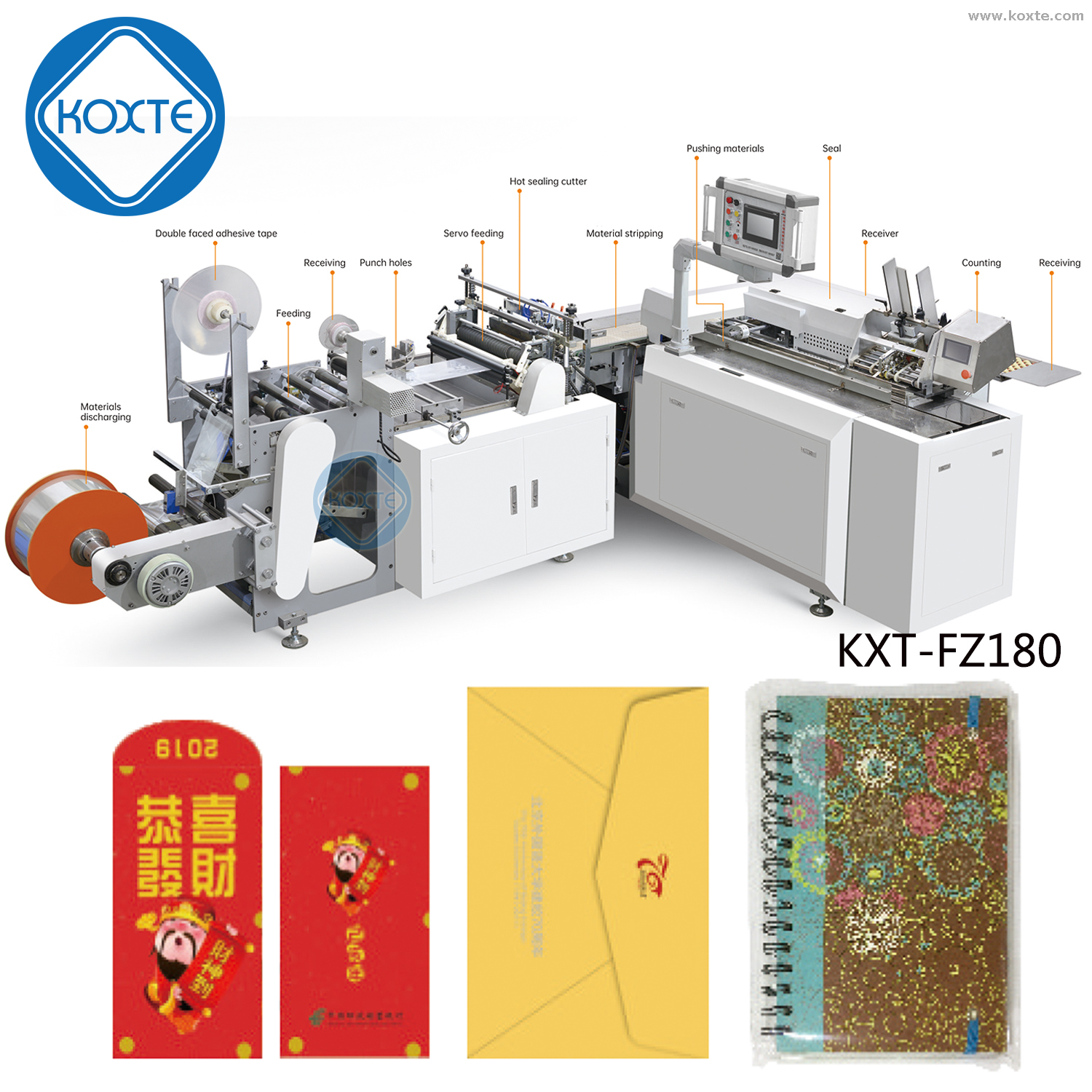

KXT-FZ180
KOXTE
8441309000
1. Quantity fixing: With Quantity counting function, according to the customer requirement, flling the fixed quantity inside the bag.
2. Bag making: With bag making machine. only feeding the plastic film, it can produce the bag directly according to the request, save the time and labour, and reduce the cost, increase the productions fficiency, and create the benefit.
3. Bag flling:The machine is controlled by PLC and servomotor, All actions are pneumatic, the structure is simple, and locating is fast. And it also can add the function of gluing, punching, ultrasonic ect, replace the manual operation absolutely.
Max speed | 60-80(bag/min) |
Max size of packing | 180*250mm |
Min size of packing | 60*70mm |
Thickness of packing | 2- 30mm |
Film thickness | 0.025-0.04mm |
Max. diameter of fim | 420mm |
OPP film specification | (Max): 190x250mm |
(Min): 70x70mm | |
Motor power | 12KW |
Machine weight | 2200KG |

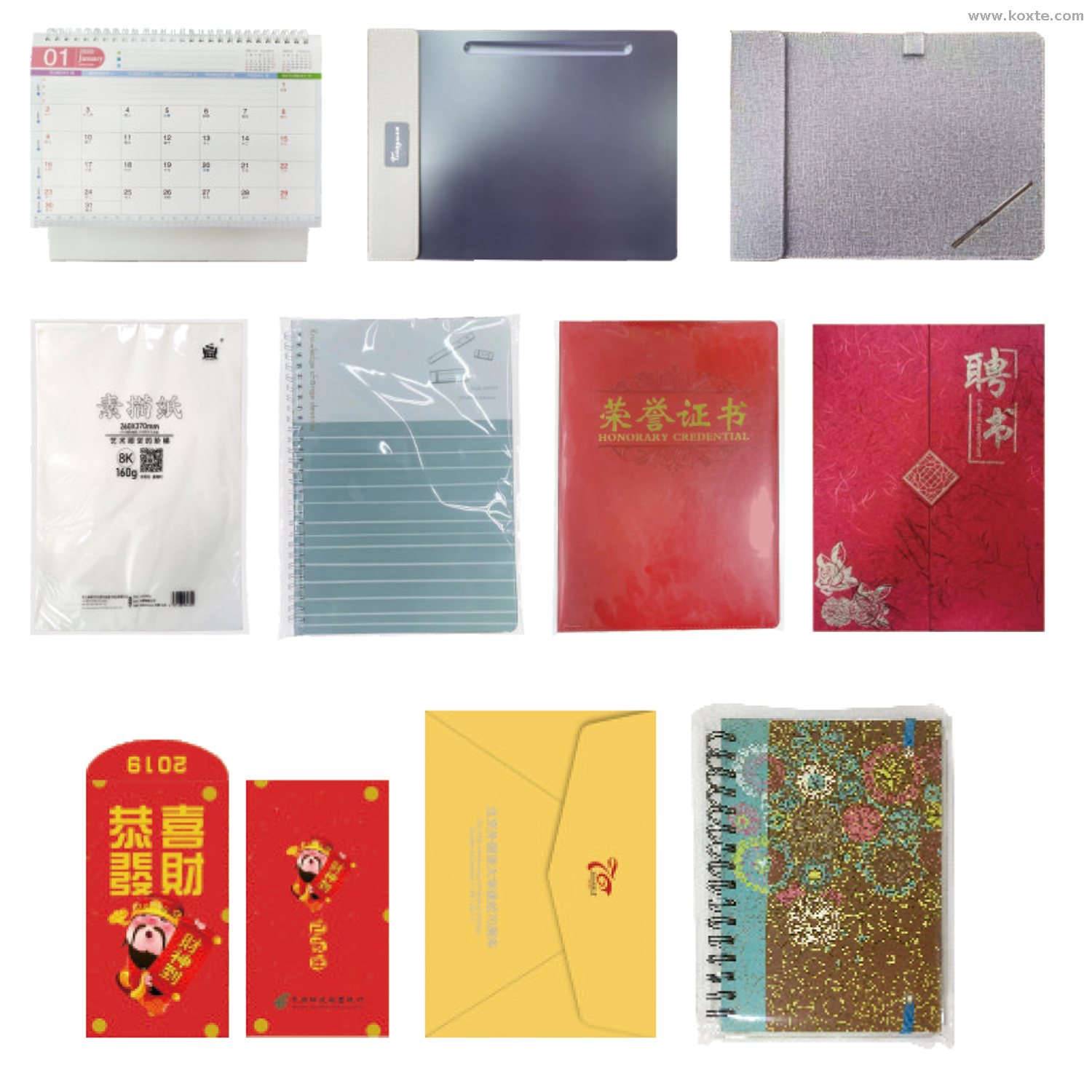

The production of the whole stack of sheets, (sheet products such as: red, postcards, greeting cards, tags and labels and envelopes; folded and the like products, such as: brochures, posters and all kinds of different sizes of folded products; the shaped products, such as: manual, book card, notebook, homework, cartoon booklet, magazines and various different sizes of the like products). According to the number of set (the number) automatically loaded into the bag.
2 homemade bag, black and white and printed bag.
3 automatic tape, automatic punching.
1. Quantity fixing: With Quantity counting function, according to the customer requirement, flling the fixed quantity inside the bag.
2. Bag making: With bag making machine. only feeding the plastic film, it can produce the bag directly according to the request, save the time and labour, and reduce the cost, increase the productions fficiency, and create the benefit.
3. Bag flling:The machine is controlled by PLC and servomotor, All actions are pneumatic, the structure is simple, and locating is fast. And it also can add the function of gluing, punching, ultrasonic ect, replace the manual operation absolutely.
Max speed | 60-80(bag/min) |
Max size of packing | 180*250mm |
Min size of packing | 60*70mm |
Thickness of packing | 2- 30mm |
Film thickness | 0.025-0.04mm |
Max. diameter of fim | 420mm |
OPP film specification | (Max): 190x250mm |
(Min): 70x70mm | |
Motor power | 12KW |
Machine weight | 2200KG |
The production of the whole stack of sheets, (sheet products such as: red, postcards, greeting cards, tags and labels and envelopes; folded and the like products, such as: brochures, posters and all kinds of different sizes of folded products; the shaped products, such as: manual, book card, notebook, homework, cartoon booklet, magazines and various different sizes of the like products). According to the number of set (the number) automatically loaded into the bag.
2 homemade bag, black and white and printed bag.
3 automatic tape, automatic punching.
