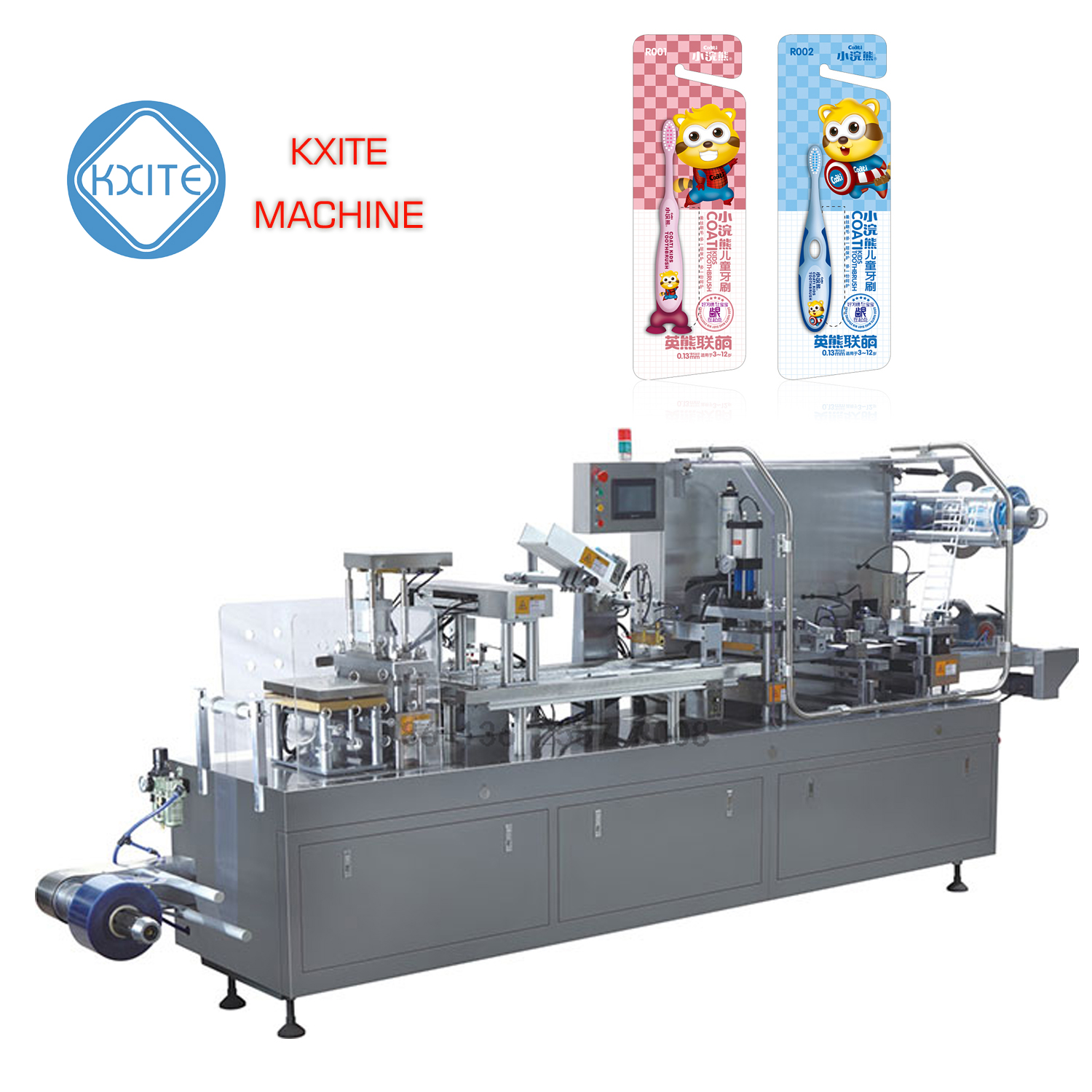

DZP-260
KXITE
8422303090
APPLICATION
FEATURES

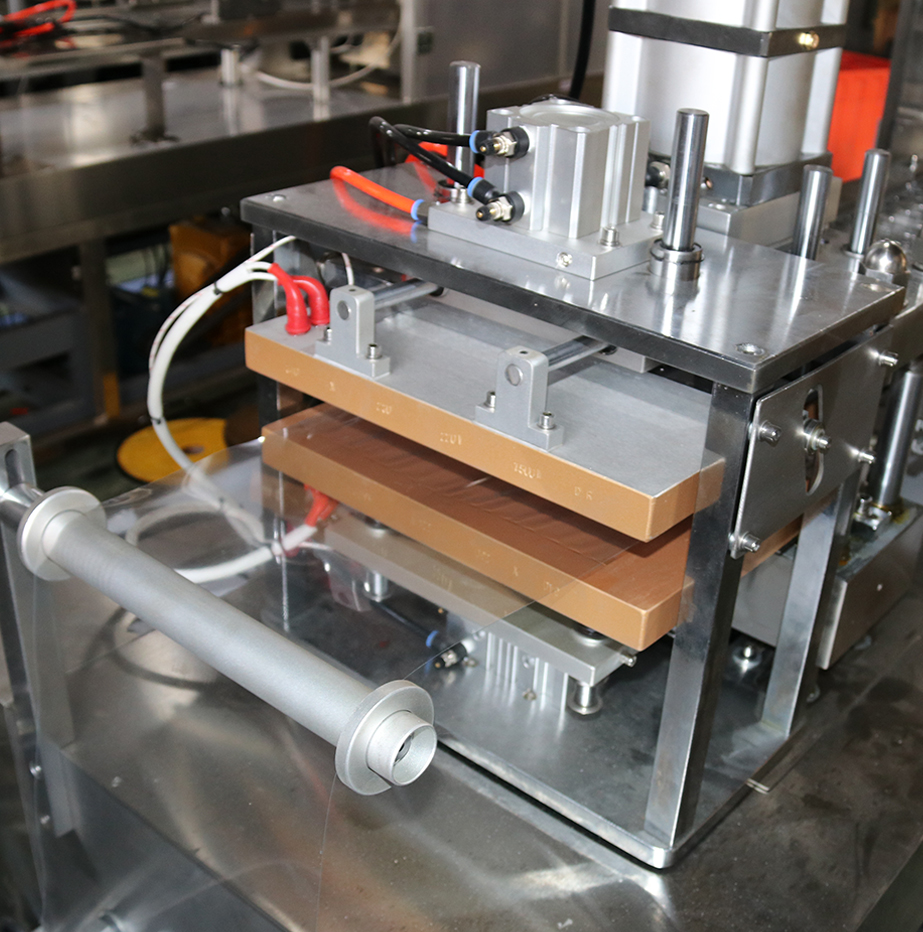

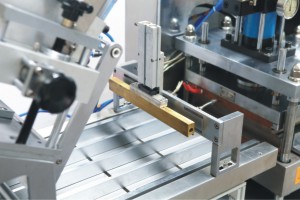

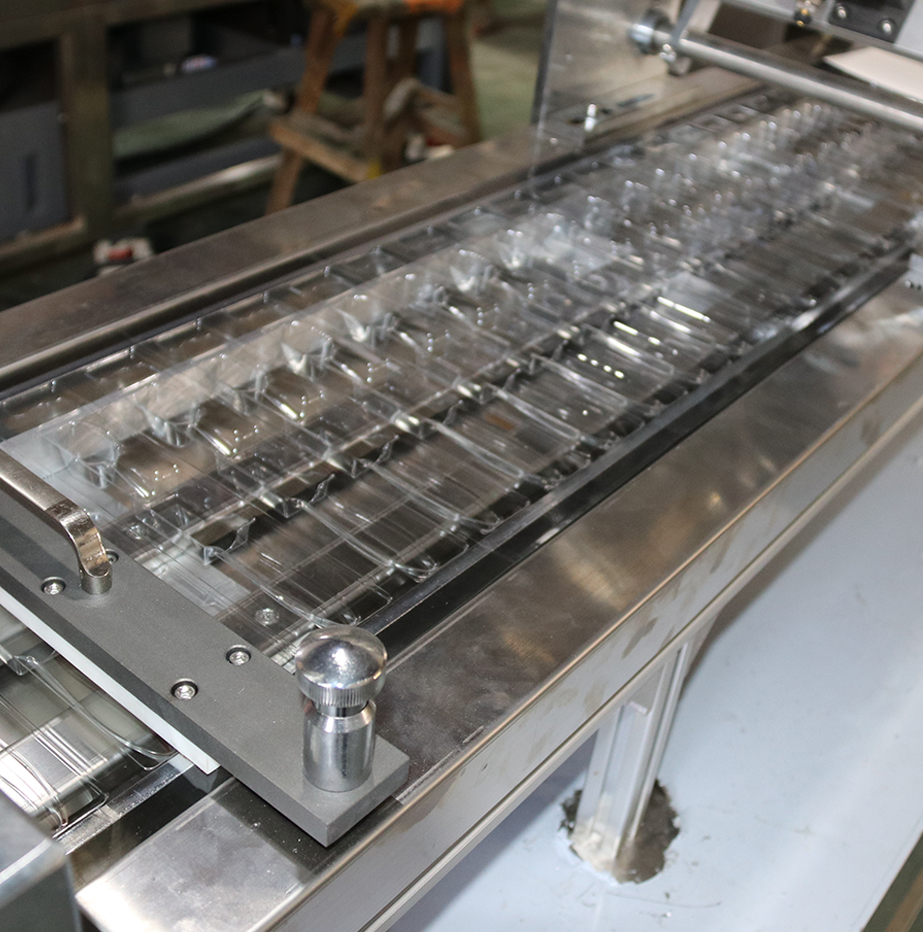

1. Automatic forming blister,cutting, dropping paper card, heat sealing, automatic product output and scrap collection.
2. Accurate temperature control module, PVC fragments and insufficient air pressure auto stop and automatic fault source for damaged electrical parts.
3. Human-machine interface and PLC control system, and is equipped with counting, starting password, fault reminder, maintenance reminder and other functions.
| Model | DZP-260 |
| Punch frequency | 10-20 time/min |
| Max Formed area and depth | 350x180x35 mm |
| Standard travel range | 30-180mm (adjustable) |
| Air pressure | 0.5-0.8Mpa |
| Air-compressor | More Than 0.22m3/min |
| Total power | 380V/220V 50Hz 5.5kw |
| Mould cooling | Tap water or recycle water |
| Overall dimension (L x W x H) | 4500×900×1650mm |
| Weight | 1800kg |
| Noise indicators | ≤75dBA |
APPLICATION
FEATURES
1. Automatic forming blister,cutting, dropping paper card, heat sealing, automatic product output and scrap collection.
2. Accurate temperature control module, PVC fragments and insufficient air pressure auto stop and automatic fault source for damaged electrical parts.
3. Human-machine interface and PLC control system, and is equipped with counting, starting password, fault reminder, maintenance reminder and other functions.
| Model | DZP-260 |
| Punch frequency | 10-20 time/min |
| Max Formed area and depth | 350x180x35 mm |
| Standard travel range | 30-180mm (adjustable) |
| Air pressure | 0.5-0.8Mpa |
| Air-compressor | More Than 0.22m3/min |
| Total power | 380V/220V 50Hz 5.5kw |
| Mould cooling | Tap water or recycle water |
| Overall dimension (L x W x H) | 4500×900×1650mm |
| Weight | 1800kg |
| Noise indicators | ≤75dBA |
