High Speed Roll To Sheet Paper Sheeting Machine

Share to:

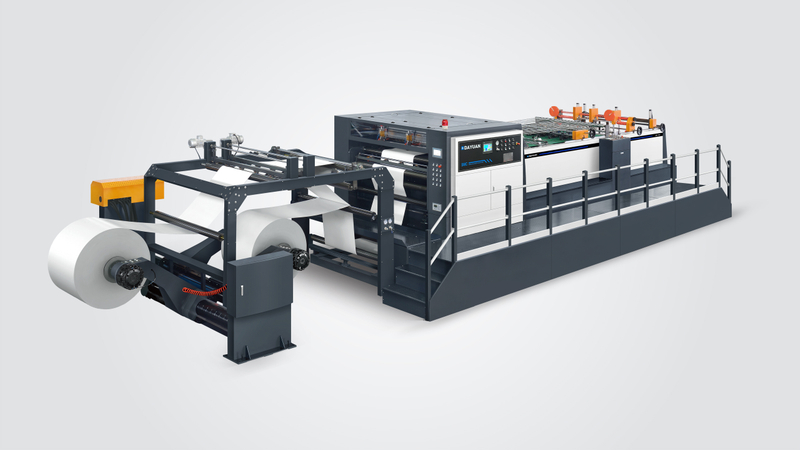

High Speed Roll To Sheet Paper Sheeting Machine

This machine is suitable for cutting the large coil packaging material, such as the paper, paper plastic complex material and color printing complex material, etc. This machine is widely used for application in the industries of paper processing and printing packaging.

Availability:

Quantity:



Inquire Add to Basket

Model:
SMC-1100/1500/1700
Brand:
KXITE

Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.

Auto positioning slitting system.
Paper pre-press device.
3 times delivery device(no impression line).
Collecting board pneumatic lifting device.

Partial Introduction

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

paper Sheeting Machine paper cutting machine Roll To Sheet cutting machine Roll Paper cutting Machine

Return

*Verify Code

Model	SMC-1100/1500/1700
Model of cutting paper	Double rotary sheeter
Thickness of cutting paper	80-1000GSM
Cutting length range	450-1650mm
The format of slitting	2 sheet(Optional)
Cutting precision	Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1%
Max. cutting meter speed	330 m/min
Max. cutting speed	540 cuts/min
Max. scroll diameter	1800mm
Max. paper cutting width	1100(45”)mm 1500(59”)mm 1700(67”)mm
Max. paper piling height	1600mm
The request for air compressor	0.8Mpa
Power consumption	380V/220VⅩ50Hz
Gross weight	21000/23000/26000kgs
Full-load power	75/88/88kw

Cutting Length(mm)	Speed(m/min)	Speed(cuts/min)
450	125	275
500	160	315
600	210	350
650	250	380
700	290	410
750	330	440
800	330	410
900	330	365
1000	330	330
1100	310	280
1200	300	250
1300	300	230
1400	300	210
1500	300	195
1600	300	188
1650	300	185
