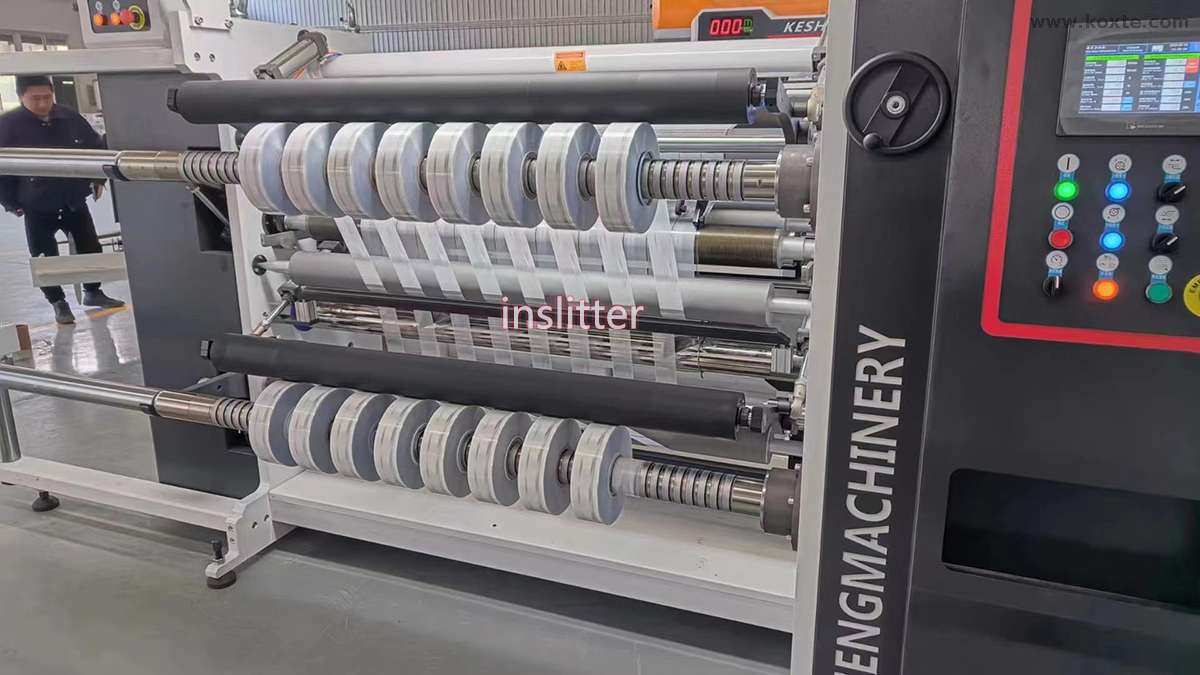

This model of slitting rewinding machine is a perfect and ideal machine for slitting small scale materials, such BOPP, PVC, PET, PE, laminated Aluminum foil etc. The main motor adopts variable frequency speed regulation, to use the constant tension magnetic powder control, auto photoelectric edge correction, two units of magnetic powder clutches connect with one motor for rewinders. It has function of auto stop when rolls finish, meter counting, set the length or diameter for stop etc. The rewinder shafts can be changed to have 1inch, 2inch or 3inch etc. Main machine use PLC control, with touch screen for operate.
Main technical parameter:
| Jumbo roll width | 600mm /1000mm |
| Diameter of roll | Φ800mm (unwinder diameter can be bigger as client need) |
| Diameter of rewinding | Φ400mm |
| Diameter of Rewinder paper core | 3" |
| Mechanical Slitting speed | 0-250m/min |
| Tolerance of EPC | ≤0.1mm |
| Min. width of produce | 20mm |
| Total power | 10KW |
| Weight | 2000Kg |
| Size of the Machine(W*L*H) | 2300*2370*1300mm |
This model of slitting rewinding machine is a perfect and ideal machine for slitting small scale materials, such BOPP, PVC, PET, PE, laminated Aluminum foil etc. The main motor adopts variable frequency speed regulation, to use the constant tension magnetic powder control, auto photoelectric edge correction, two units of magnetic powder clutches connect with one motor for rewinders. It has function of auto stop when rolls finish, meter counting, set the length or diameter for stop etc. The rewinder shafts can be changed to have 1inch, 2inch or 3inch etc. Main machine use PLC control, with touch screen for operate.
Main technical parameter:
| Jumbo roll width | 600mm /1000mm |
| Diameter of roll | Φ800mm (unwinder diameter can be bigger as client need) |
| Diameter of rewinding | Φ400mm |
| Diameter of Rewinder paper core | 3" |
| Mechanical Slitting speed | 0-250m/min |
| Tolerance of EPC | ≤0.1mm |
| Min. width of produce | 20mm |
| Total power | 10KW |
| Weight | 2000Kg |
| Size of the Machine(W*L*H) | 2300*2370*1300mm |
