Kraft Honeycomb Paper Mailing Bag Making Machine

1. The surface paper (Outside Kraft paper) and the inner side paper must be 110g/m² Kraft paper.
2. Because of the original honeycomb paper width is under 500mm, when making different size of bags, have to lap joint the redundant paper in the middle.
3. The glue for heat seal after folding can be provided by our company.
Availability:
Quantity:
  • KXT-FW800

  • KOXTE

  • 8441309000

4微信图片_20220822065839

1. This machine is special designed for making bags which laminate the Kraft paper and Honeycomb paper by glue.

2. Bag making method: Fixed the Kraft paper and honeycomb paper (by stretching) into two layers of Kraft paper by fixed point glue spraying method, and then by, second gluing, folding and cutting into a environmentally cushion bag which used in express industry.
3. This machine uses multi point advanced motion controller technology. It is controlled by computer program from film unwinding to cutting. This machine is a high-quality, easy-operational and professional one to make good-looking a, durable and environment-friendly bags.

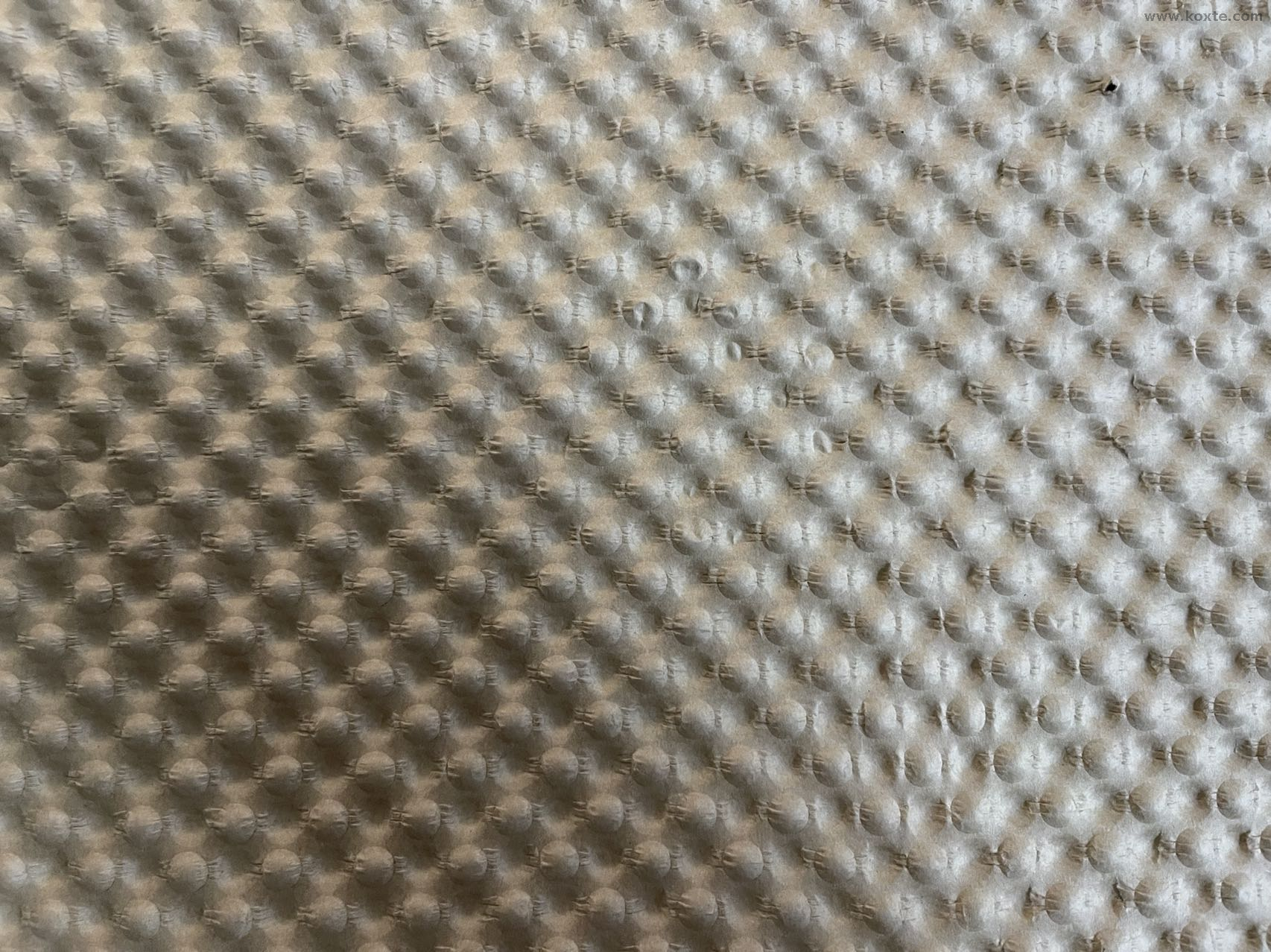

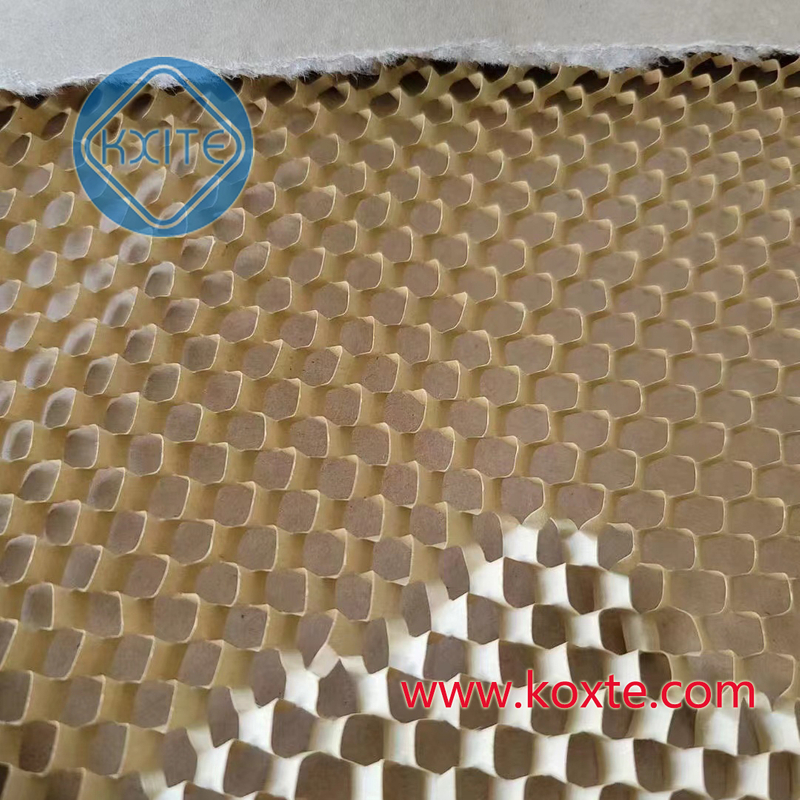

Honeycomb paper is eco-friendly and cost effective alternative for plastic bubble wrap cushioning.It is easy to stretch,more soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers,glassware etc.


Suitable bags profession0al designed for honeycomb cushion bags.
Mechanical speed 1000-1500pcs/hour(Note: the actual speed of making bags may differ according to the size of bags)
Max width of bag (Height of bag) One line: 550mm (including the envelope flap)
Double line: 300mm (including the envelope flap)
Maximum length of bag (width of bag) 500mm
Maximum width of unwinding Kraft paper: 1200mmX2, honeycomb paper 500mmx4
Maximum diameter of unwinding Kraft paper 1000mm, honeycomb paper 500mm
Machine weight 17000KGS
Overall Dimension 30000X2300X2400mm
Power required 60KW
Voltage 380V 50Hz Three Phase Five wire


Wenzhou Kxite Machinery Technology Co., Ltd. was established in 2010 and is committed to the development and production of environmentally friendly paper bag equipment. Provide customers with professional technical consultation, installation and commissioning, training and operation, and a whole set of professional service system.
As a manufacturer of paper bag machines serving the world, we always put quality innovation first, from R&D design, parts procurement, assembly production, quality inspection and evaluation, sales to after-sales and other systems, to truly meet customer needs
Precise sales, think what you think
By inspecting the global paper bag production status, comprehensively considering the suggestions of printing and packaging industry veterans, according to the actual needs of different customers, we design and produce a variety of configuration models, allowing customers to choose flexibly.
Excellent R&D management
We have an excellent R&D design team and excellent management talents in the packaging industry. We fully understand the actual needs of the packaging industry, ensuring that every piece of equipment we manufacture can be affirmed by customers and create greater benefits.
After-sale guarantee
Provide customers with comprehensive and timely after-sales service and a sense of service in the end.
