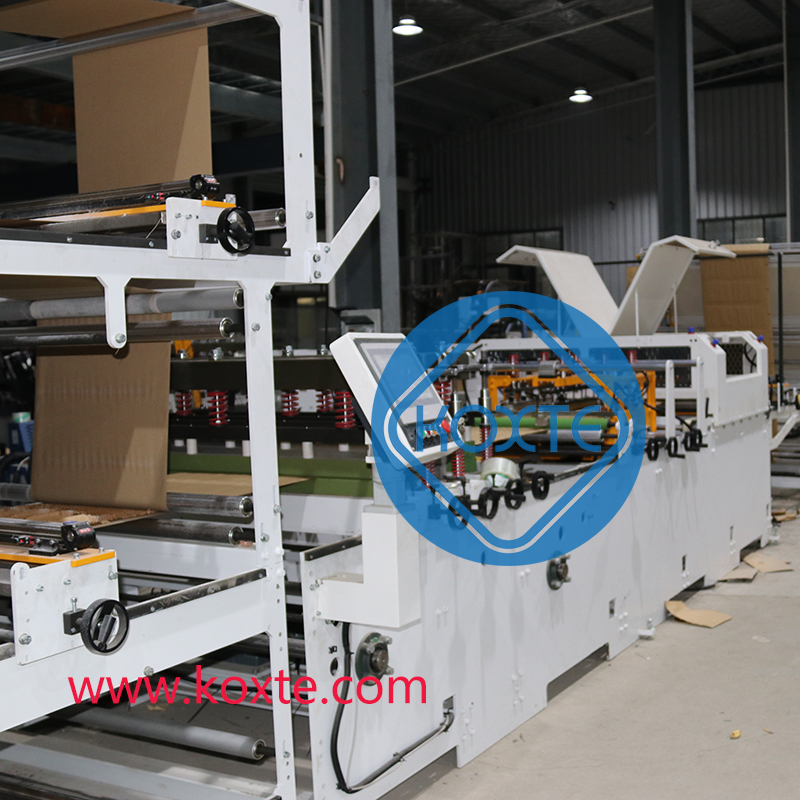

Kraft Honeycomb Paper Padded Envelope Making Machine

This machine is special designed for making bags which laminate the Kraft paper and Honeycomb paper by glue.
Bag making method: Fixed the Kraft paper and honeycomb paper (by stretching) into two layers of Kraft paper by fixed point glue spraying method, and then by, second gluing, folding and cutting into a environmentally cushion bag which used in express industry.
Availability:
Quantity:
  • KXT-FW800

  • KOXTE

  • 8441309000

1. This machine is special designed for making bags which laminate the Kraft paper and Honeycomb paper by glue.

2. Bag making method: Fixed the Kraft paper and honeycomb paper (by stretching) into two layers of Kraft paper by fixed point glue spraying method, and then by, second gluing, folding and cutting into a environmentally cushion bag which used in express industry.

3. This machine uses multi point advanced motion controller technology. It is controlled by computer program from film unwinding to cutting. This machine is a high-quality, easy-operational and professional one to make good-looking a, durable and environment-friendly bags.

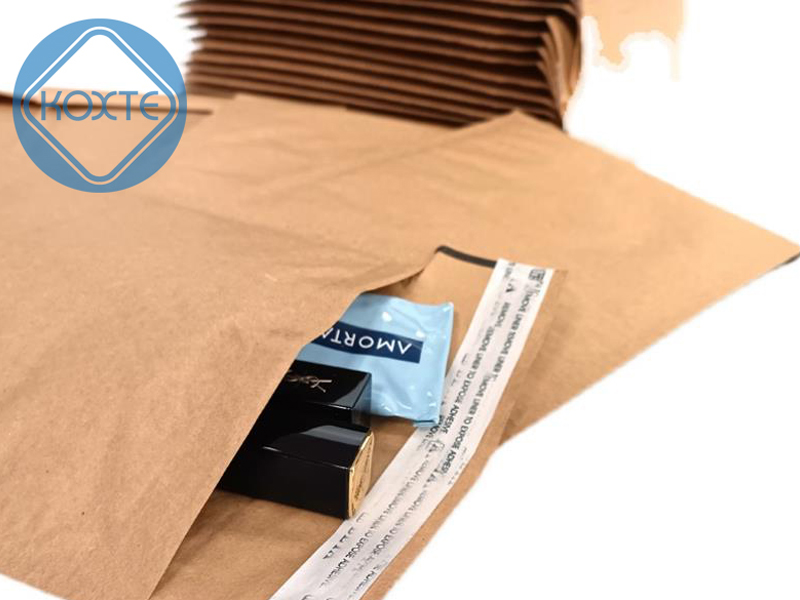

Sample:

1233

Suitable bags

profession0al designed for honeycomb cushion bags.

Mechanical speed

1000-1500pcs/hour(Note: the actual speed of making bags may differ according to the size of bags)


Max width of bag (Height of bag)

One line: 550mm (including the envelope flap)

Double line: 300mm (including the envelope flap)

Maximum length of bag (width of bag)

500mm

Maximum width of unwinding

Kraft paper: 1200mmX2, honeycomb paper 500mmx4

Maximum diameter of unwinding

Kraft paper 1000mm, honeycomb paper 500mm

Machine weight

17000KGS

Overall Dimension

30000X2300X2400mm

Power required

60KW

Voltage

380V 50Hz Three Phase Five wire

Sample:

13416-9
