Paper Air Freshener Hangtag Eyelet Punching Machine

It applies to various shapes of plastic, cloth, cotton, PVC, paper tag Elevators automatic punching forming, threading, tie a knot and hang tag,
points to complete a series of processes automated production machine for Europe, America , Korea, France, Germany, Africa countries all kinds of tag, Elevators process.
Use industry: service, gifts, food, alcohol, credit card issuers and other industries tag. Simple, safe, high production efficiency,
the use of wire: cotton, phone hanging wire, gold thread, silver thread, nylon lines.paper air fresh perfume,car Perfume Air Freshener
speed:
Hang tag min/max size:
Hang tag height:
Rope diameter:
Rope length:
Tag hole diameter:
Tail length:
Availability:
Quantity:
  • KXT-TP180

  • KOXTE

  • 8441309000

covering technology currently on the market similar machines;

the body in all steel structure, solid perfect, to ensure stable operation of equipment;

machine through improvements to achieve the perfect knot can not afford,  do not send cards tag line smoothly, greatly improving the stability;

has a higher security measures to ensure the safety of personnel.

knotting system developed by our company to achieve a fully mechanical structure movement

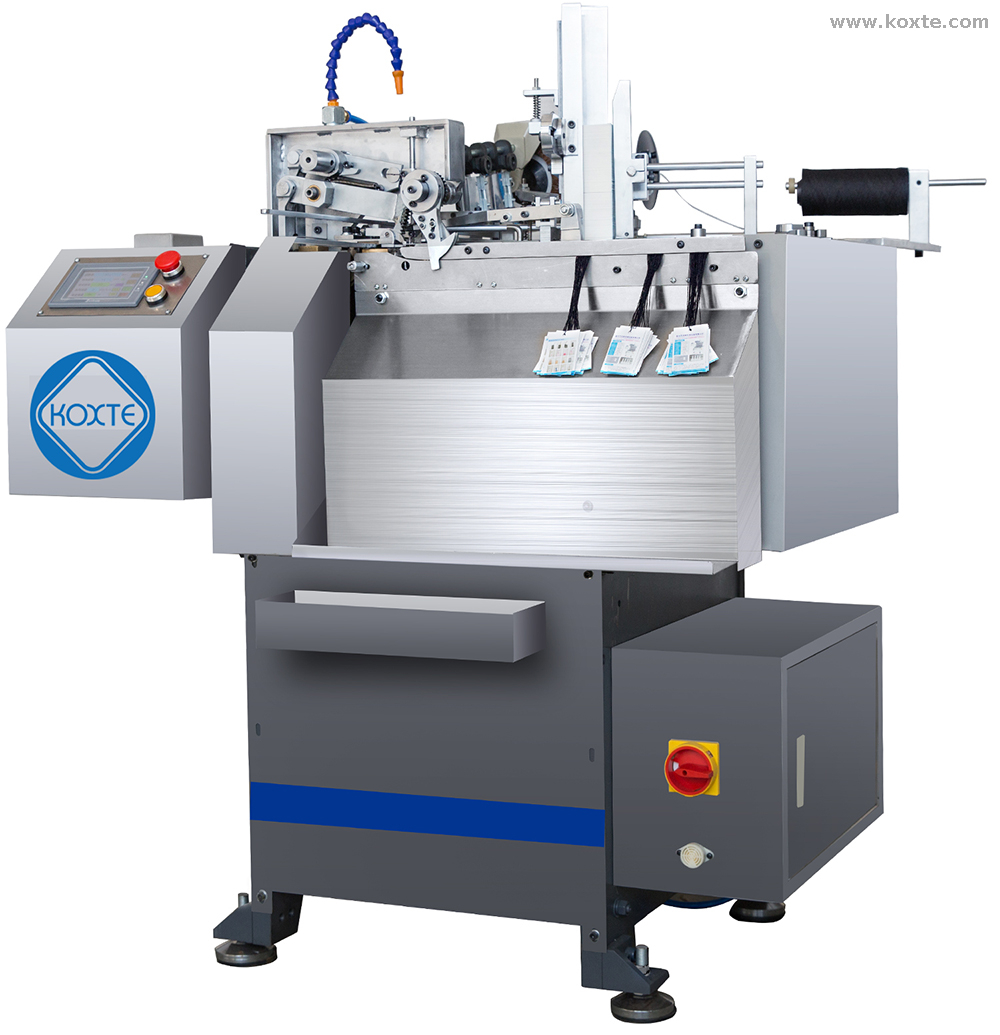

This high speed automatic hang tag threader machine is specifically designed for PVC Label or PP label which is use for flour, fruit, vegetable, plant etc field. It is cold cutting for elastic cord with standard feeder.

Automatic tags feeding ,hole punching, stringing, knotting and counting at one time. It can completely solve the trouble from manual stringing and manual knot tying.

It adopts PLC control or button press control. It is with high speed, stable running and easy to operate. The products which made from this machine are perfect, uniform and good quality. It is professional machine for printing packaging field.

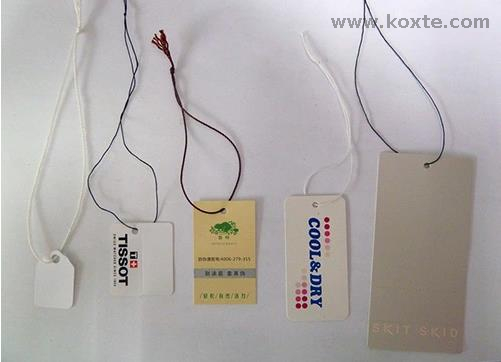

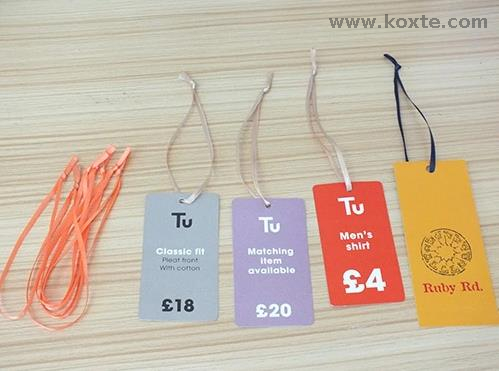

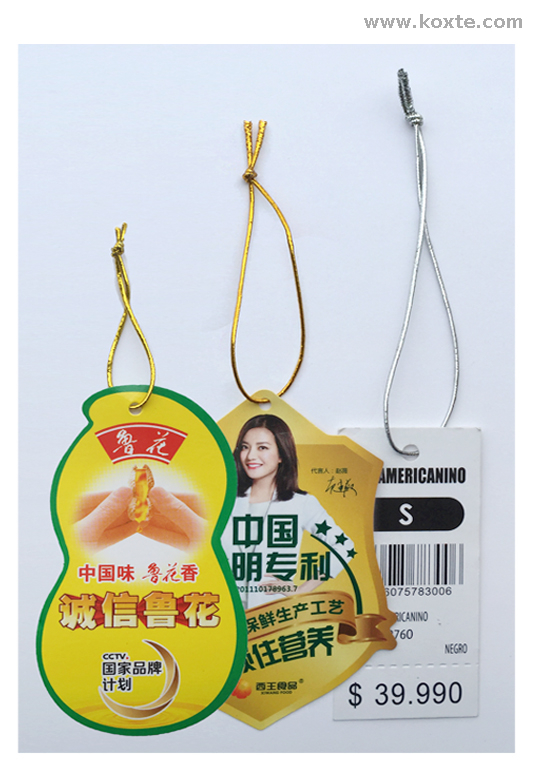

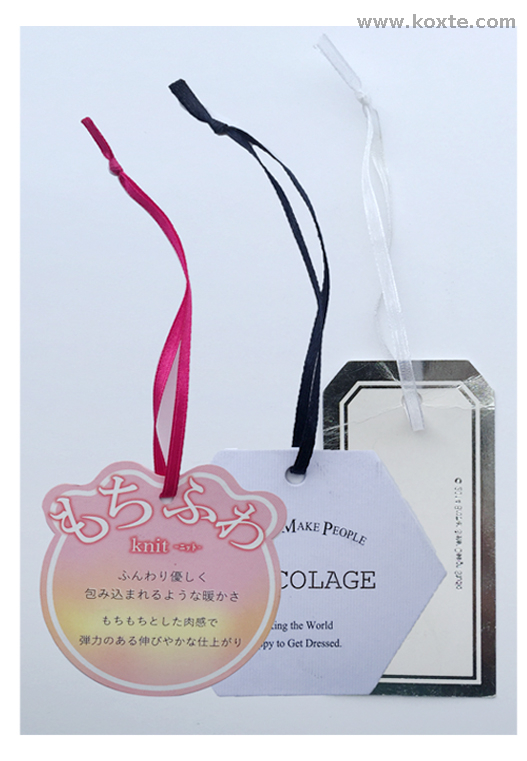

Sample:

s-1横幅-1

Speed

3000~3500PCS/h

Hang tag min/max size

30*35~95*150mm

Hang tag height

230mm

Rope diameter

0.3~1.2mm

Rope length

80~200mm

Tag hole diameter

3mm~5mm adjustable/mm

Tail length

15mm~18mm

Hang tag thickness

G 150~700

Machine size

1300mm*1000mm*150mm

Machine weight

550KG

Power supply

220v/380
