Paper Cup Roll Die Cutting Machine For Flexo Printer

Model	970
Max Paper Width	950mm
Cutting Precision	±0.20mm
Paper Gram Weight	120-400g/㎡
Production Capacity	100-180times/min
Air Pressure Requirement	0.6Mpa
Air Pressure Consumption	0.25m³/min
Max Roller Diameter	1600mm
Flexo Print Units (IR dryer)	2 - 6 Colors
Web Guiding	1
Printing Repeat Length	10” - 22.5”
Gear Pitch	1/8” (3.175mm)

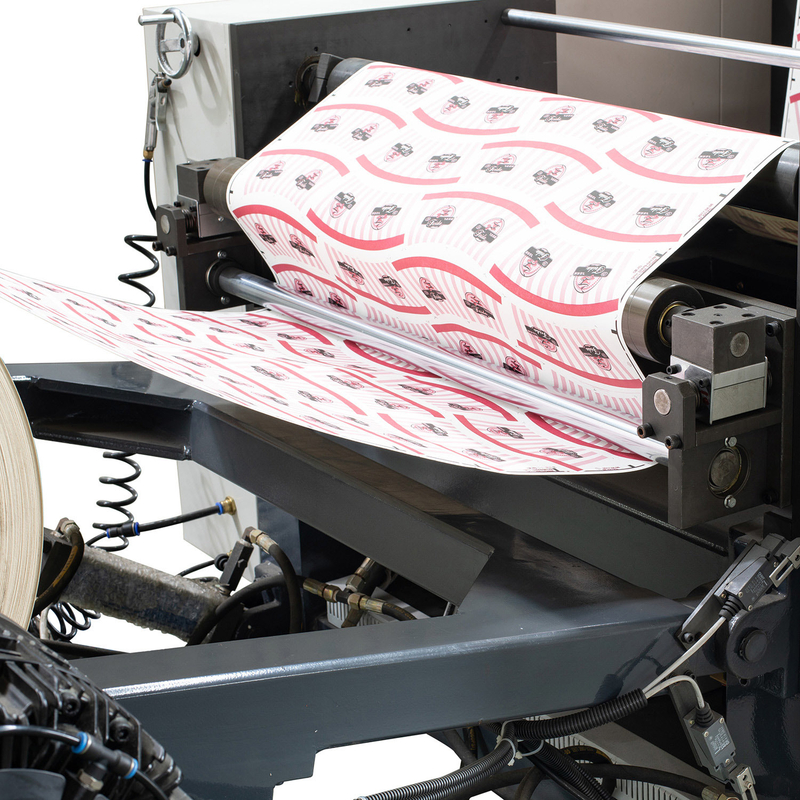

1)Adopt the anilox roller to spread ink.

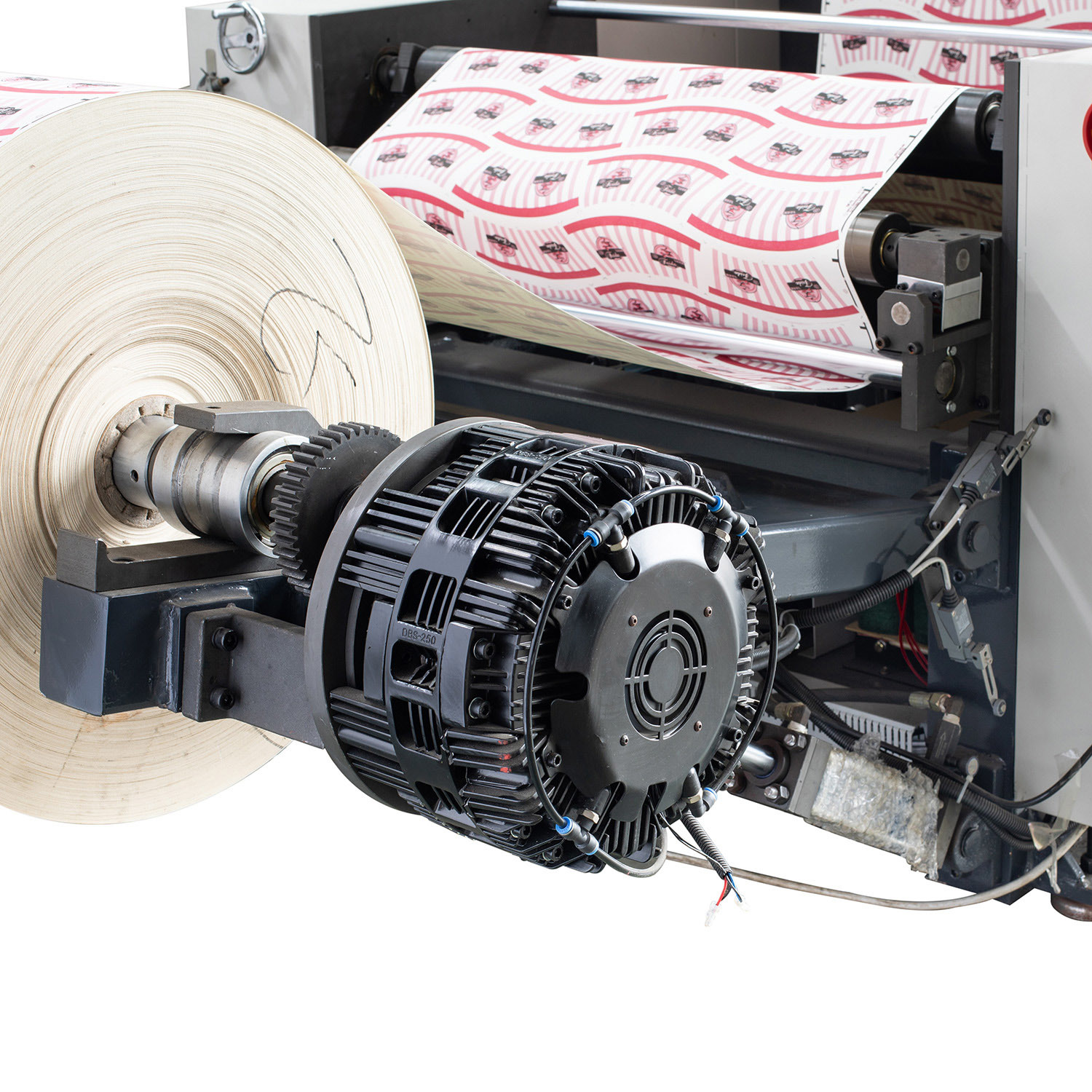

2)Unwinding tension is controlled by automatic tension controller from Japan Mitsubishi.
3)Each printing unit adopt 360°for registration.
4)Each printing unit have one IR dryer
5)The rubber roller can break away automatically while parking, and run at a low speed in order to avoid ink being dry.
6)The main motor is adopted the import stepless regulation of frequency conversion.
7)Web guiding,printing, IR drying and punching can be finished in one process
