SMC 1900 Servo Precision Double-Helix High Speed paper Sheet Cutter Machine

Share to:

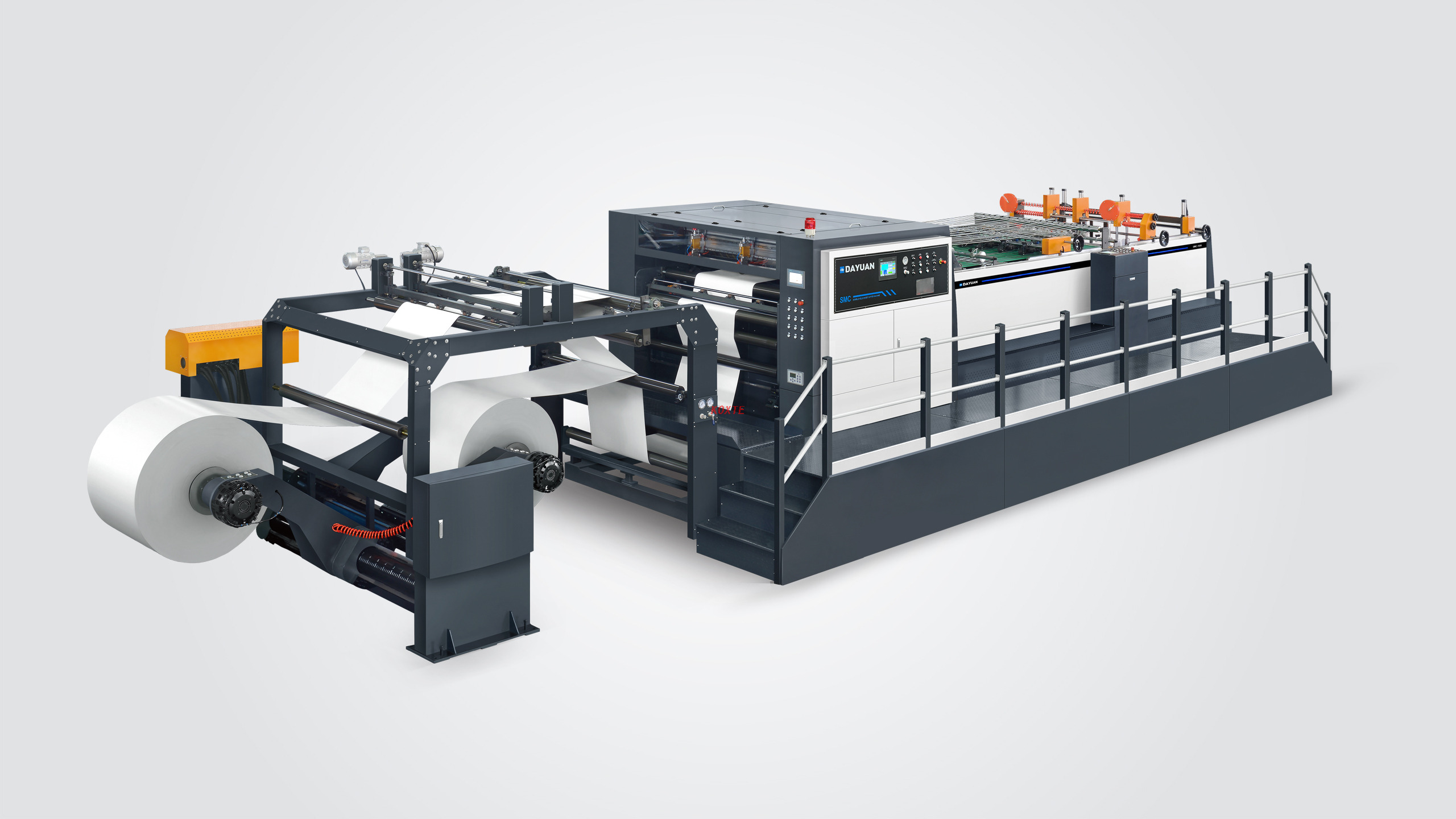

SMC 1900 Servo Precision Double-Helix High Speed Paper Sheet Cutter Machine

Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.

Availability:

Quantity:



Inquire Add to Basket

Brand:
KOXTE

Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.

Auto positioning slitting system.
Paper pre-press device.
3 times delivery device(no impression line).
Collecting board pneumatic lifting device.

Partial Introduction

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

paper Sheet Cutter Machine paper Sheet Machine paper Cutter Machine Roll to Sheeting Machine

Return

*Verify Code

Model	SMC-1900
Model of cutting paper	Double rotary sheeter
Thickness of cutting paper	80-1000GSM
Cutting length range	450-1650mm
The format of slitting	2 sheet(Optional)
Cutting precision	Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1%
Max. cutting meter speed	300 m/min
Max. cutting speed	385 cuts/min
Max. scroll diameter	1800mm
Max. paper cutting width	1900(75”)mm
Max. paper piling height	1600mm
The request for air compressor	0.8Mpa
Power consumption	380V/220VⅩ50Hz
Gross weight	28000kgs
Full-load power	106kw

Cutting Length(mm)	Speed(m/min)	Speed(cuts/min)
450	100	210
500	110	220
600	155	260
700	230	320
750	290	385
800	300	380
900	300	345
1000	300	300
1100	290	265
1200	280	235
1300	260	210
1400	260	190
1500	260	175
1600	250	160
1650	250	155
