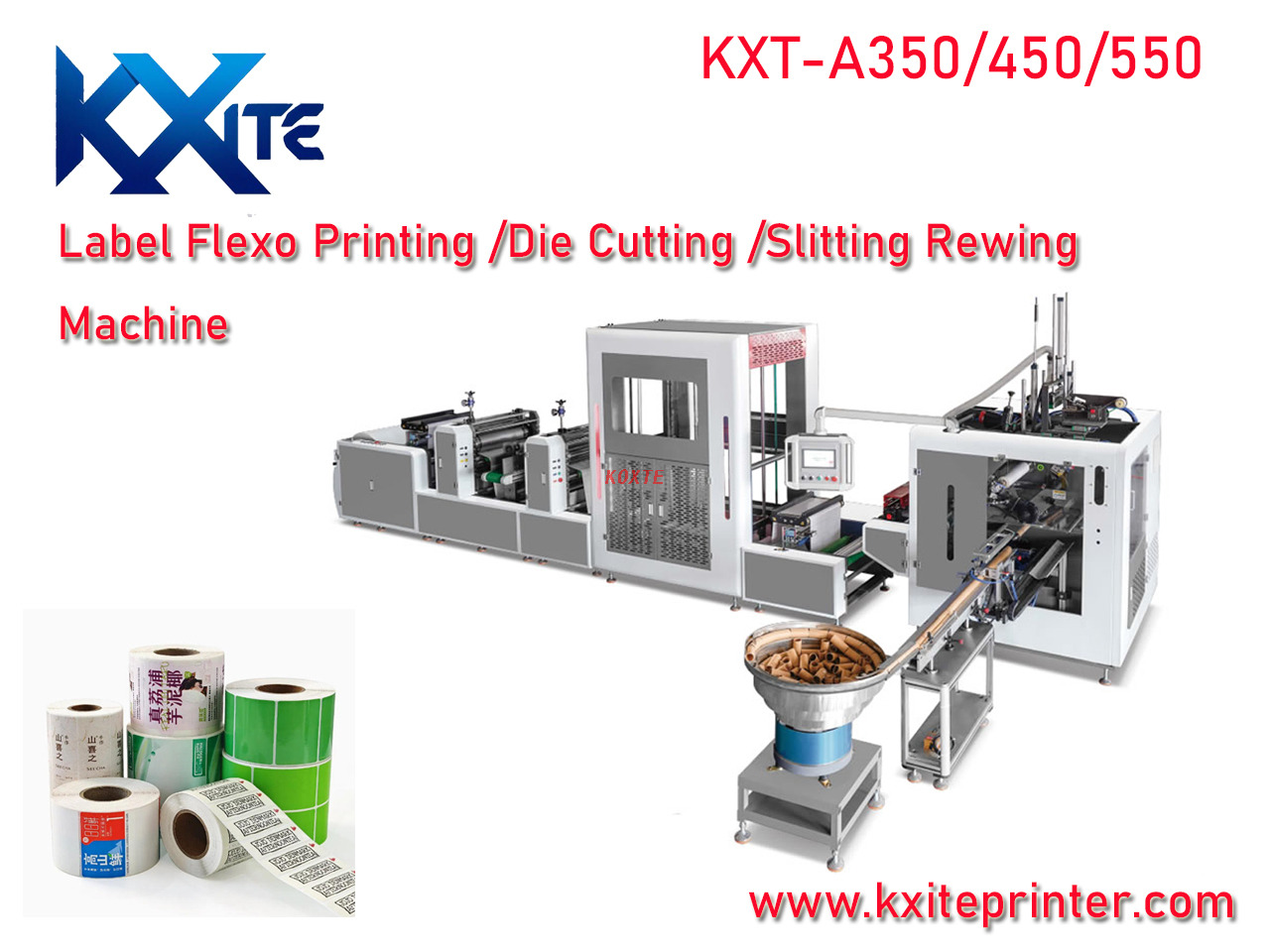

A350/450/550
KXITE

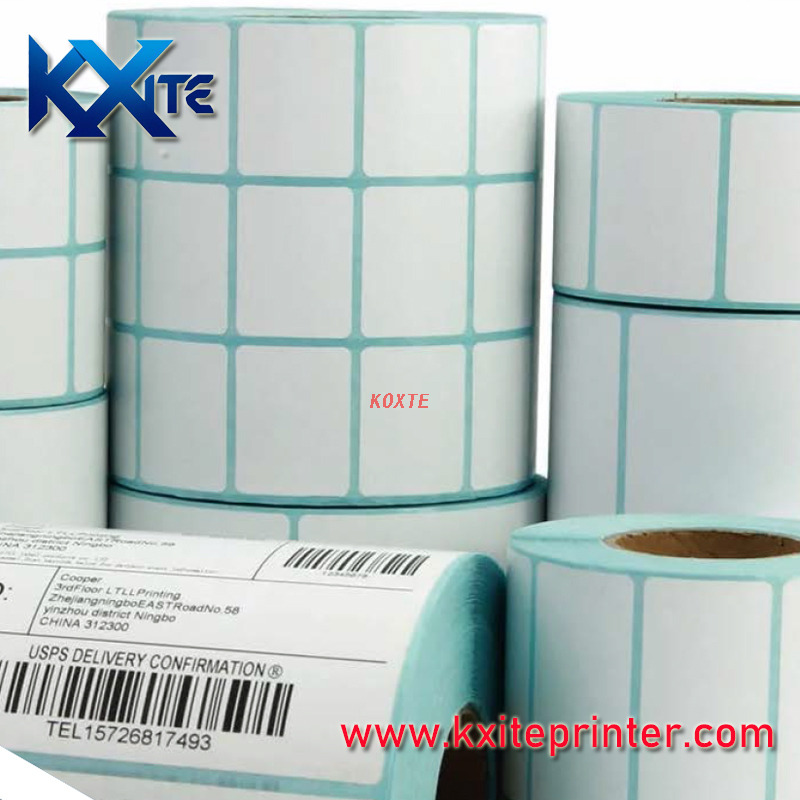

full auto Turret Rewinder is designed with 4 air shafts to improve producing efficiency and saving the cost of workers. This machine is mainly used for adhesive label production, usually work with printing machine, die cutting and slitting machines
EQUIPMENT PARAMETERS：
Model | KXT-A550 | KXT-A450 | KXT-A350 |
Max. Unwinding Diameter | 1200mm | 1200mm | 1200mm |
Max. Unwinding Width | 600mm | 500mm | 400mm |
Max. Winding Diameter | 250mm | 250mm | 250mm |
Max. Winding Width | 550mm | 450mm | 350mm |
Machine Speed | 80-150mm/min | 80-150mm/min | 80-150mm/min |
Machine Wattage | Approx. 25KW | Approx. 25KW | Approx. 25KW |
Stocker | Approx.25m | Approx.25m | Approx.25m |
Air Pressure | 0.6map | 0.6map | 0.6map |
Voltage | 380v 50HZ | 380v 50HZ | 380v 50HZ |
Air-expanding Shaft For Winding | Optional | Optional | Optional |
Die-cutting Roller | Optional | Optional | Optional |
Machine Dimensions | 8200*3500*2300mm | 8200*3250*2200mm | 8200*3000*2100mm |
