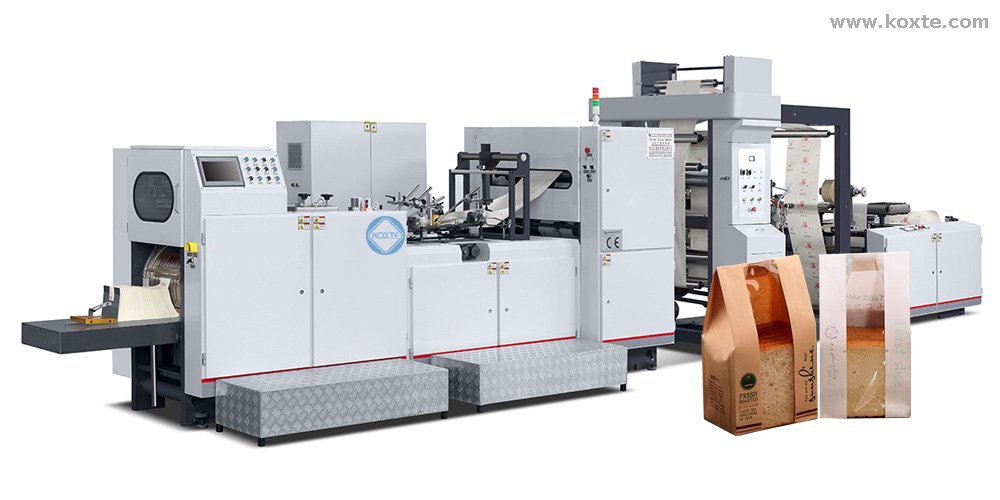

V Shape Bottom Food Paper Bag Making Machine With 2 Colors Printing

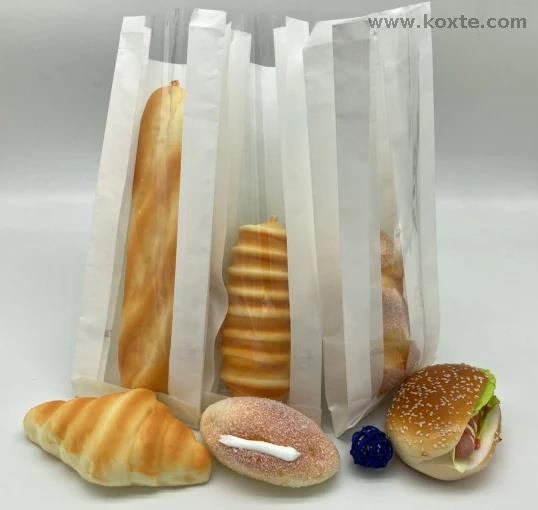

This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald's bags.
Width of Bag Bottom :
Max.Speed .:
Total Power:
Paper weight:
Width of Paper roll:
Availability:
Quantity:
  • SBR-330

  • koxte

  • 8449009000

This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald's bags.

1) This machine adopts touch screen man-machine interface, regardless of correction, trimming can be arbitrarily set, alarm and operation state displayed on screen, easy to operate. The operation interface, English can be switched with each other.
2) With a touch screen and man-machine interface using the China PC programmable control system, real-time working status display.
3) Set the original China servo motor control with long motor, is making more stable.
4) Printing color tracking system, using the German color photoelectric tracking precision, with automatic calibration function.
5) Photoelectric sensor limiting automatic control system, speed correction roll on saving the machine adjusting time and reduce waste.
6) Magnetic powder tension control with automatic constant tension control system, automatic calculation of roll diameter to achieve constant tension control
7) Material handling with pneumatic lifting structure combination, can save manpower and reduce the loading and unloading time.
8) This machine adopts Germany original electrical system, to ensure the machine more stable.
9) Safety protection design of the machine has a new humanity; full face cover design, fully guarantee the safety and product operator environment.

MODEL


SBR-330


Width of Bag Bottom


60-160 mm


Max.Speed .


180 pcs/min

Width of Paper roll

320-930 mm


Paper weight


60-160 g/m


Total Power

15Kw


Length of Bag


270-500 mm


Max. Diameter of Paper Roll


ф1500 mm


Weight of Machine


Approx 6500 kg


Width of Bag


150-330 mm


Internal Diameter of Roll Core


ф76 mm


Overall Dimension


L 8800 mm × W 2500 mm × H 1900 mm



PRODUCTION RANGE SEPCIFICATIONS
MODE                                    SBR-330fPaper bag size range
A) With handle
Tube Length.....................….. 270 to 520 mm
Bag length .................................................................225 to 455 mm which not including the handle length
Bag Body Width ...................…..150 to 330 mm
Bottom width.........................80~180mm
Paper Thickness .......…............... 60to 160 gsm

B) Without handle
Tube Length.....................….. 270 to 520 mm
Bag length .................................................................225 to 475 mm
Bag Body Width ...................….. 150 to330
0 mm
Bottom Size.........................80~180mm
Paper Thickness .......…............... 60 to 160 gsm

Max. Paper Roll Diameter................. 1300mm
Max. Paper Roll Width............…......1300mm
Material Core Diameter ...............…3inch (76mm)
Max. Production Speed............….....100 Pieces/Min
Total Power........................30KW
Weight of Machine...................Approx 13000Kg
Overall Dimension..................…15000mmX2500mmX2000mm


B-6B-5B-1
