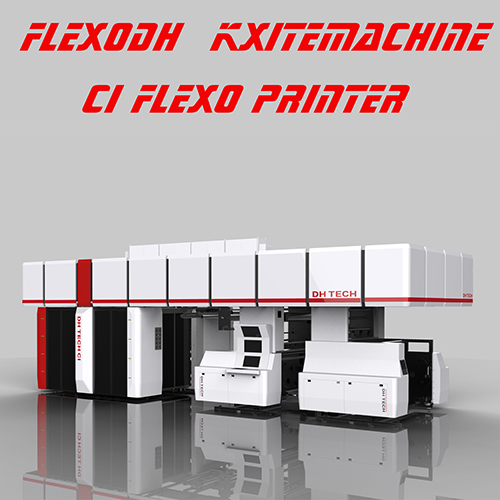

Why choose a full-servo central impression (CI) flexographic printing press?

Choosing a full-servo central impression (CI) flexographic printing press is essentially choosing a printing solution that deeply integrates "ultimate precision" with "intelligent efficiency." It represents the advanced level of current flexographic printing technology, with particularly outstanding advantages in the high-quality, high-efficiency packaging printing field.

Here is the English translation of your comparison table:

Extreme Registration Accuracy: The Foundation of Quality

The core advantage of a full-servo CI flexographic press stems from its revolutionary drive method.

Full-Servo Direct Drive Technology: Each printing unit is directly driven by an independent servo motor, forming a precise "electronic gear train." This completely replaces the mechanical long shafts and gearboxes found in traditional printing presses—components that are prone to wear and backlash—and eliminates registration inaccuracies caused by cumulative mechanical transmission errors. Mainstream models can achieve registration accuracy of ≤±0.1mm, while some high-end equipment can even reach ±0.05mm.

1-Micron Pressure Control: The full-servo system enables digital control of the pressure between the anilox roller, plate roller, and central impression cylinder, with accuracy down to 1 micron (0.001mm). This is critical for ensuring dot reproduction and color consistency when printing on thin, easily deformable materials.

⚙️ Intelligent Production Control: The Engine of Efficiency

Full-servo technology brings not only precision but also intelligence and simplicity to the production process.

One-Button Job Changeover & Process Recipes: The machine can store thousands of different job "recipes" like a computer. When switching production tasks, the operator simply recalls the corresponding recipe, and the machine automatically adjusts the positions, pressures, and registration parameters of each unit, enabling fast job changeovers.

Automated Pre-Registration: During the machine acceleration process, the system automatically completes initial registration, significantly reducing the time spent on manual adjustments and the amount of waste produced.

High Efficiency & Flexible Production Capacity: Competitiveness in the Market

Ultra-High-Speed Stable Production: Thanks to the high dynamic response of the servo system and the high-rigidity structure of the central impression cylinder, this type of equipment maintains stability even at very high speeds. Maximum mechanical speeds can reach 650 meters per minute, with typical printing speeds ranging from 300 to 600 meters per minute.

Broad Material Adaptability: The satellite structure (where all color stations are arranged around a large central drum) is inherently well-suited for handling easily stretchable film materials such as PE and BOPP. Combined with full-servo control, it can stably process a wide variety of materials, ranging from paper, paperboard, and non-woven fabrics to various flexible packaging films.

Easy Operation & Maintenance: Human-Centered Design

Sleeve Technology: Plate rollers and anilox rollers commonly feature a lightweight sleeve design that allows for quick changes without any tools, greatly reducing the physical strain on operators.

Modular Assembly & In-House Processes: Manufacturers such as Changhong have improved the long-term stability and maintainability of their equipment through in-house development of core components (e.g., large cylinders, Mira valves) and standardized assembly processes.

Environmental Protection & Energy Saving: An Imperative for Sustainable Development

Source Emission Reduction: The equipment is perfectly compatible with eco-friendly solutions such as water-based inks and LED-UV curing. Compared to traditional hot-air drying, LED-UV technology can save over 60% in energy, and the inks used have zero VOC emissions. The enclosed doctor blade system also reduces fugitive emissions when using solvent-based inks.

Energy-Saving Design: The optimized drying oven design utilizes heat energy more efficiently, further reducing energy consumption.

Summary

By combining the stability of the "satellite (central impression) structure" with the precision and intelligence of "full-servo drive," the full-servo CI flexographic printing press perfectly responds to the four major demands of today's packaging printing market: high quality, high efficiency, high flexibility, and high environmental sustainability.

It not only enables printing companies to produce high-end packaging comparable to gravure quality at lower cost and with less waste, but it is also an ideal choice for companies moving toward automated and intelligent production, ready to face fierce future market competition.
