H-1

Machine Video

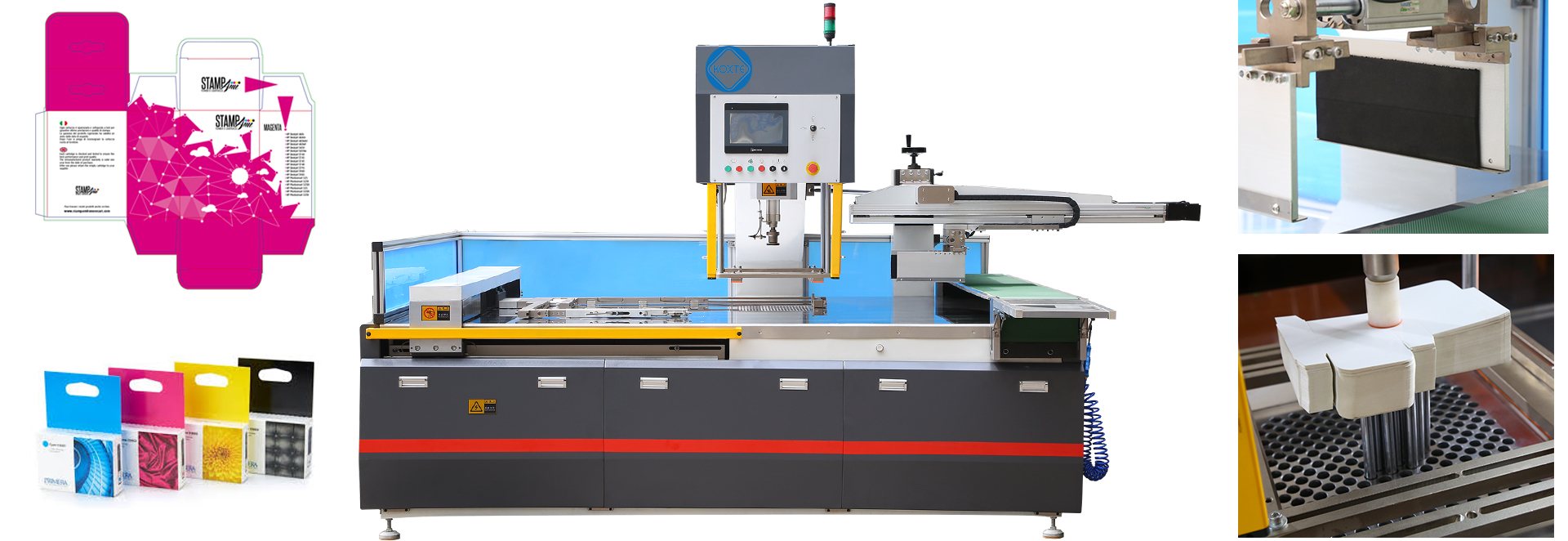

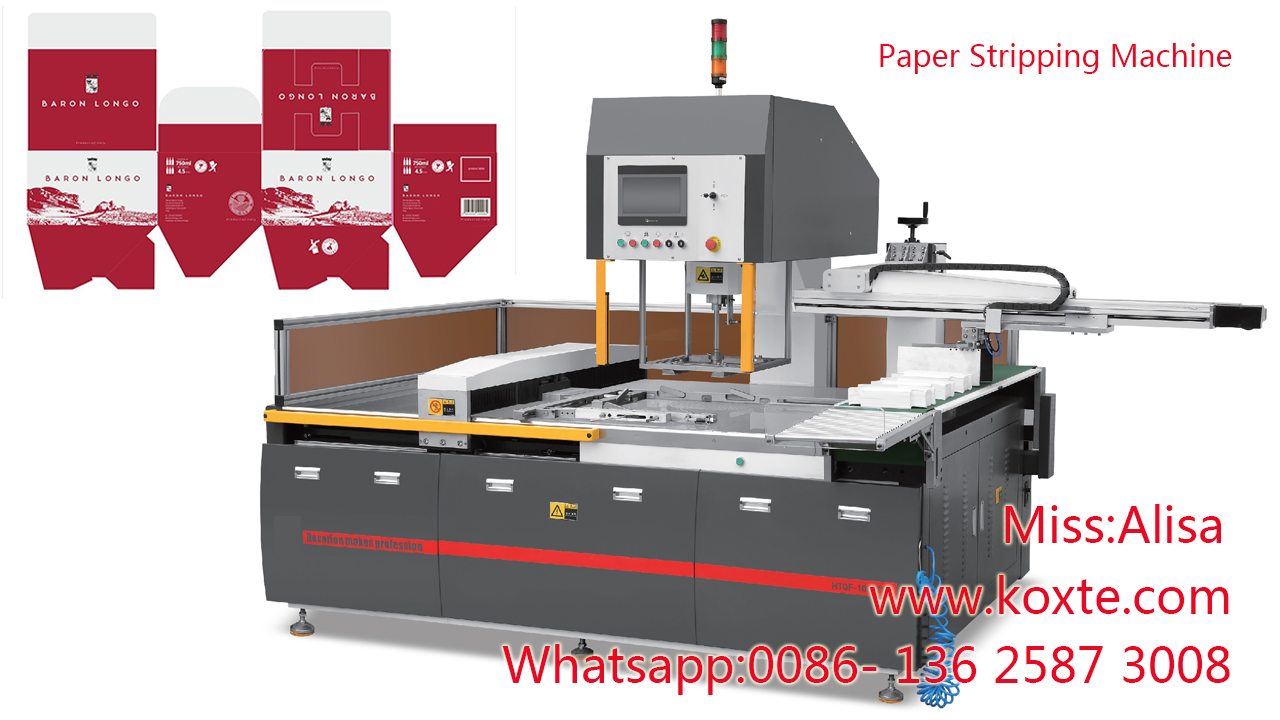

Paper Cup/Box Stripping Machine

Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency of die-cutting products in paper or plastic materials. It applies to print & pack industrial, post-press, after paper creasing and die cutting.This stripper machine make your scrap removal efficient after the die-cutting process. The die-cut strip machine applies to the production lines of hang tags, paper box, paper cup, food box, plastic box, and so on.

Properties and Uses

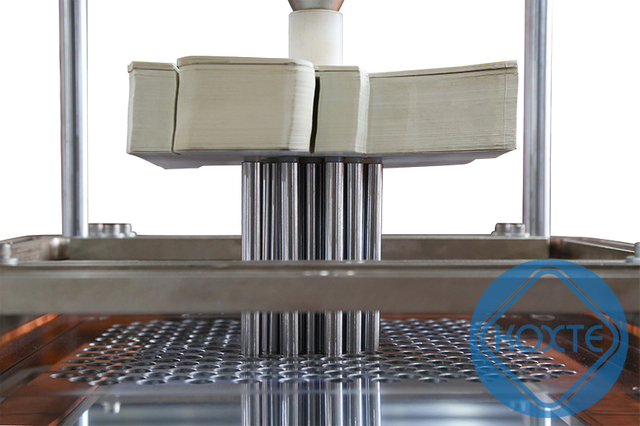

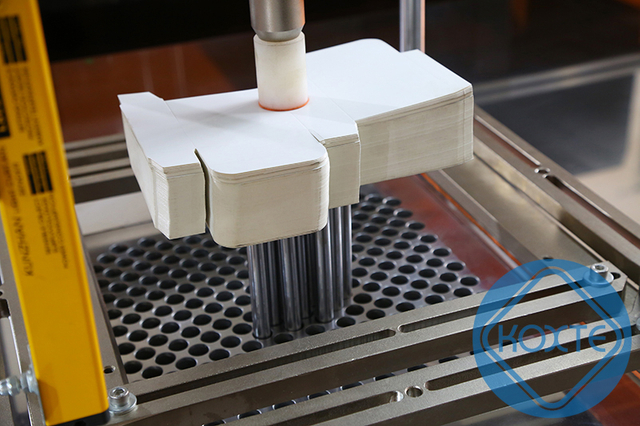

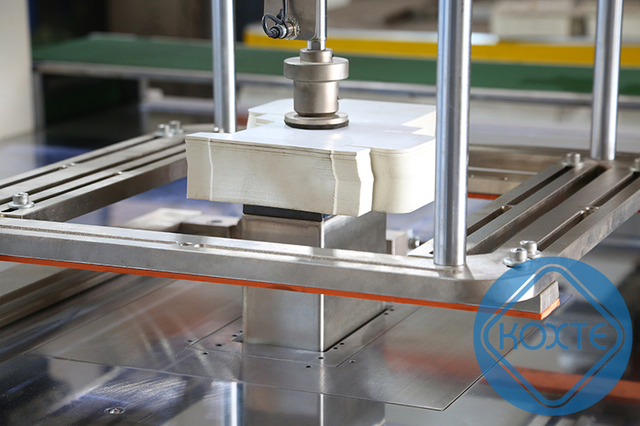

1. Taking out finished products after die cutting process.
2. Applied for many die cut products such as labels, hang tags, business cards, gift boxes, food boxes, paper cups and other die cutting products in paper or plastic, PU leather.
3. Automatically taking out with manipulator arm to stack product onto delivery belt.

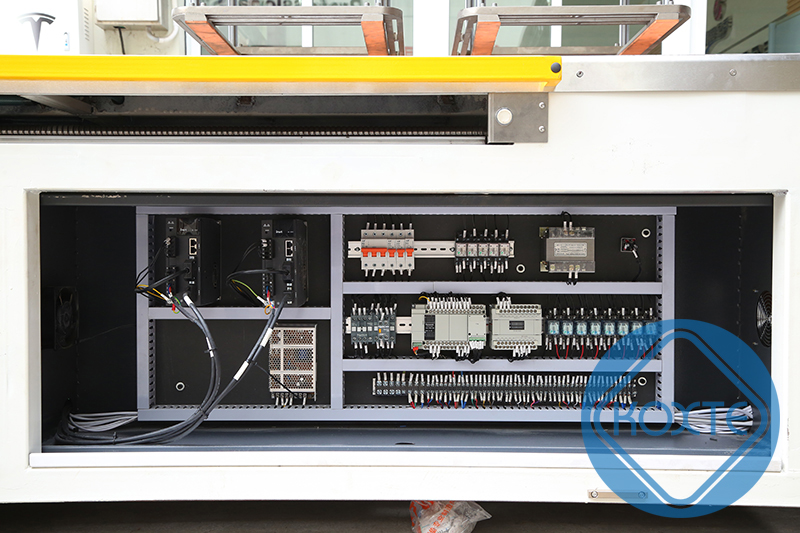

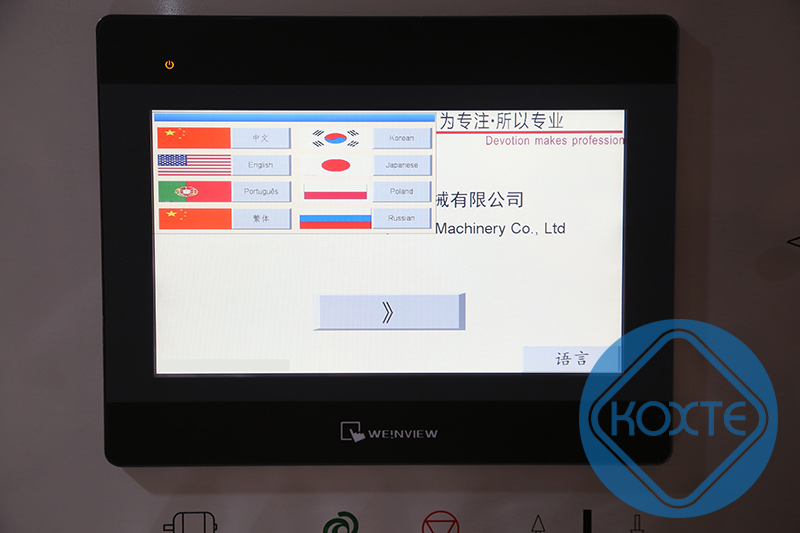

4. PLC controlled with smart & easy operation.

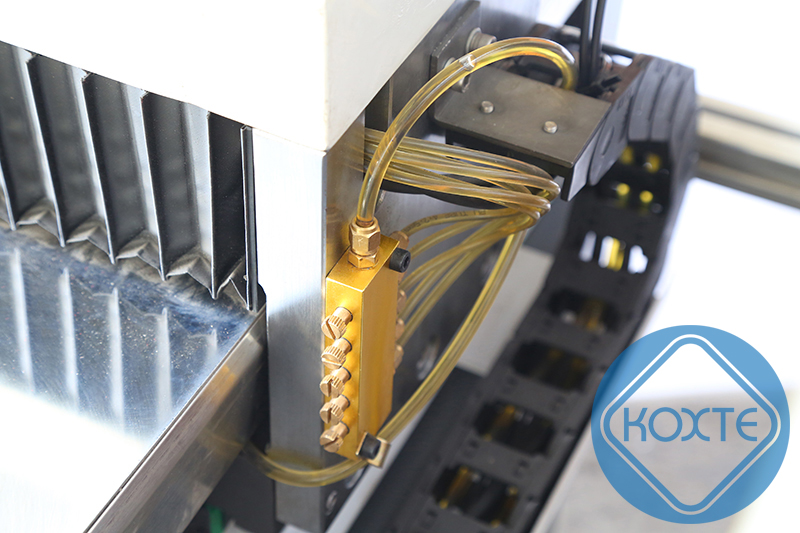

5. Automatic lubrication system for machine better maintenance.
6. Different shapes can be custom-made as customer requirement.

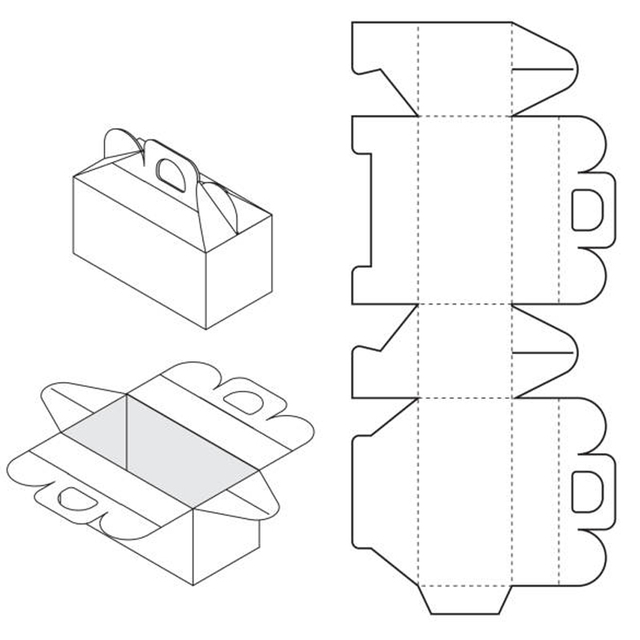

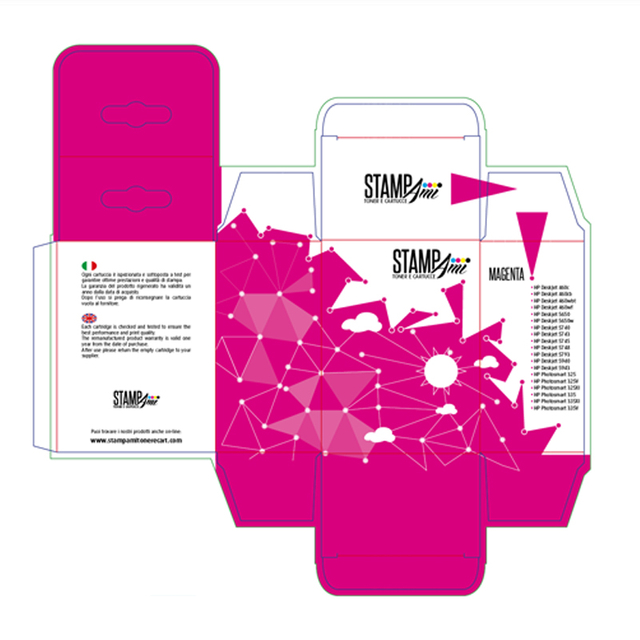

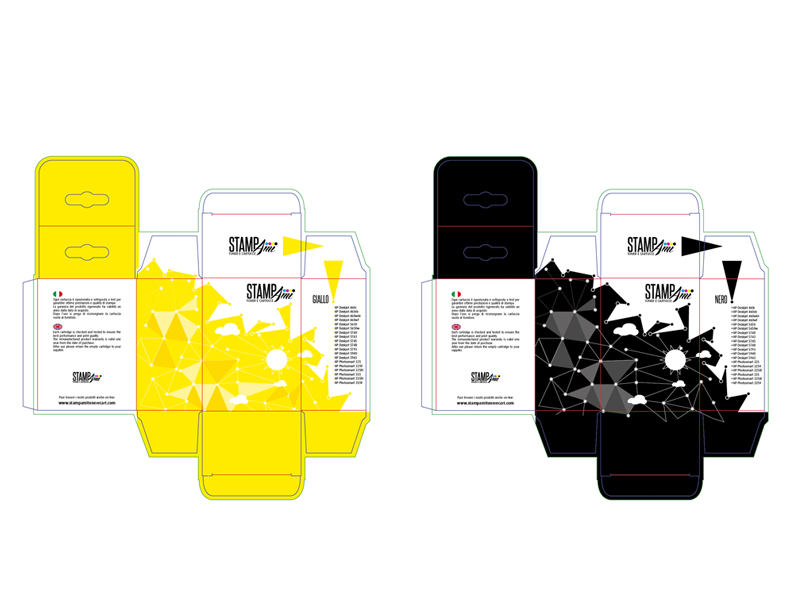

Paper Box/Cup Samples

More >>

Technical   Parameter

Model QDQF-680R QDQF-920R QDQF-1080R
Machine Size L2600xW1400xH1950 L3100xW1800xH1950 L3600xW2050xH1950
Max sheet size (X x Y) mm 680 x 480 920 x 680 1080 x 780
Min sheet size (X x Y) mm 400 x 300 550 x 400 650 x 450
Max pile height mm 100 100 100
Min pile height mm 40 40 40
Work table height mm 850 850 850
Max product size to be punched out 230 x 230 360 x 360 390 x 390
Min. product size to be punched out 30*30 30*30 30*30
Stripping speed times/min 15-22 15-22 15-22
Max. force (bar) 70 70 70
Air consumption L/min 4 4 4
Manipulator Grip Range 30-180mm 30-260mm 30-300mm
Manipulator Grip Weight 50-1200g 50-1500g 50-1800g
Max Power 4.6kw 380V 4.6kw 380V 4.6kw 380V
Net Weight 1.7T 2.1T 2.5T
Package Size 2100x1500x2200 2700x1950x2250 3100x2250x2250
Gross Weight 2.0T 2.45T 2.9T

More Products

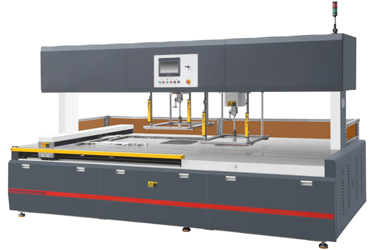

HTQF-920B/1080B Stripping Machine

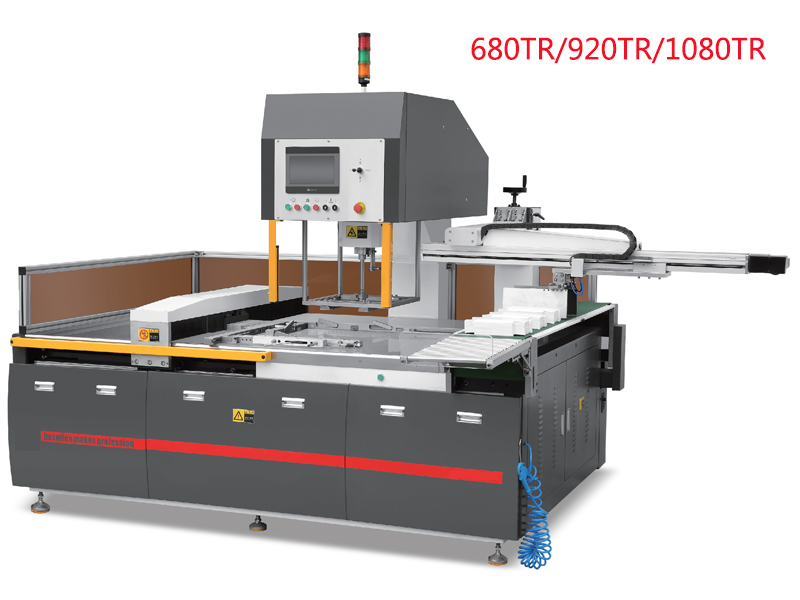

HTQF-680TR/920TR/1080TR Stripping machine
