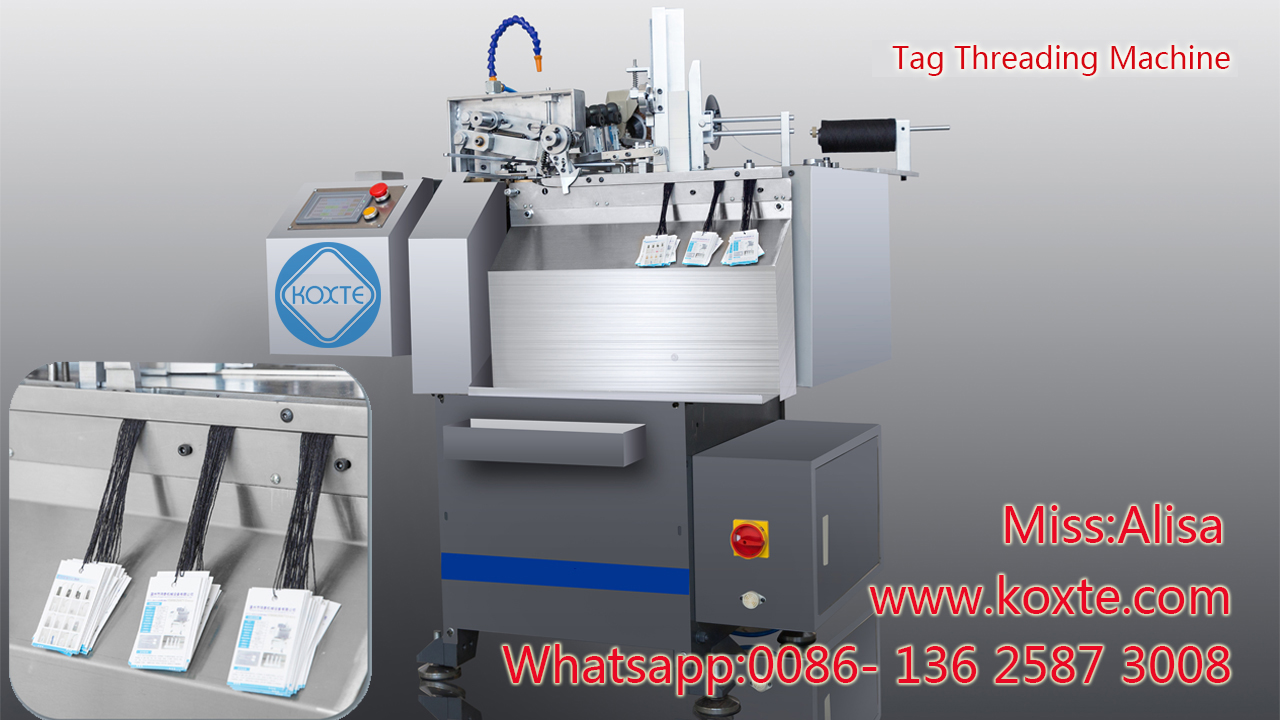

Tag Threading Machine

This high speed automatic hang tag elastic string knot tying machine is specifically designed from Japan and Korea hang tags and hag cards. It is cold cutting for elastic string. For example: rubber string etc. And it is professional for elastic string knot tying by full automatic.

It can adopts PLC control or button press. It is with high speed, stable running and easy to operate. The products which made from this machine are perfect, uniform and good quality. It is professional machine for elastic string knot tying. This machine is our Patented product in China.

Advice Your Requirements

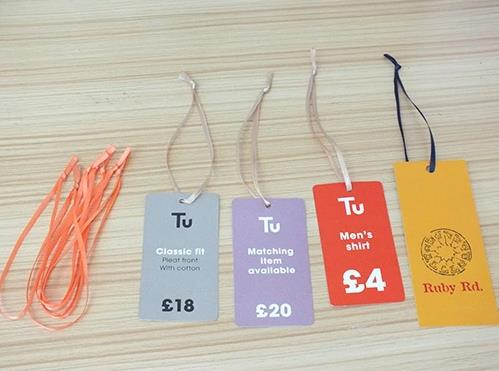

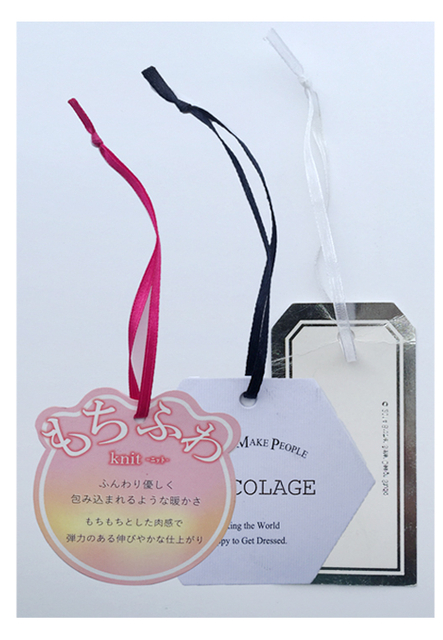

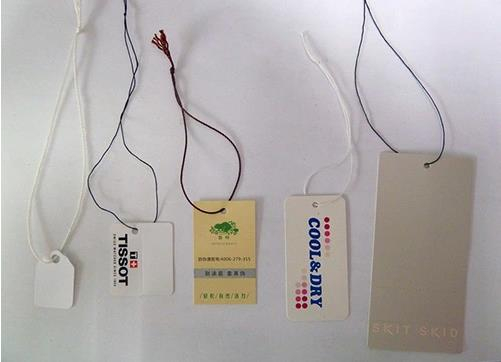

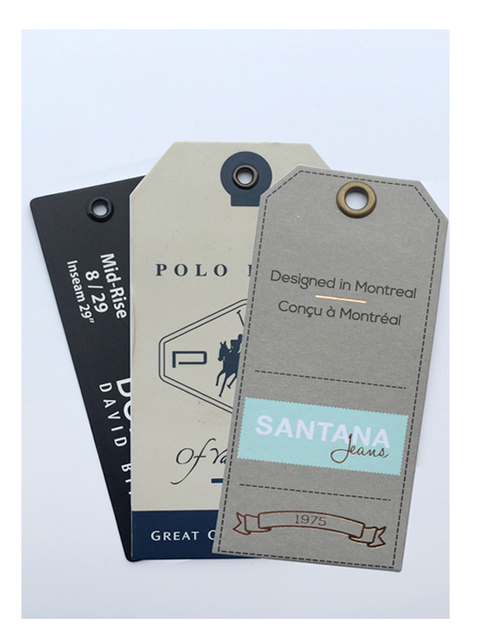

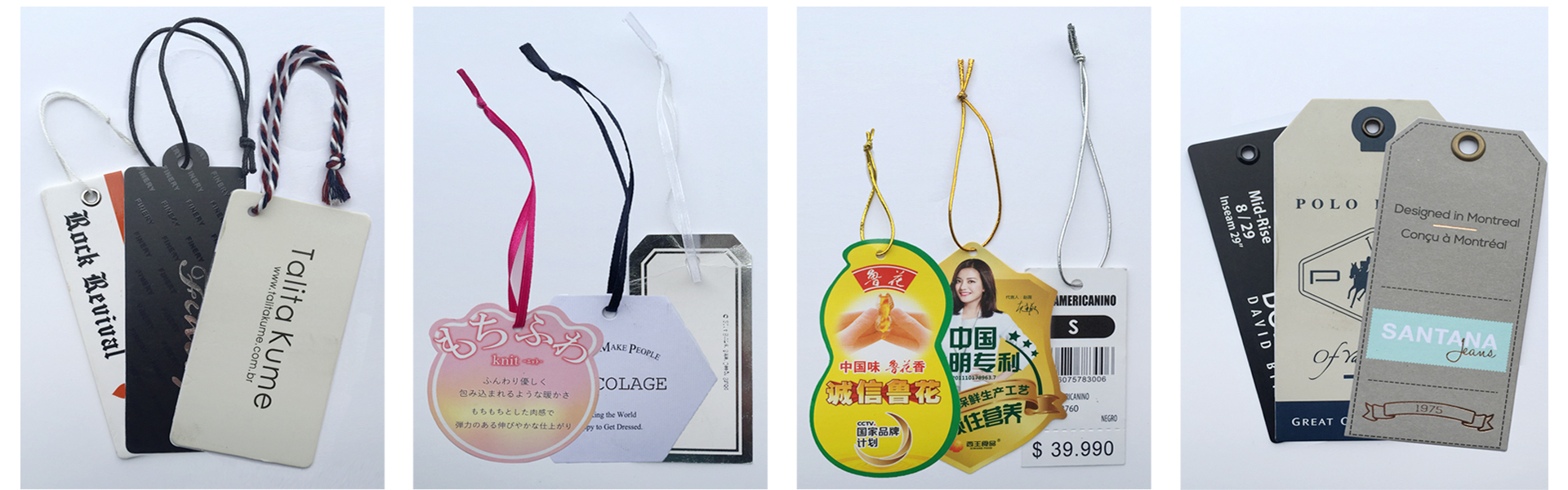

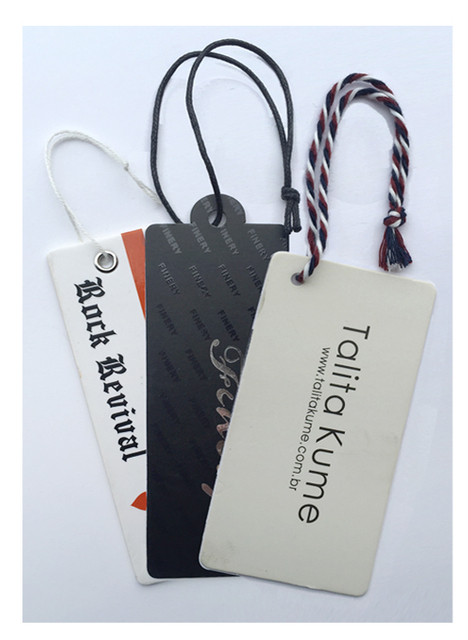

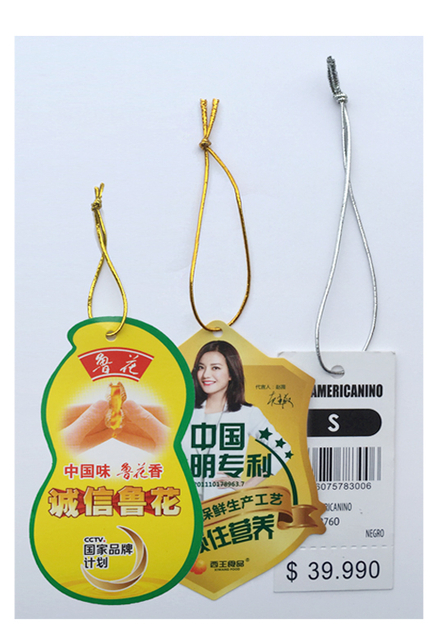

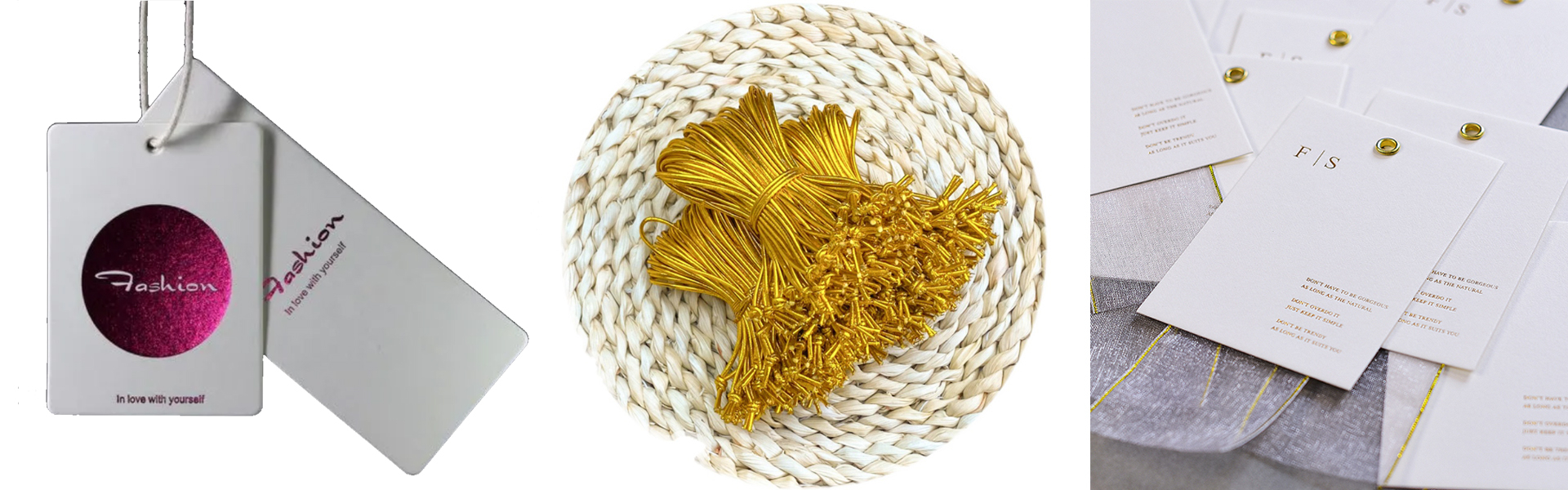

Hangtag Sample

Properties And Uses

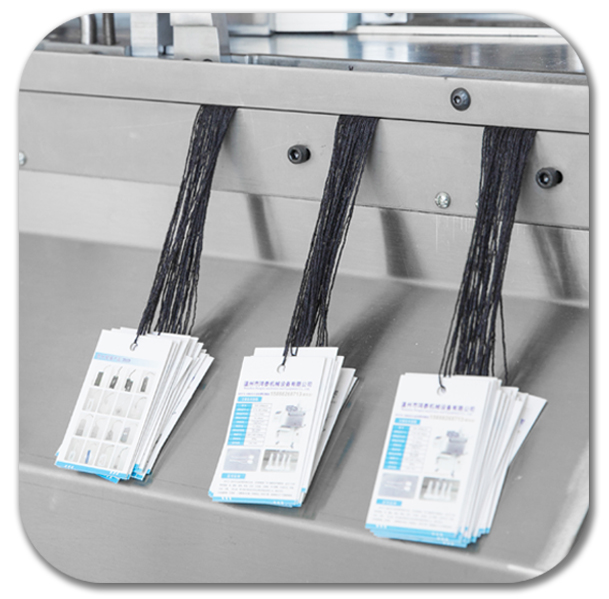

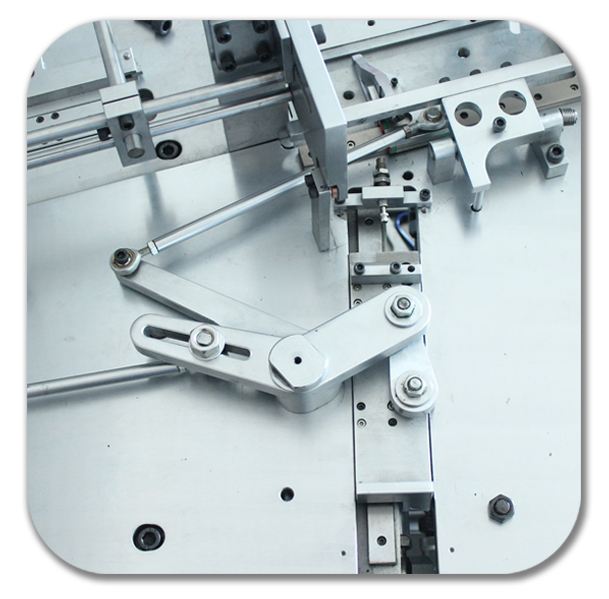

It is our newest high speed automatic hangtag thread machine. thread can be worn, and it can be done eagerly function. It adopts Imported ceramic accessories. Solve the heating effect can be long-term use, the market using different heating tube heating, replace the heating tube is still quite cumbersome time-consuming and unstable. Ceramic is not the same, it is stable. Our machines are through our professional R & D team, after several practice tests and independent design and development. Actual operating performance is very good! The PLC adopts Japan's Mitsubishi and Taiwan's weinview touch screen. So the machine quality is high.

Main Technical Parameters

	Cold Cut Stringing Machine	Hot Cut Stringing Machine	Elastic Stringing Machine	Eyelet Machine
Model	KXT-180	KXT-180H	KXT-180T	KXT-180J
Speed	3500-6000pcs/h	3000-4000pcs/h	2500-4000pcs/h	4000/6000pcs/h
Hangtags Size	1520-80180mm	1520-80180mm	1520-80180mm	2020-80180mm
Threading line Diameter	0.3-4.0mm	0.3-4.0mm	0.3-2.0mm	/
Threading line length	70-180mm	70-180mm	50-150mm	/
Hole Diameter	3-5mm Can Be Customized	3-5mm Can Be Customized	3-5mm Can Be Customized	3-5mm Can Be Customized
Threading Line Tail Length	10-20mm	10-20mm	6-12mm	/
Hangtags thickness	100-1200g Can Be Custonized	100-1200g Can Be Custonized	100-1200g Can Be Custonized	100-1200g Can Be Custonized
Machine Size	110011001200mm	110011001200mm	110011001200mm	8008001400mm
Machine Weight	600KG	600KG	600KG	450KG
Voltage	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ
Power	750W	1000W	1000W	1000W
