Automatic Wrapping express Packing Kraft Paper Forming Cutting Honeycomb Paper Making Machine

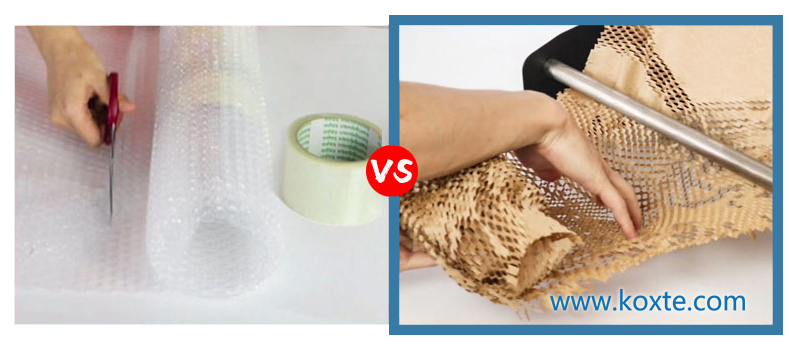

Honeycomb paper is eco-friendly and cost effective alternative for plastic bubble wrap cushioning.It is easy to stretch,more soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers,ceramics,glassware,etc.

Machine features

1. This machine is suitable for die cutting honeycomb paper,wrapping paper, shock-absorbing paper, kraft paper,fish net paper from 70g to 100g.

2. The unwinding,cutting and rewinding in one process.
3. Main motor equipped with Inverter for speed regulation.
4. Automatic ultrasonic web guide controller for unwinding.
5. Tension controlled by magnetic powder brake and clutch.
6. Automatic meter counting device,automatically stop after it reaches the length you set.
7. Pneumatic cylinder to control the cutting mould up and down.
8. Roll to sheet cutting is optional.(can match our paper wrapper)

Model	KXT-FW600
Max.width of mother roll	500mm
Max.diameter of mother roll	1200mm
Max.diameter of finished roll	300mm
Paper Core diameter(Rewind and unwind)	1"/1.5"/2"/3" in rewinder and 3inch(76mm) in unwinder
Cutting Speed	80m/min
Total power	6kw
Gross weight	1000kg
Overall dimensions	2600x1650x1150mm

Sample:
