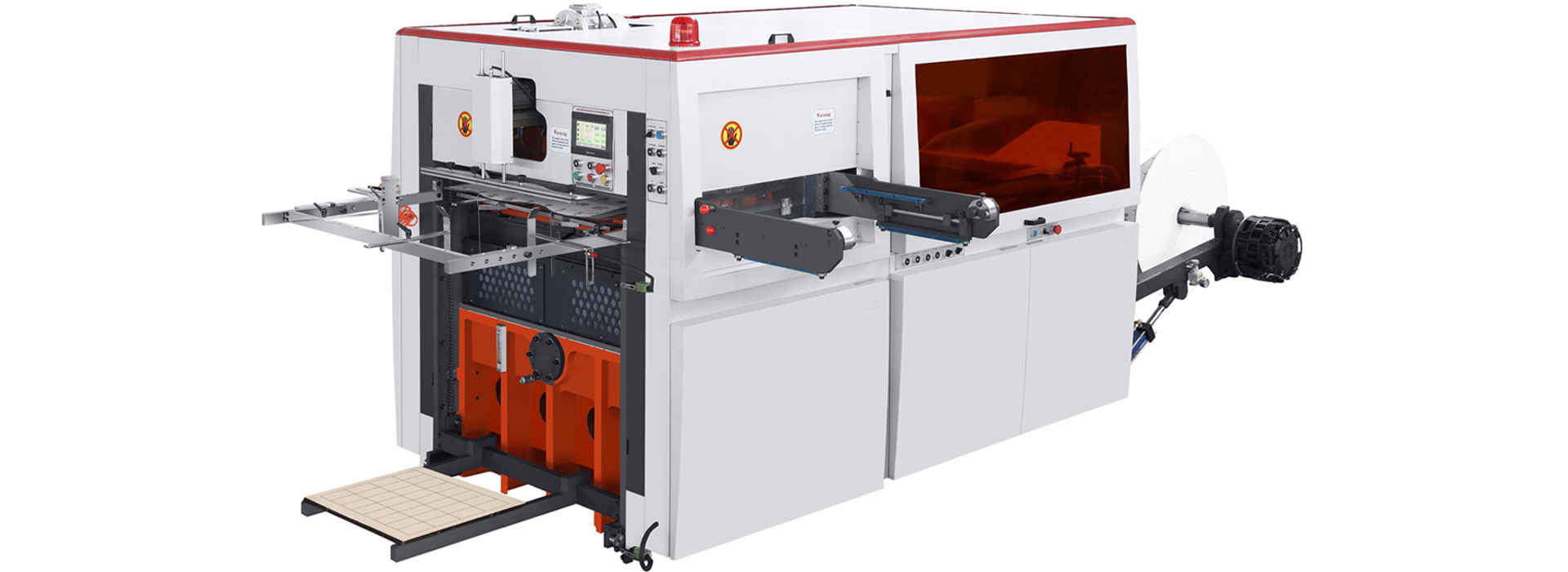

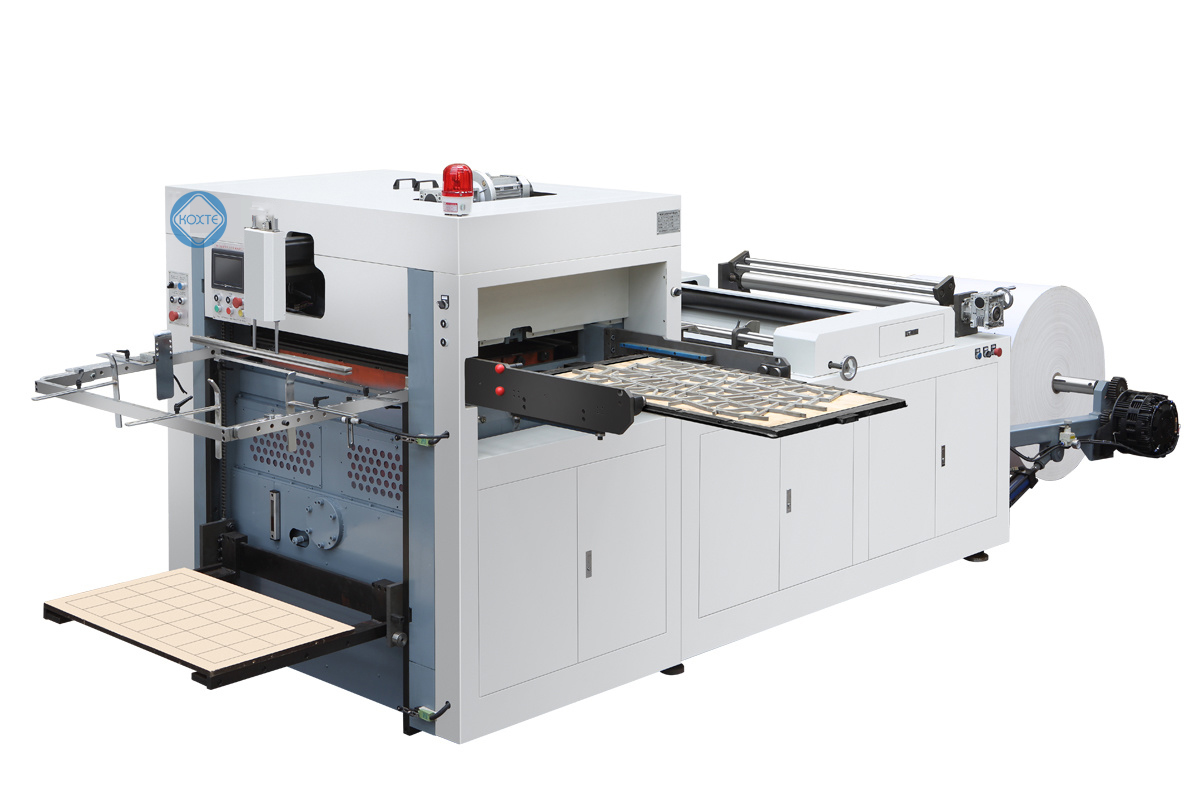

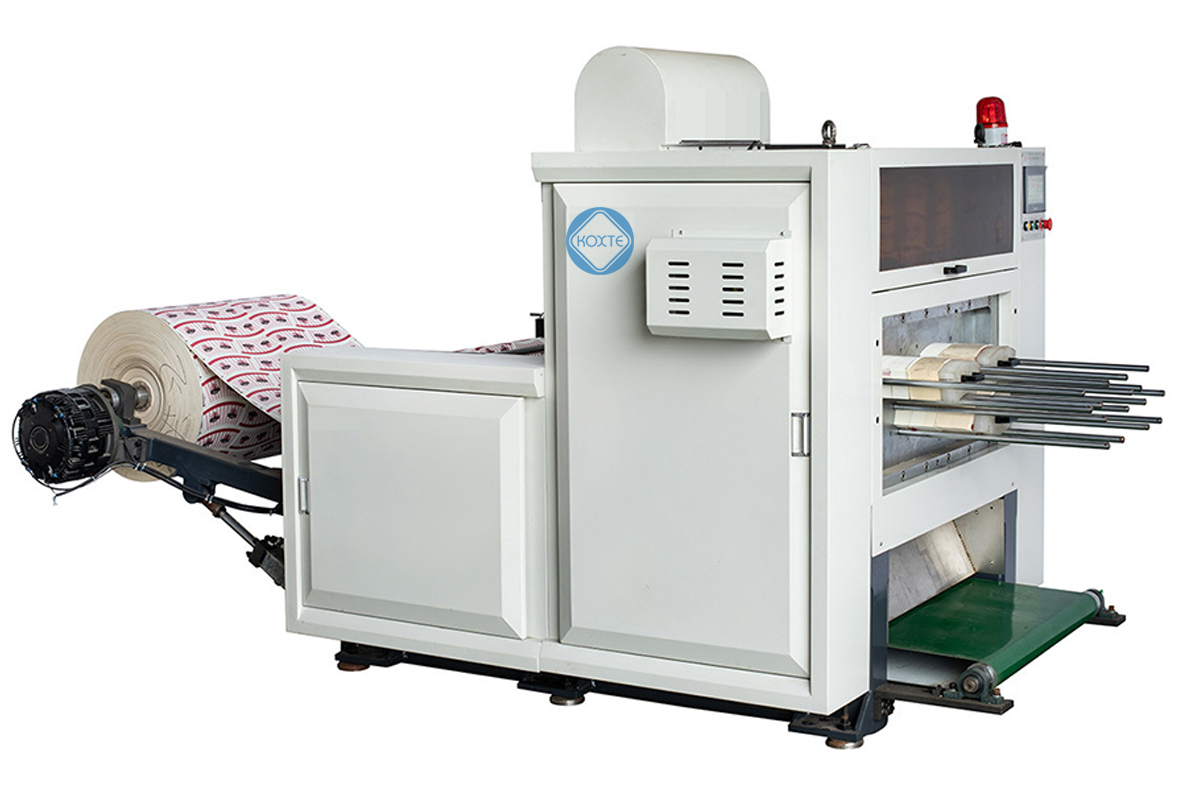

Automatic roll die cutting machine based on international advanced technology, has a high stability, high safety performance, high precision of the finished product, it’s widely used in paper packaging, such as paper box and so on. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic cluth, centralized oil lubrication, overload protection and distinctive gearing.  So it gurantees smooth operations of returning paper and feeding paper, precise positioning and oderly withdrawing. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, saftey and reliability.

Model	970x550(640)	Z1080x640	Z1200x640	Z1400x780	Customized
Max Cutting Area	940x520mm(610)	1050x610mm	1160x610mm	1350x750mm
Max Paper Widht	950mm	1060mm	1180mm	1380mm
Cutting Precision	±0.10-0.2mm
Paper Gram Weight	120-400g/㎡ / 120-600g/㎡	120-600g/㎡
Production Capacity	100-180 times/min			80-130 times/min
Air Pressure Requirement	0.6Mpa
Air Pressure Consumption	0.25m³/min
Max Cutting Pressure	150T/280T	280T
Max Roller Diameter	1600mm
Stable Running Power	11KW	11KW	14KW	14KW
