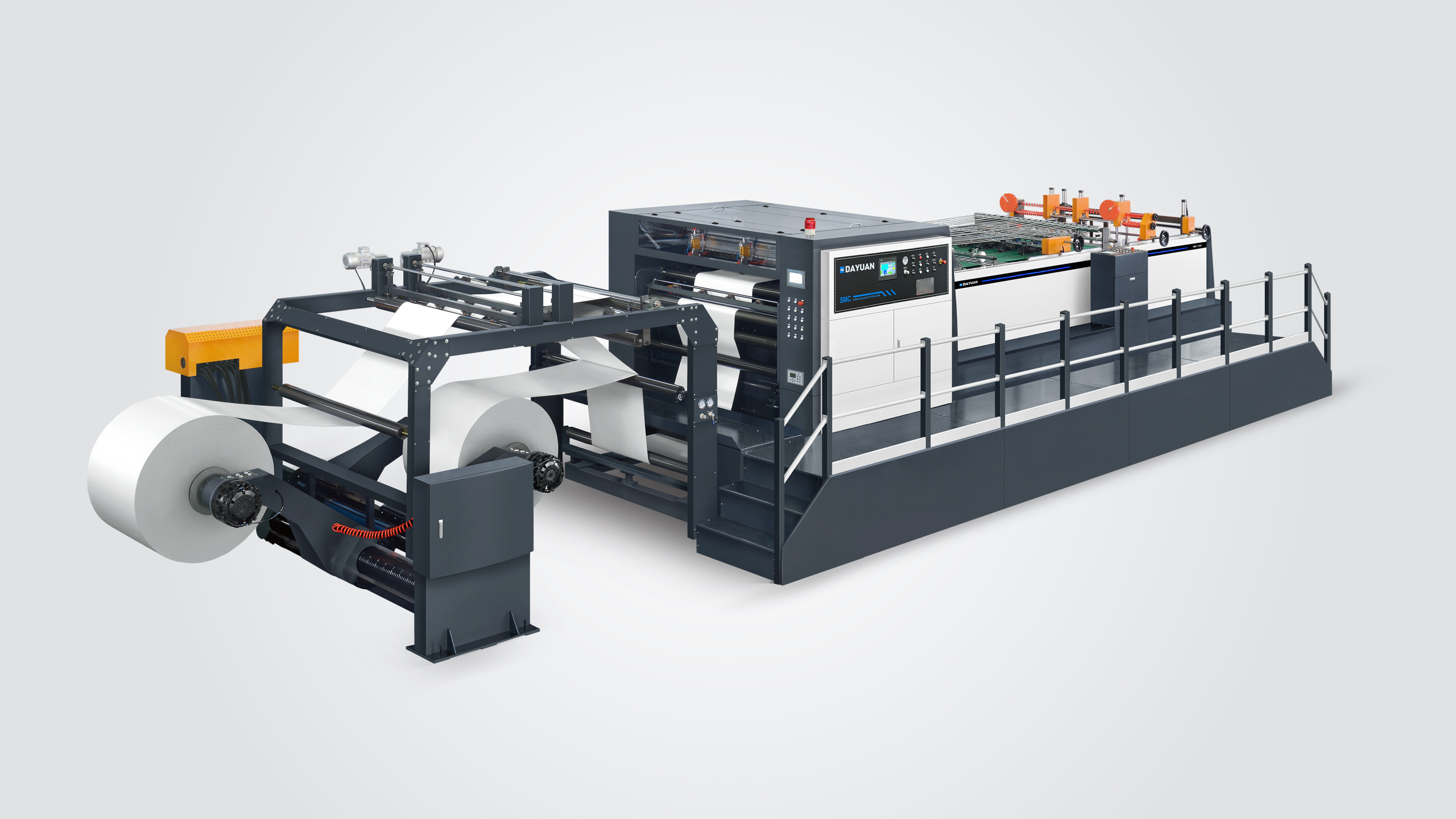

This machine is suitable for cutting the large coil packaging material, such as the paper, paper plastic complex material and color printing complex material, etc. This machine is widely used for application in the industries of paper processing and printing packaging.
Application range:
The machine is suitable for cutting in longitudinal direction and cross direction the colied materials like paper, trademarks, cigarette labels, wall calendars, spirits boxes, playing cards, paper-plastic compound materials, etc.
Function: Transverse cutting with flat blade, automatic feeding, automatic stowing and photoelectric tracking.
Model | SMC-1900 |
Model of cutting paper | Double rotary sheeter |
Thickness of cutting paper | 80-1000GSM |
Cutting length range | 450-1650mm |
The format of slitting | 2 sheet(Optional) |
Cutting precision | Cutting length≤1000mm: ±0.1mm |
Max. cutting meter speed | 300 m/min |
Max. cutting speed | 385 cuts/min |
Max. scroll diameter | 1800mm |
Max. paper cutting width | 1900(75”)mm |
Max. paper piling height | 1600mm |
The request for air compressor | 0.8Mpa |
Power consumption | 380V/220VⅩ50Hz |
Gross weight | 28000kgs |
Full-load power | 106kw |
