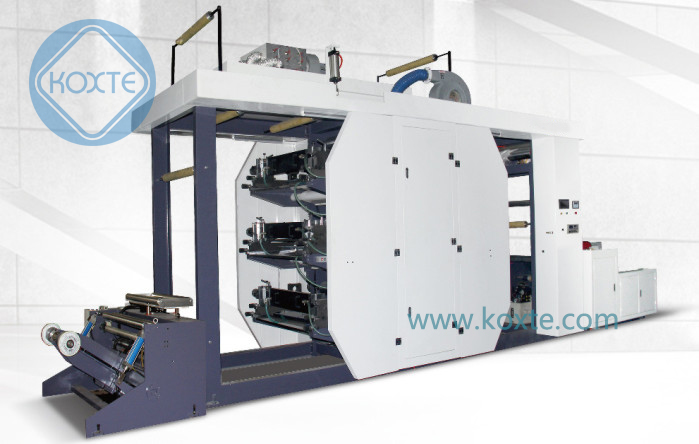

High Speed 6 Colors Kraft Paper Bags Flexographic Printing Machine

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Main Feature:
1. Easy operation, flexible starting, accuate colour register
2. The meter couter can set printing quantity according to thr requirements.
    Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with enven ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speed.
8. There are Inching/Stopping buttons on the plate roller base and material rolling rack,

    so as to make it easy operate the machine when the plate is installed.

Model	ZYT8-600	ZYT8-800	ZYT8-1000	ZYT8-1200
Max. Width of printing material	650mm	850mm	1050mm	1250mm
Max. Printing Width	560mm	760mm	960mm	1160mm
Printing cylinder way	Hydraulic control up and down
Mechanical speed	120m/min	120m/min	120m/min	120m/min
Printing speed	5-100m/min	5-100m/min	5-100m/min	5-100m/min
Printing length	7.5''- 40'' (190-1060mm)
Anilox roller	Metal：100-300LPI   Ceramic：200-800LPI
Register precision	Longitudinal：±0.20mm  Crosswise：±0.20mm
Unwind/ rewind dia.	φ400-1000mm	φ400-1000mm	φ400-1000mm	φ400-1000mm
Dry system	Electric heating
Machine weight	5000kg	5200kg	5500kg	5800kg
Machine power	35kw	38kw	40kw	42kw
Dimension（L*W*H）	5.5*1.6*(2.5+1.08) m	5.5*1.8*(2.5+1.08) m	5.5*2.0*(2.5+1.08) m	5.5*2.2*(2.5+1.08) m
