Views: 20 Author: Alisa Whatsapp:0086- 136 2587 3008 Publish Time: 2022-09-28 Origin: Site
Alisa Whatsapp:86-136 2587 3008
Email:alisa@kxite.com
www.kxote.com
1. The surface paper (Outside Kraft paper) and the inner side paper must be 110g/m² Kraft paper.

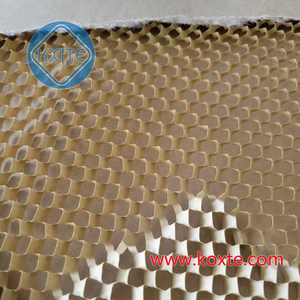

2. Because of the original honeycomb paper width is under 500mm, when making different size of bags, have to lap joint the redundant paper in the middle.
3. The glue for heat seal after folding can be provided by our company.
Brief Introduction:

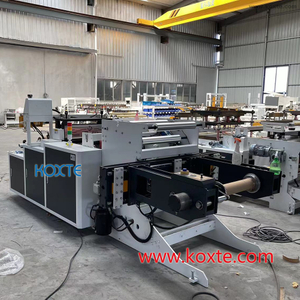

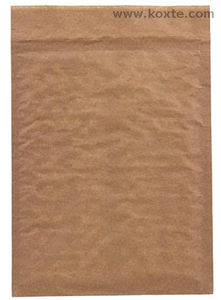

1. This machine is special designed for making bags which laminate the Kraft paper and Honeycomb paper by glue.

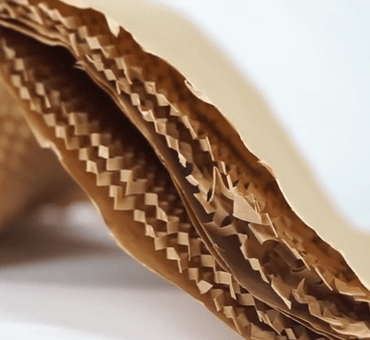

2. Bag making method: Fixed the Kraft paper and honeycomb paper (by stretching) into two layers of Kraft paper by fixed point glue spraying method, and then by, second gluing, folding and cutting into a environmentally cushion bag which used in express industry.
3. This machine uses multi point advanced motion controller technology. It is controlled by computer program from film unwinding to cutting. This machine is a high-quality, easy-operational and professional one to make good-looking a, durable and environment-friendly bags.
Suitable bags | profession0al designed for honeycomb cushion bags. |
Mechanical speed | 1000-1500pcs/hour(Note: the actual speed of making bags may differ according to the size of bags) |
Max width of bag (Height of bag) | One line: 550mm (including the envelope flap) Double line: 300mm (including the envelope flap) |
Maximum length of bag (width of bag) | 500mm |
Maximum width of unwinding | Kraft paper: 1200mmX2, honeycomb paper 500mmx4 |
Maximum diameter of unwinding | Kraft paper 1000mm, honeycomb paper 500mm |
Machine weight | 17000KGS |
Overall Dimension | 28500X2300X2400mm |
Power required | 60KW |
Voltage | 380V 50Hz Three Phase Five wire |
